System Conﬁguration

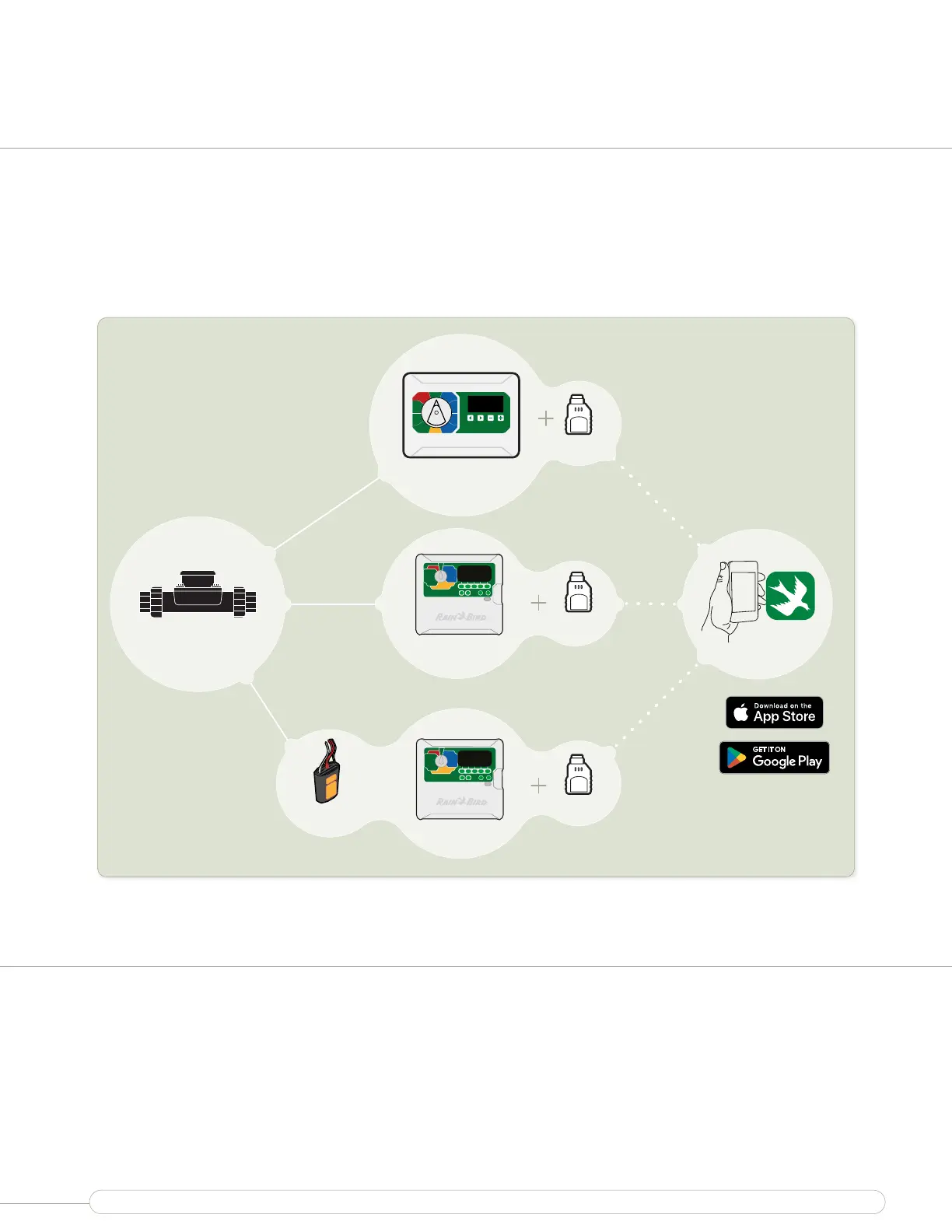

The FG100 Flow Sensor is intended to be installed with the Rain Bird ESP-

ME3 and ESP-LX controllers. Performance has not been conﬁrmed with

non-Rain Bird controllers. Additional functionality can be unlocked by pairing

a compatible controller with the LNK2 WiFi module and the Rain Bird App.

Rain Bird App

LNK2

ESP-LXME2PRO

LXIVMSEN

ESP-LXIVM

FG100

ESP-ME3/

ESP-2WIRE

LNK2 and Rain Bird App

Connect the FG100 to a controller equipped with the LNK2 WiFi Module

to remotely monitor system health and manage advanced flow seings

through the Rain Bird Mobile App.
