Mechanical Installation
Pick a Spot

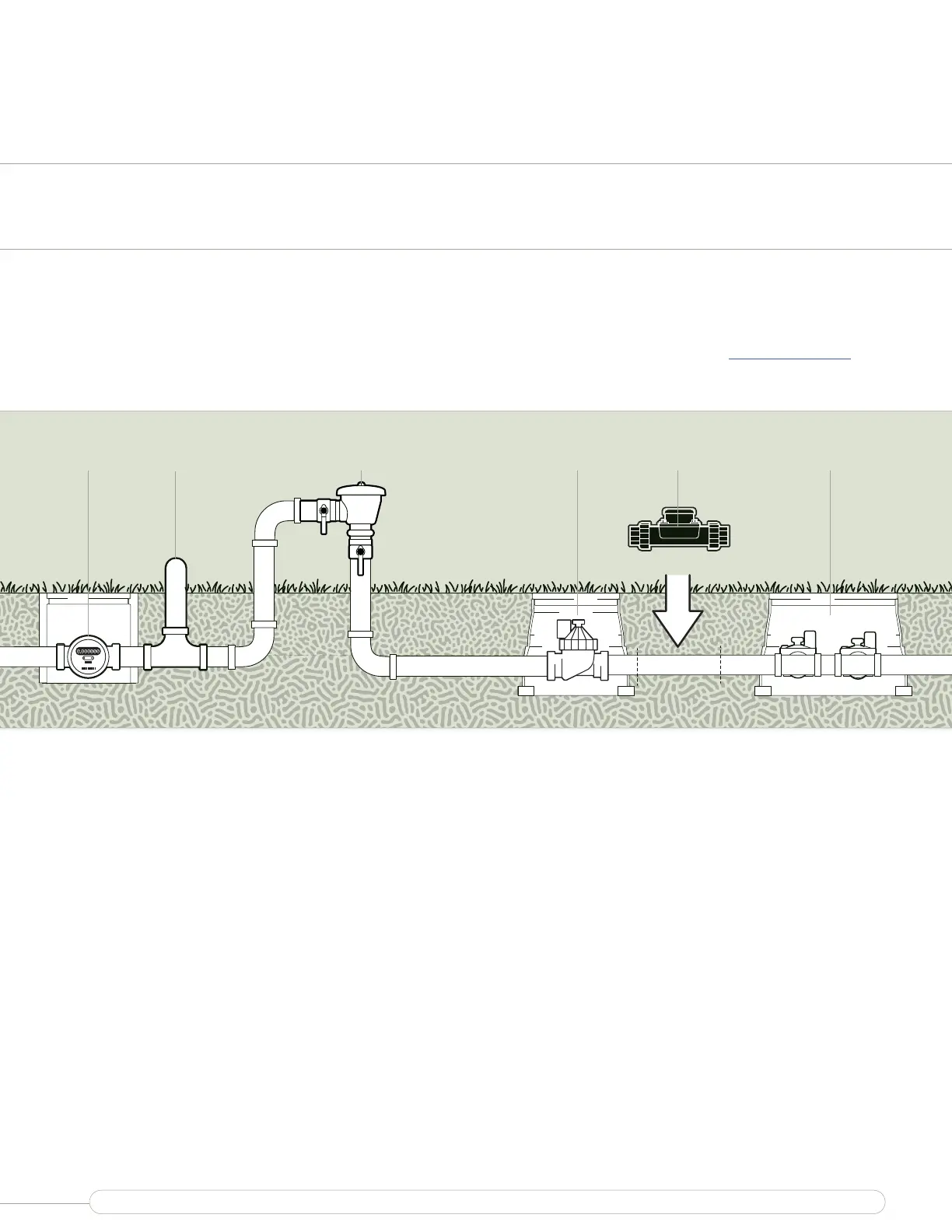

The flow sensor should be installed between the back-flow prevention
device and the first irrigation valve. The FG100 has no straight pipe
requirement meaning it can be installed immediately aer the master valve
in the same valve box.
Water
Meter
Master
Valve
FG100
Irrigation
station valves
Point of
connection
Back-flow
Prevention
