Rain elite 9 VDC - Electrical Connections

ENGLISH
RAIN s.p.a.
via Kennedy 38/40
20023 Cerro Maggiore
ITALY (MI)
20
OFF
SPA
OFF
OFF
OFF

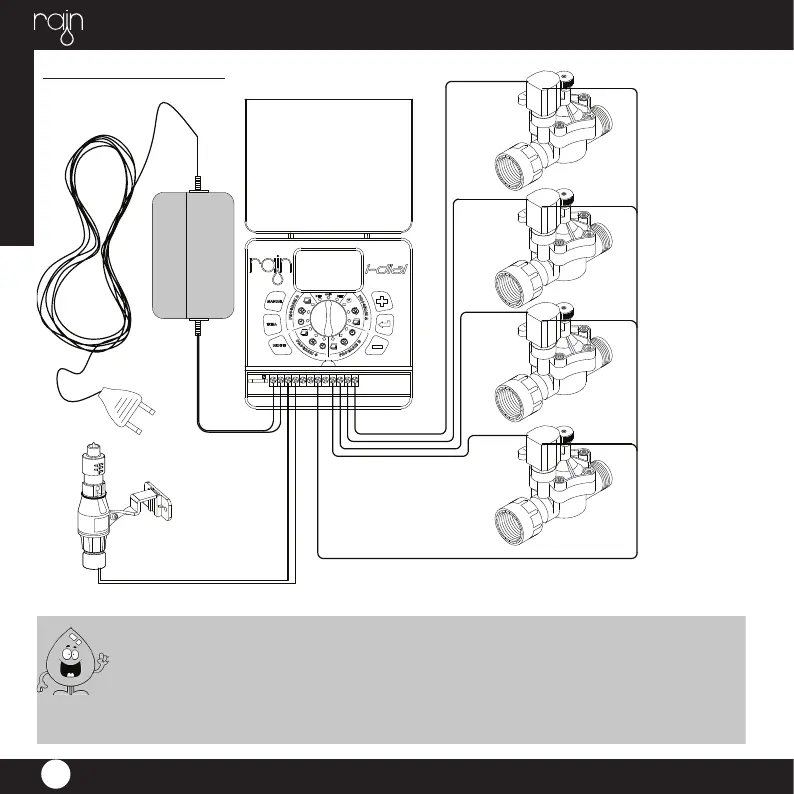

Each 9 VDC ELECTRIC VALVE has a black wire and other one red, the red wire identifi es the number
of the zone and will be connected to one of the outputs numbered in the terminal box and the black
wire is the common thread that will be connected to the output C in the terminal compartment
together with all common wires (wires blacks) of all the electric valves.
Connect wires of the sensor to the input SENSOR.
Electrical connections
