9. Install the Drain Line and Air Gap
(Air Gap Not Supplied)
• For all drain lines, use at least a 1/2 inch I.D. line.
• Connect the drain line to the drain outlet on back of the valve,
opposite the inlet connection (see figure 5). A fitting is require to
connect the female pipe thread to the drain line. Run the drain line
to the air gap.

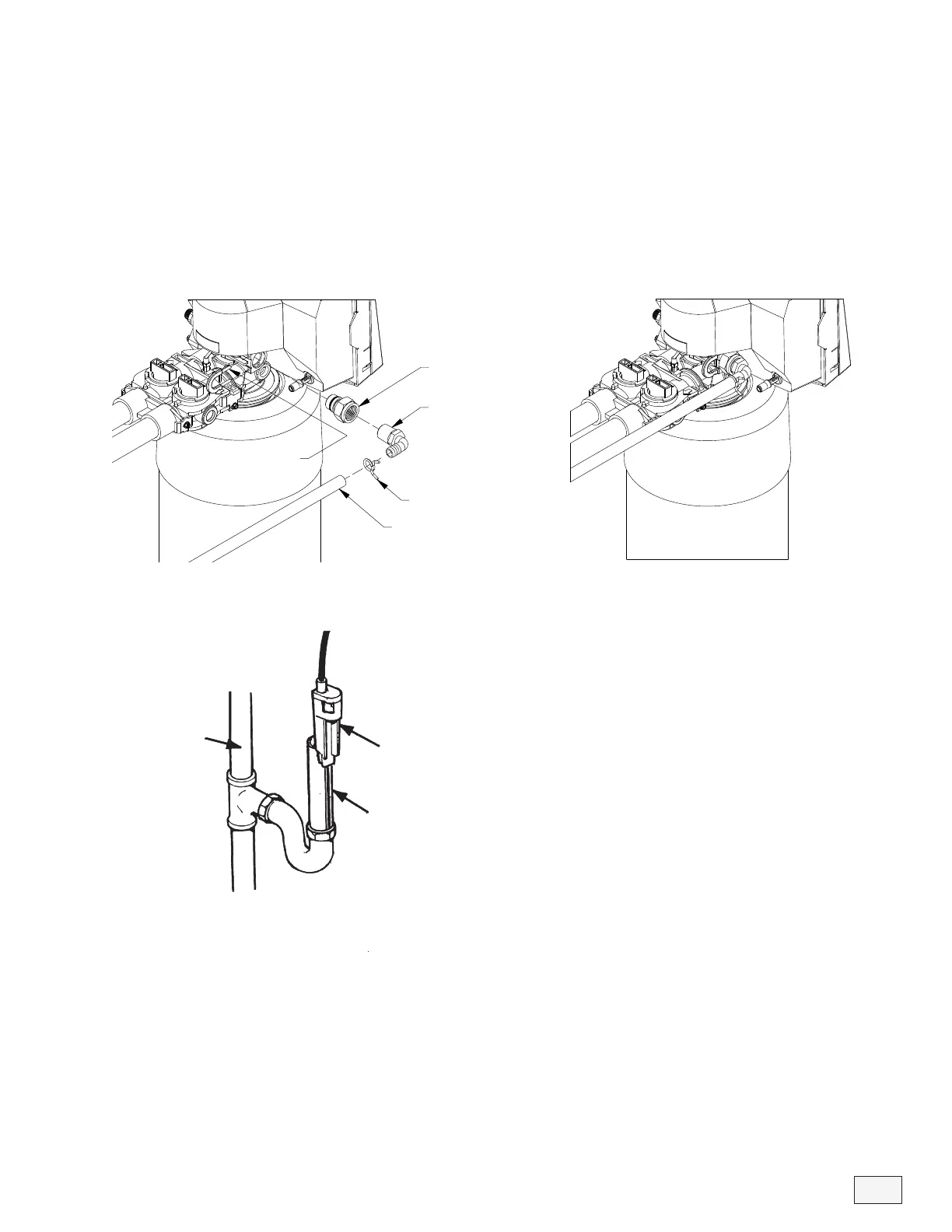

• The air gap should be installed between the end of the drain line
and the drain to prevent possible back siphoning (see figure 6).
11
Figure 5
"Mr. Drain"
AIR GAP
STAND PIPE
FOR
WASHER,
DRAIN
STACK
Figure 6
!
Important Note: The air gap
should be two times the diameter
of the drain line or a minimum of
two inches. Please check your
local plumbing codes to ensure
compliance.
Wrap PTFE Thread
Sealant Tape Around
1/2" NPT Elbow
1/2" DRAIN LINE
SPRING CLIP
DRAIN LINE
FLOW CTRL (DLFC)
DLFC CLIP
