Important Note for EC4-CAB
Models: The overflow elbow is
located on the back of the brine
tank (not shown).
Important Note: The brine
overflow line must not be higher
than the overflow elbow on the
brink tank. (This is a gravity
overflow.)
Overflow Line connection is
only used if brine valve fails.

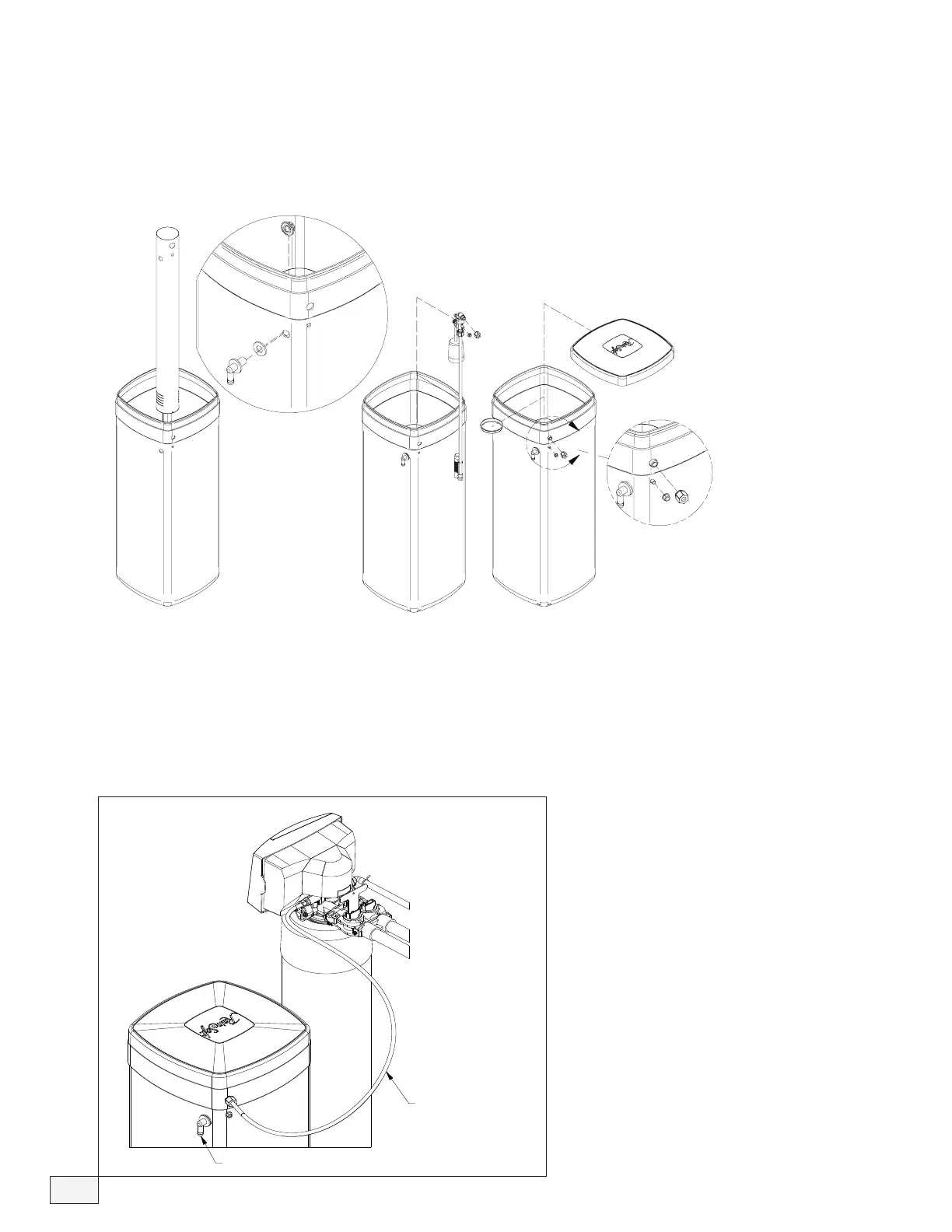

10. Install the Brine Safety Float
• Insert the brine well into the brine tank (see figure 7.1)
• Attach the brine well to the brine tank with the overflow elbow (see
figure 7.2).
• Insert the safety float into the brine well. The top of the safety float
should be about 5 inches from the overflow elbow (see figure 7.3).
11. Install the Brine Line
• Slide the brass compression nut over the end of the brine line,
followed by the ferrule and tube support. Attach the brine line
to the brass fitting on the right side of the valve (see figure 8).
• Insert a tube support into the other end of the brine line and push
the brine line into the brine safety float elbow. Use a locking clip
to secure the connection (see figure 8).
12
Important Note: Not Applicable
for EC4-CAB Models.
FIGURE
FIGURE 7.2
FIGURE 7.3
FIGURE 7.4
FIGURE 7.5
7.1
Figure 7
BRINE LINE
OVERFLOW LINE CONNECTION
Figure 8
Important Note: Systems 250
& 400 use a larger brine tank
than the one shown. “SS”
systems use a similar tank but
half the size of the one shown.
