Filament Run-out Sensor Installation Guide

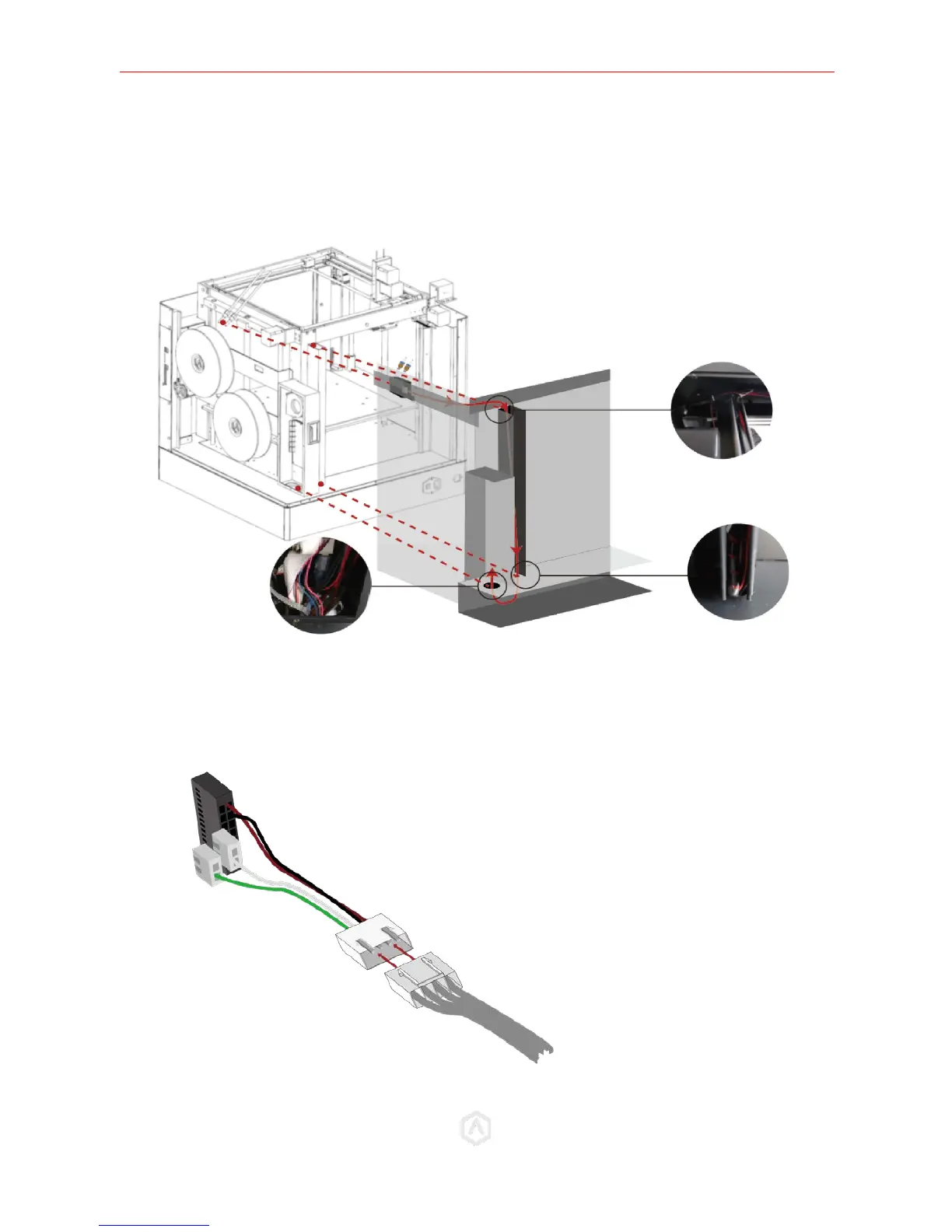

 Pass the white Filament Run-out Sensor cable through the wire path along the back side of the
machine.
 Feed the end of this cable down under the printer and loop the cable back up into the electrical
compartment.
.
Use the included adapter (C) to connect the Filament Run-Out Sensor to the motion controller board with
the 4-pin end.
