Filament Run-out Sensor Installation Guide

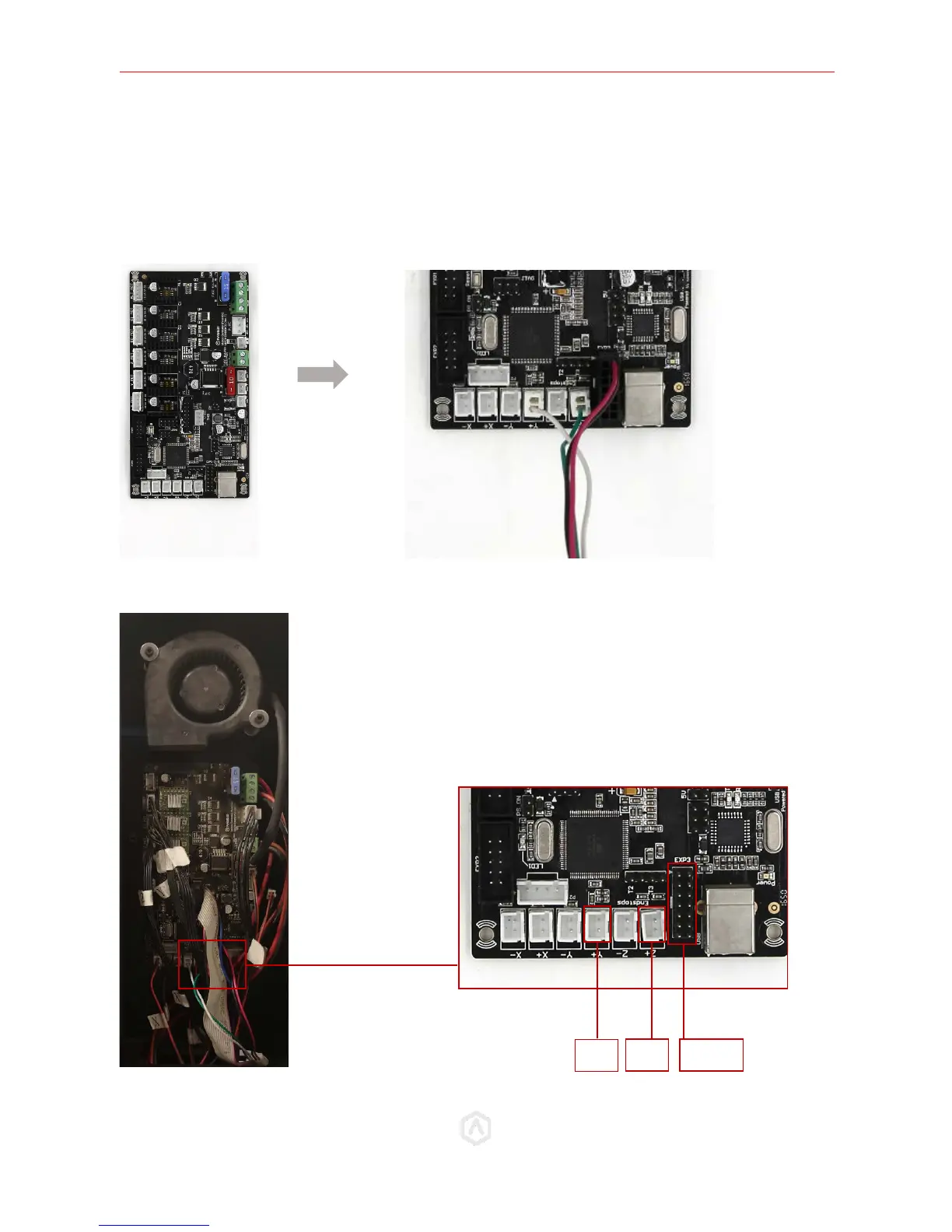

Attach the other three ends of the adapter onto the Motion Controller Board as shown in the following
pictures:
Red-black cable to EXP3 (slot on terminal face to right),
White Cable to Y+,
Green Cable to Z+.
Wiring complete:
Y+
Z+ EXP3
