Connector (RJ45)
EIA/TIA 568A
EIA/TIA 568B
PIN 5
White/Blue
White/Blue
PIN 6
Orange
Green
PIN 7
White/Brown
White/Brown
PIN 8
Brown
Brown
Both two RJ45 connectors of the 10/100/1000 Mbit/s straight-through cable follow
EIA/TIA568B standard wiring.

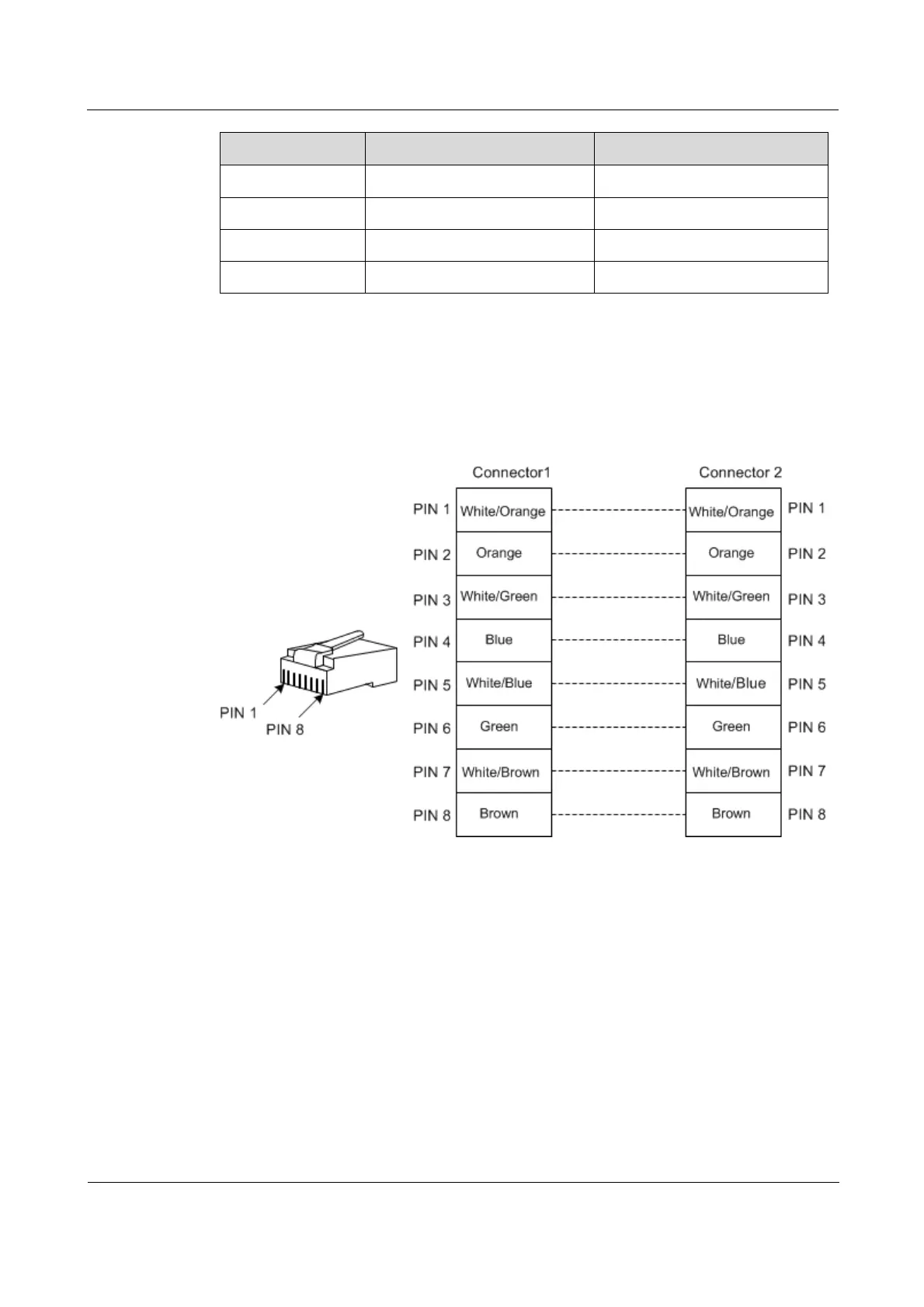

Figure 6-3 shows wiring of the 10/100/1000 Mbit/s straight-through cable.
Figure 6-3 Wiring of 10/100/1000 Mbit/s straight-through cable
Figure 6-4 shows wiring of the 100 Mbit/s crossover cable.

Raisecom ISCOM2624G-4GE-AC Specifications

General

Switching Capacity	56 Gbps
Forwarding Rate	41.7 Mpps
MAC Address Table	16K
VLANs	4K
Jumbo Frame	9K
Power Supply	AC 100-240V, 50/60Hz
Storage Temperature	-40°C to 70°C
Weight	3.5 kg
Product Type	Ethernet Switch
Layer	Layer 2+
Power Consumption	30W
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
Dimensions	440mm x 44mm
Ports	24 GE ports, 4 GE Combo ports
