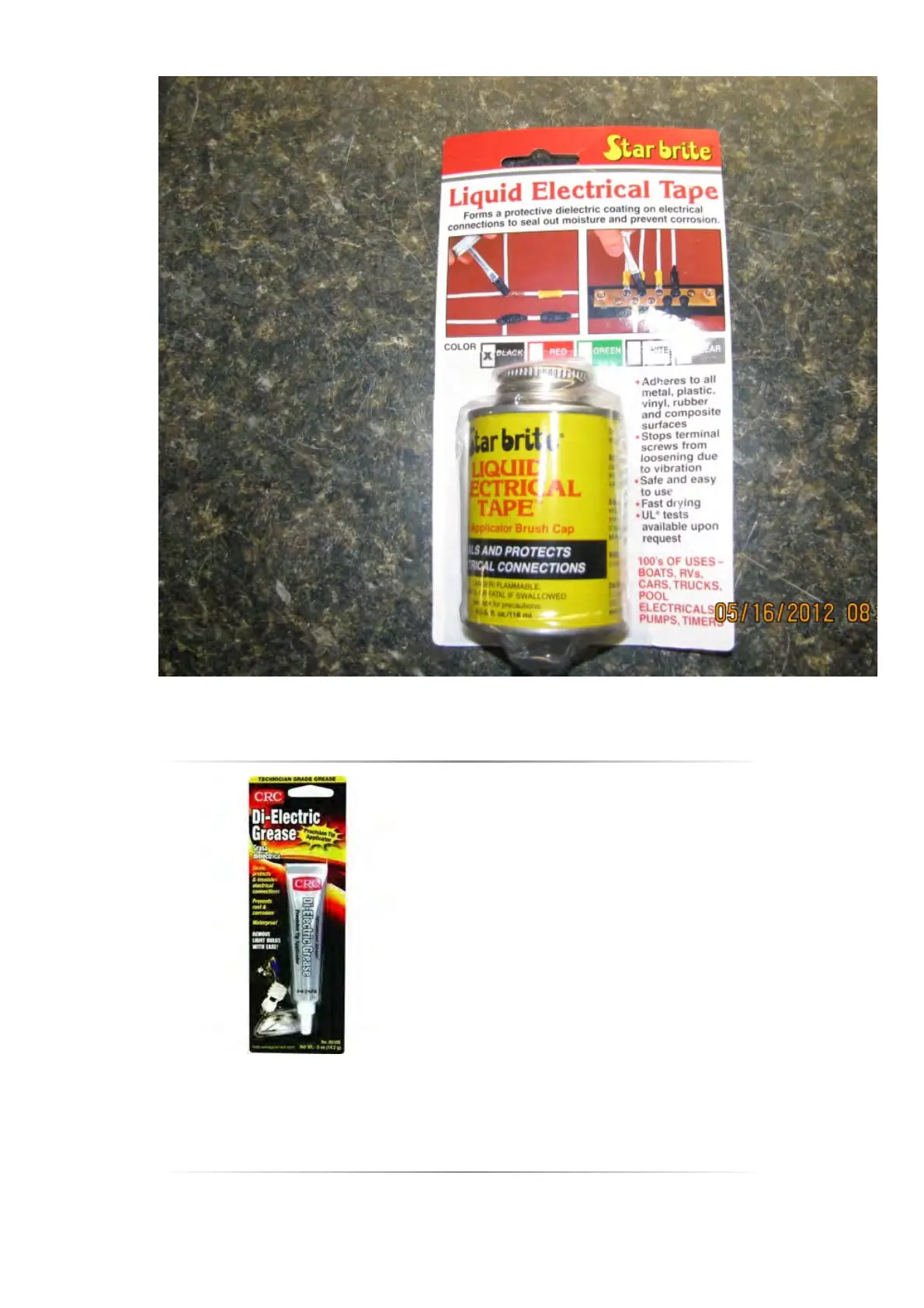

Star Brite Liquid Electric tape (do not use Gardner Bender brand Liquid tape.)

 http://www.amazon.com/Star-brite-84134-Liquid-Electrical/dp/B000Y82XVC/

Di‐Electric Grease

Use the Di‐Electric Grease shown above to fill any gaps in the threads of the connectors.

 http://www.amazon.com/CRC-Technician-Di-Electric-Precision-Applicator/dp/B000CCIDAA/

Solution:
