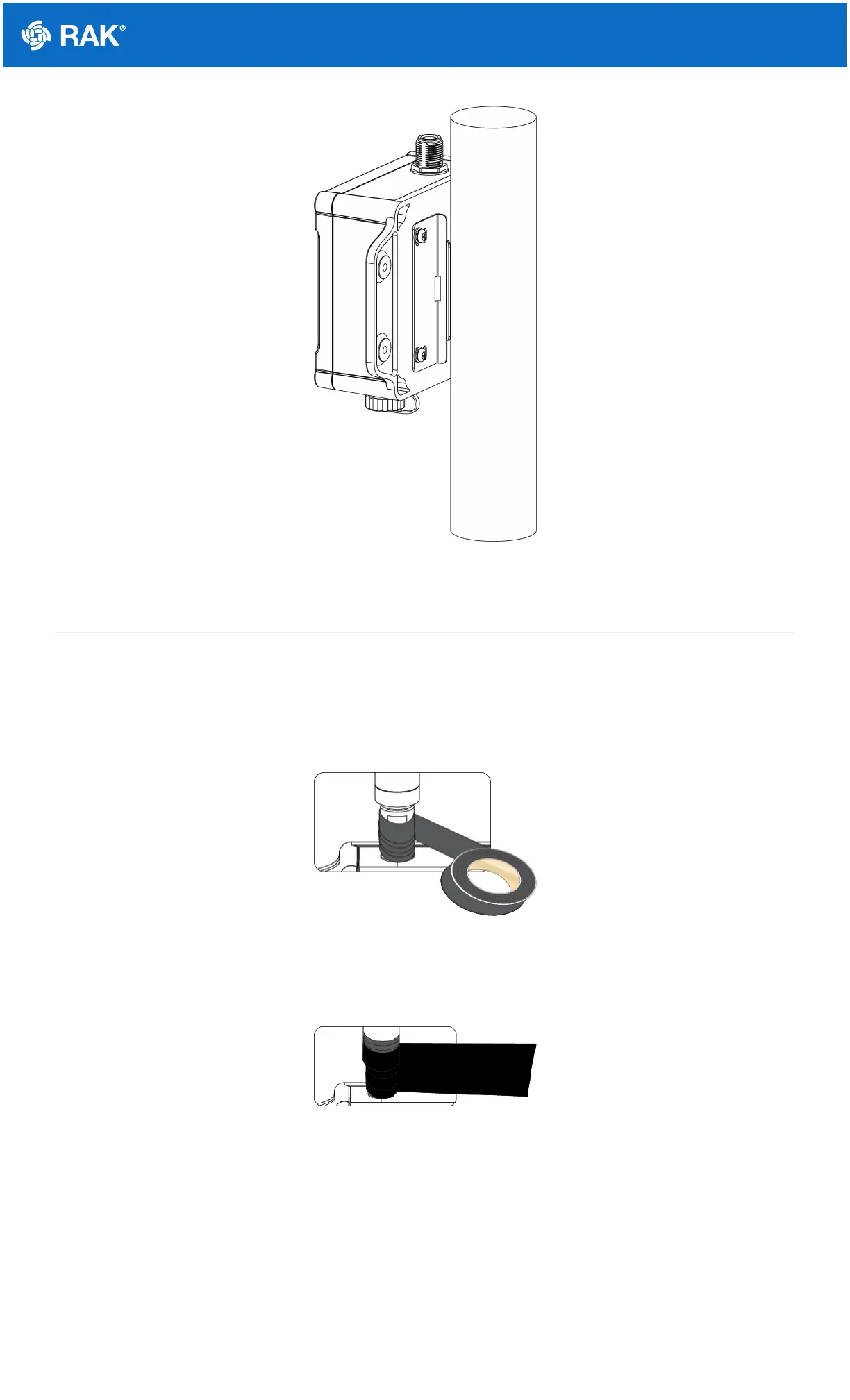

Figure 11: Pole mounting - Attaching Band Clamps
Protection treatment
Seal the N-type antenna:
Step 1: Connect the N-type antenna to the connector on the enclosure and fix it tight. Clean the surface of the
area to be wrapped, wrap a layer of PVC tape with 50% overlap around the connector and the about 10mm of the
foot of the antenna.
Figure 12: Protection treatment - Step 1
Step 2: Cut off about 50cm waterproof tape, stretch it to twice the original length, wrap three layers with 50%
overlap rate, and hold the joint with hands for some time to let the tape cling to the connector and antenna.
Figure 13: Protection treatment - Step 2
Step 3: Wrap three layers of PVC tape over the waterproof tape around the connector and about 10mm of the foot
of the antenna with 50% overlapping rate, overlap the head and tail of the waterproof tape for 10 mm, and cut the
tail with scissors.
