RAK WisBlock Kit 3 - Pole Mounting Steps

Documentation Center

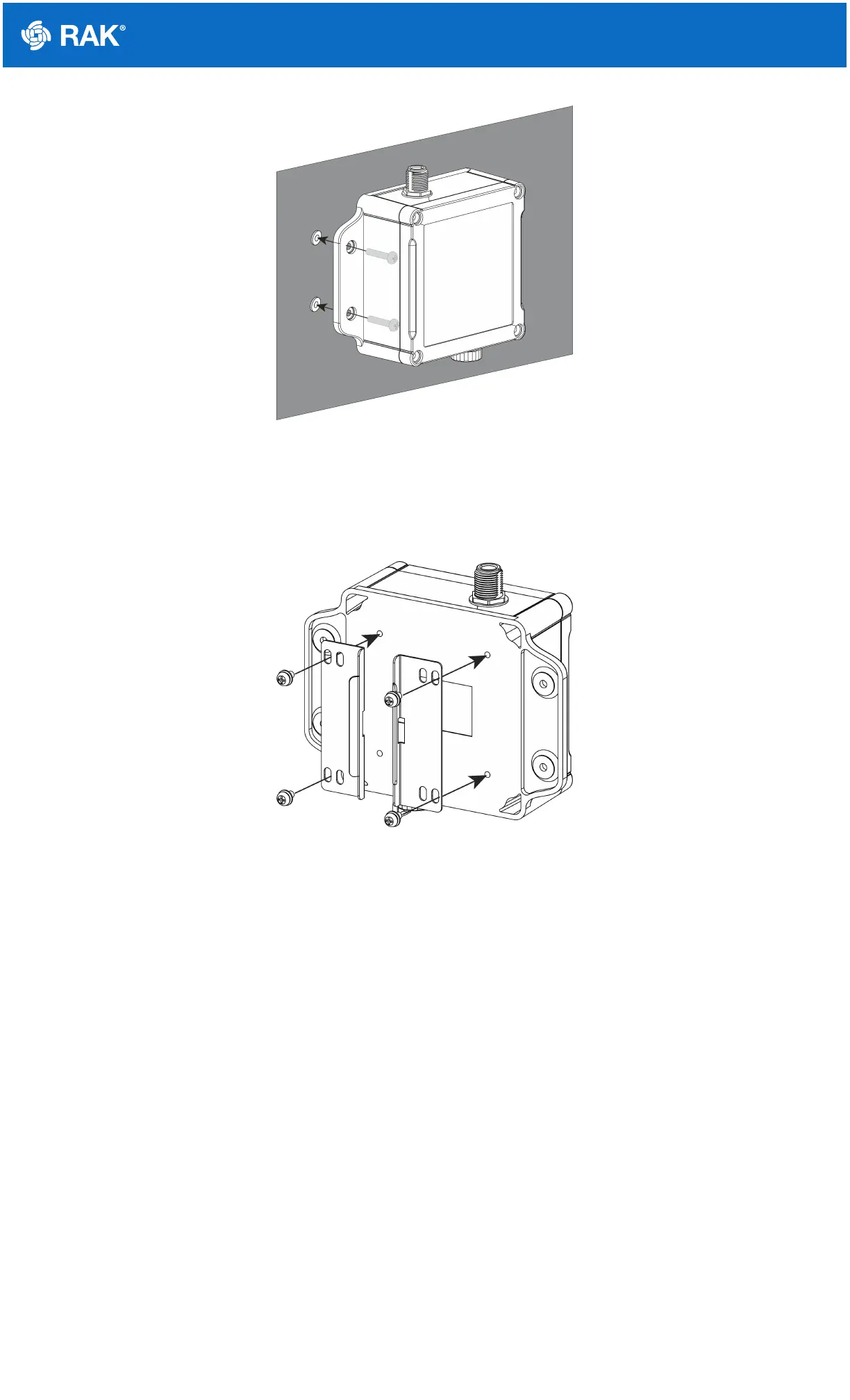

Figure 9: Wall mounting
Pole Mounting
Step 1: Fix the installation kit on the bottom of the enclosure with four M4*8 screws;
Figure 10: Pole mounting - Installation Kit
Step 2: Slide the Steel band clamps through the rectangular hole of the mount kit, wrap the band clamps around
the pole, lock them and then tighten the clamps using a screwdriver.
