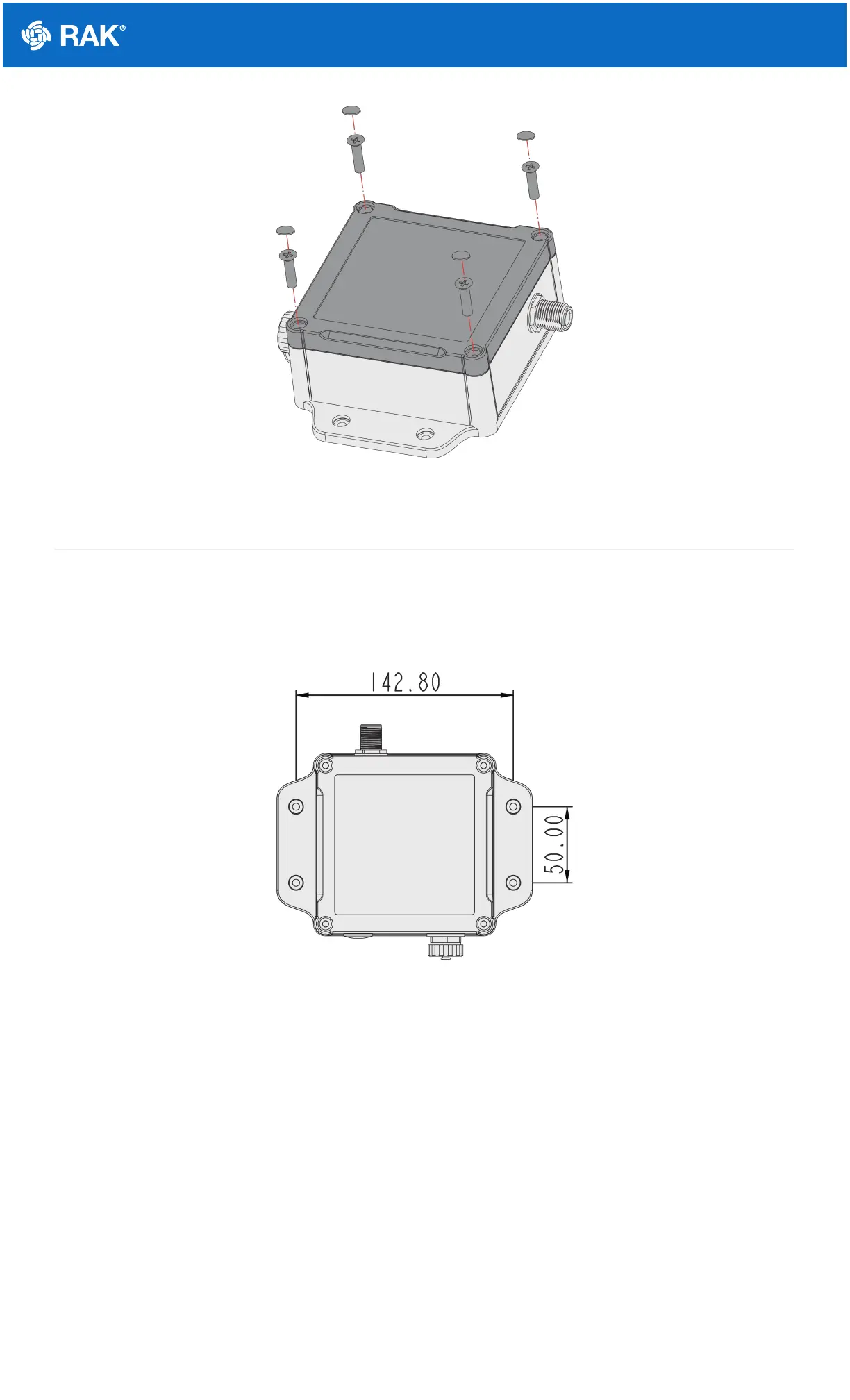

Figure 7: Cover
Installation
Wall Mounting
Step 1: Use Ø6mm drill head, drill 4 holes on the wall according to the dimension of the following picture and then
plug the screw anchors in the wall;
Figure 8: 4 Drill Holes
Step 2: Use the tapping screws, attach the device to the wall.
