Raket 95 - Split Drawing Carburettor; Tillotson HS-319 A

www.raketengines.com
3016
3017
3041
3018
3022
3023
3024
3025
3026
3020
3019
3028
35029
3045
3046
3047
3044
3038
3037
3036
3035
3032
3031
3039
3027
3043
3039
3040
Tillotson HS-319A
Raket 95 Manual - English 27
3013 Plate .........................................................
3014 Screw .......................................................
3015 Choke axle ...............................................
3016 Cap ...........................................................
3017 Main diaphragm .......................................
3018 Gasket ......................................................
3019 Screw .......................................................
3020 Expansion cap ..........................................
3022 Screw .......................................................
3023 Axle ..........................................................
3024 Lever ........................................................
3025 Valve ........................................................
3026 Spring .......................................................
3027 Expansion cap ..........................................
3028 Circlip .......................................................
3029 Fuel elbow ................................................
3030 Tube tting................................................
3031 High speed mixture screw ........................
3032 Spring .......................................................
3033 Ball ...........................................................
3034 Spring .......................................................
3035 Low speed mixture screw .........................
3036 Spring .......................................................
3037 Screw .......................................................
3038 Screw .......................................................
3039 Bushing ....................................................
3040 Spring .......................................................
3041 Control plate .............................................
3042 Filter small ................................................
3043 Filter .........................................................
3044 Screw .......................................................
3045 Diaphragm Std .........................................
3045-1 Diaphragm plastic ....................................
3045-2 Diaphragm Teon .....................................
3046 Gasket ......................................................
3047 Pump cover ..............................................

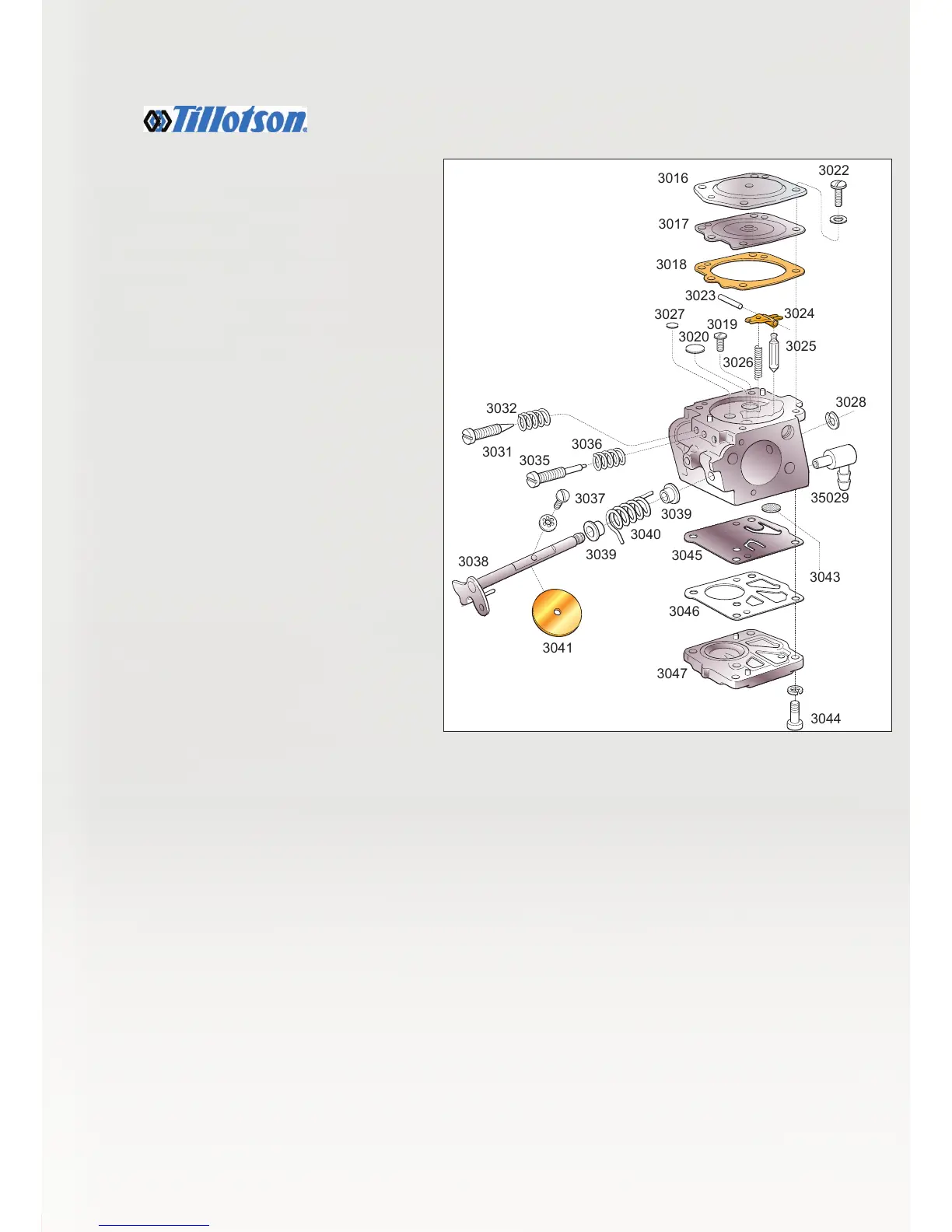

Split drawing carburettor
