Electrical System Technical Manual 3
Please note: For your own safety, make sure to always cut o electricity by removing
the battery BEFORE you start working on electric bicycles!
CHARGE BATTERY BEFORE USE

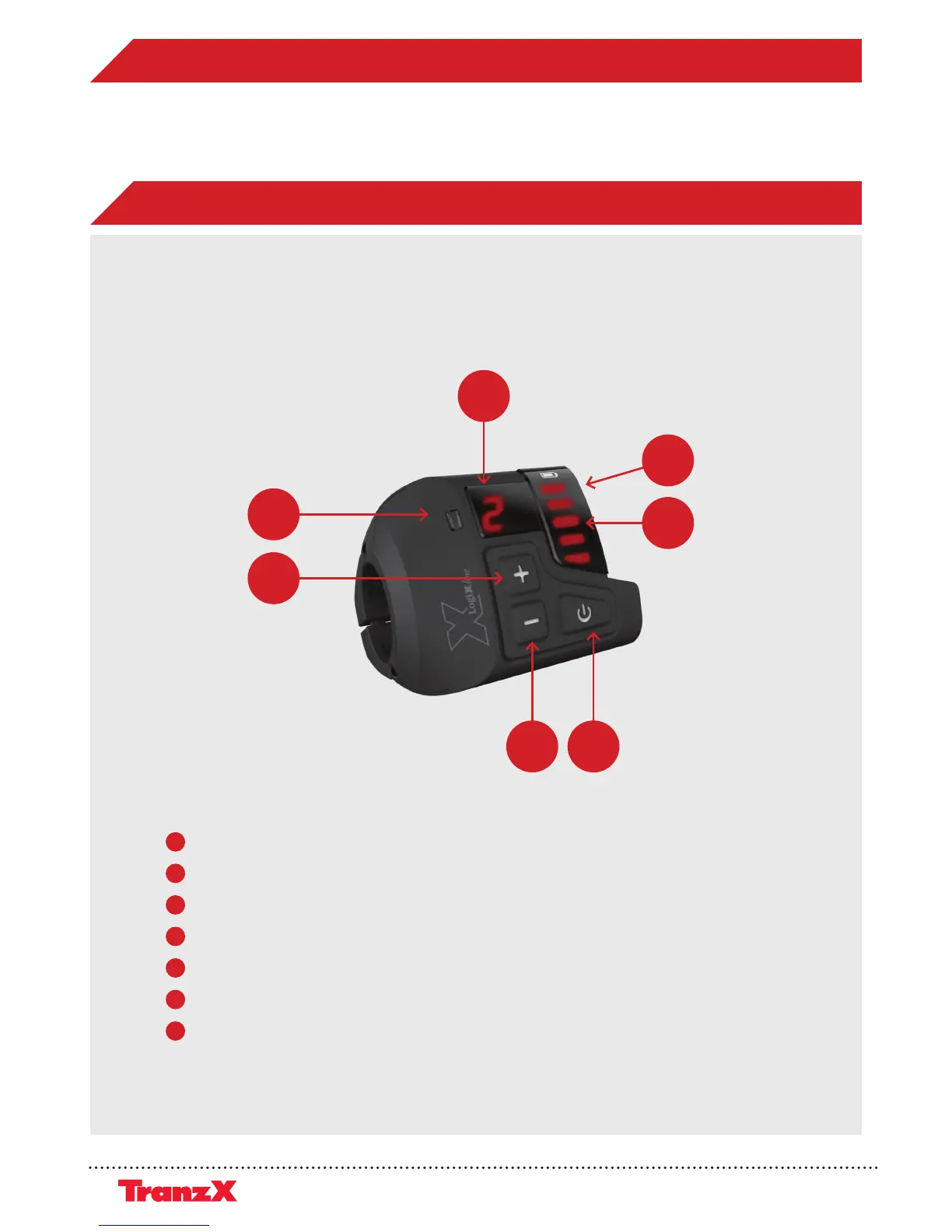

DP 15 DISPLAY OPERATION INSTRUCTIONS
Refer to battery information
1
On / O
2
Decrease assistance
3
Increase assistance
4
Light sensor to automatically switch on / o the lights
5
Assistance level
6
Battery capacity
7
Mini USB port for programming
