NOTE:
The vehicle must remain in the engine run position
with all doors closed while attaching a trailer for
proper leveling of the air suspension syst
em.
2. Position the truck to be ready to connect to the
trailer (do not connect the trailer).
3. Enable tire jack mode through the instrument
cluster or touchscreen radio settings. Tire jack
mode will be canceled and the procedure must be
restarted if the vehicle is driven at speeds above 5
mph (8 km/h).

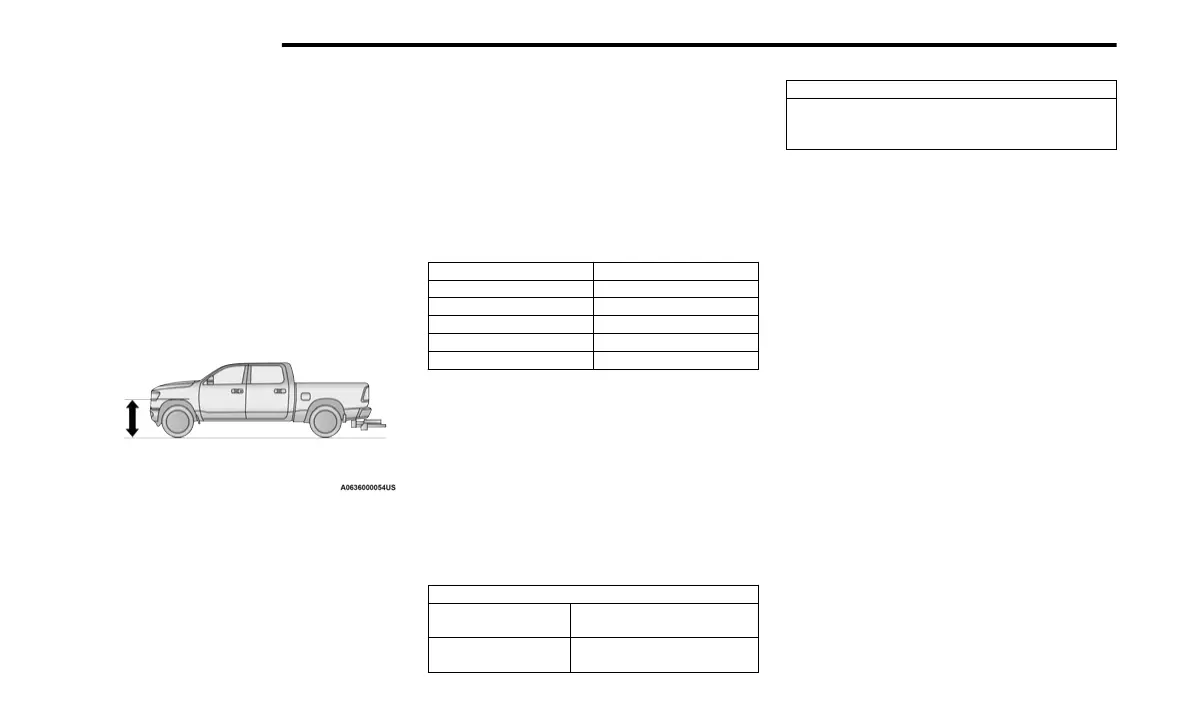

4. Measure the height from the top of the front wheel
opening on the fender to ground; this is height H1.
Measuring Height (H)
5. Attach the trailer to the vehicle without the weight-
distributing bars connect
ed.
6. Measure the height from the top of the front wheel
opening on the fender to the ground; this is height
H2.
7. Install and adjust the tension in the weight-
distributing bars per the manufacturer’s
recommendations so that the height of the front
fender is approximately (H2-H1)/3+H1 (about 1/3
the dif
f
erence be
tw
een H2 and H1 abo
ve normal
ride height [H1]).
8.
Use the instrument cluster or touchscreen radio
settings and switch off tire jack mode. Make sure
the truck returns to normal ride height. Perform
a visual inspection of the trailer and weight-
distributing hitch to confirm the manufacturer’s
recommendations have been met.
9. The truck can now be driven.
Measurement Example Example Height (mm)
H1 925
H2 946
H2-H1 21
(H2-H1)/3 7
(H2-H1)/3 + H1 932
NOTE:
For all towing conditions, we recommend towing with
T
ow/Haul mode engaged.
TRAILER HITCH TYPE AND MAXIMUM TRAILER
WEIGHT
The following chart provides the maximum trailer weight
a given factory equipped trailer hitch type can tow and
should be used to assist you in selecting the correct
trailer hitch for your intended towing condition.
Trailer Hitch Type and Maximum Trailer Weight
Hitch Type
Max. Trailer Weight / Max.
Tongue Weight
Class IV - 1500 Mod-
el
12,750 lb (5,783 kg) / 1,275
lb (578 kg)
Trailer Hitch Type and Maximum Trailer Weight
Refer to the “Trailer Towing Weights (Maximum Trail-
er Weight Ratings)” for the Maximum Gross Trailer
Weight (GT
W) towable for your given drivetrain.
All trailer hitches should be professionally installed on
your vehicle.
NOTE:
Be careful not to scratch the bumper st
ep pad.
TRAILER TOWING WEIGHTS (MAXIMUM
TRAILER WEIGHT RATINGS)
NOTE:
For trailer towing information (maximum trailer weight
ratings) refer to the following website addresses:
● ramtrucks.com/towing/towing-guide
● ramtruck.ca (Canada)
● rambodybuilder.com
TRAILER AND TONGUE WEIGHT
Never exceed the maximum tongue weight stamped on
your fascia/bumper or trailer hitch.
188 S
TARTING AND OPERATING
