out on the cleat and slide it to the detent nearest the
desired location. Make sure the cleat is seated in the
detent and tighten the nut.
To remove the cleats from the utility rail, remove the end
cap screw located in the center of the end cap, using a
#T30 Torx head driver. Remove the end cap and slide the
cleat off the end of the rail.

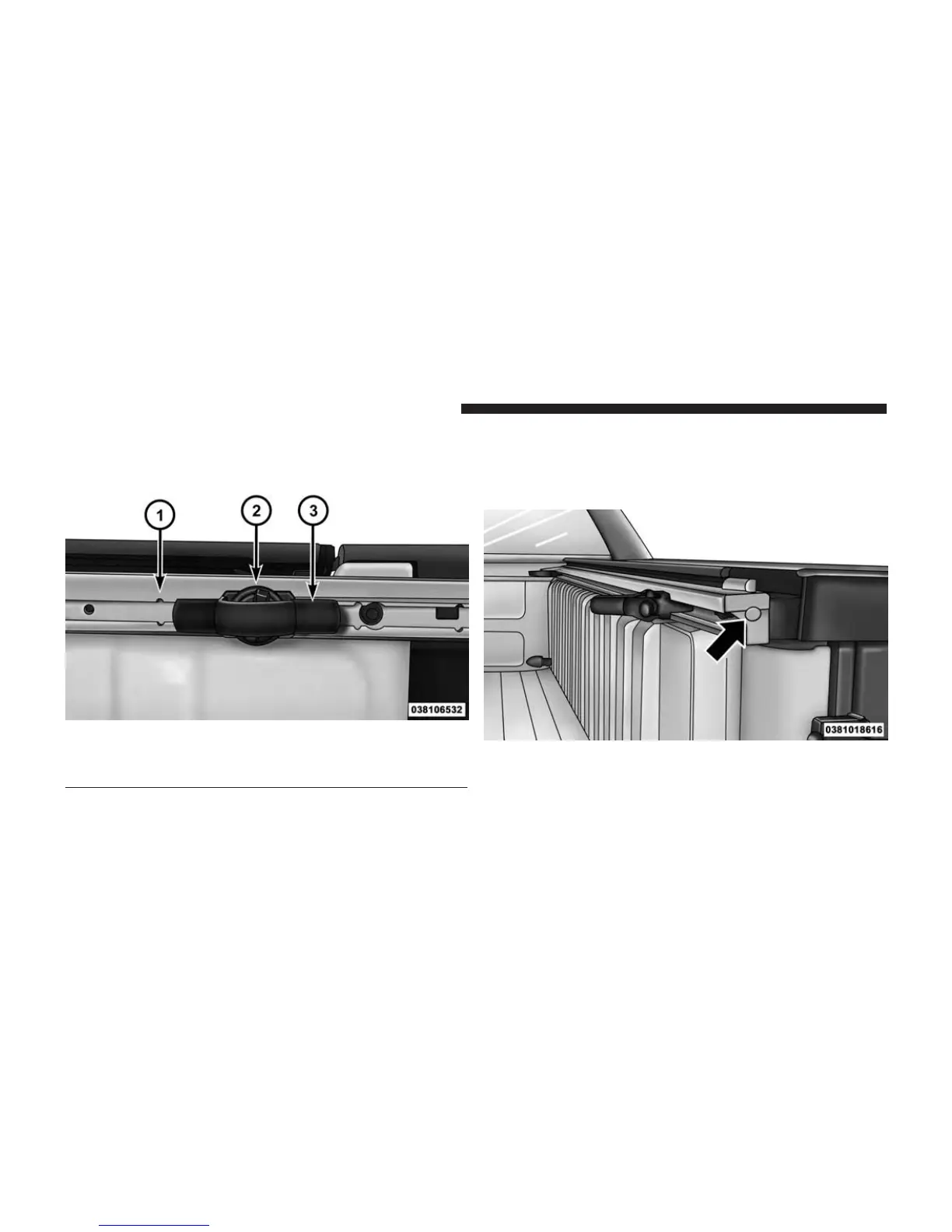

1 — Utility Rail Detent
2 — Cleat Retainer Nut
3 — Utility Rail Cleat
Utility Rail End Cap
270 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
