NOTE: The Tonneau Cover can be folded up and secured
at the front of the box without removing completely.
Tri-Fold Tonneau Cover Removal
To remove the Tonneau Cover follow the following steps:
1. Lower the tailgate to gain access to the first set of two
Tonneau Cover clamps located on the driver and pas-
senger underside of the Tonneau Cover.
2. Pull down on the first set of clamps on both driver and
passenger sides to the semi clamped position.
3. Pull down on the clamp wire and push the clamp up
into the proper released position.

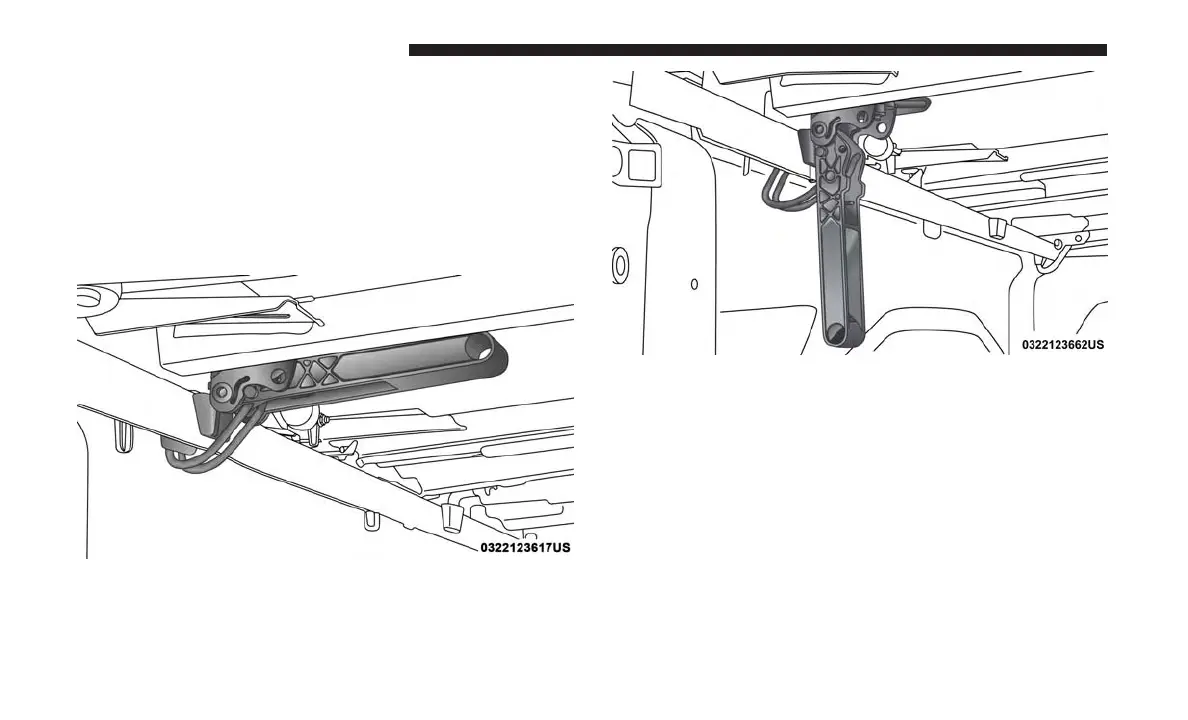

Clamped Position
NOTE: If clamp wire is damaged replace immediately.
Semi Clamped Position
156 GETTING TO KNOW YOUR VEHICLE
