Rear Lamp Bar ID Marker (Dual Rear Wheels) — If
Equipped
1. Loosen the two screws and the housing to gain access to
the bulb sockets.
2. Turn the socket ¼ turn counterclockwise to access the
bulb.
3. Pull the bulb straight out from the socket.
4. Reverse the procedure for installation of the bulbs and
housing.
Side Marker Lamps (Dual Rear Wheels) — If
Equipped
1. Push rearward on the side marker lamp assembly.
2. Pull the entire assembly from the fender.
3. Turn the socket ¼ turn counterclockwise and remove
from assembly to access the bulb.
4. Pull the bulb straight out from socket.
5. Reverse the procedure for installation of the bulbs and
housing.

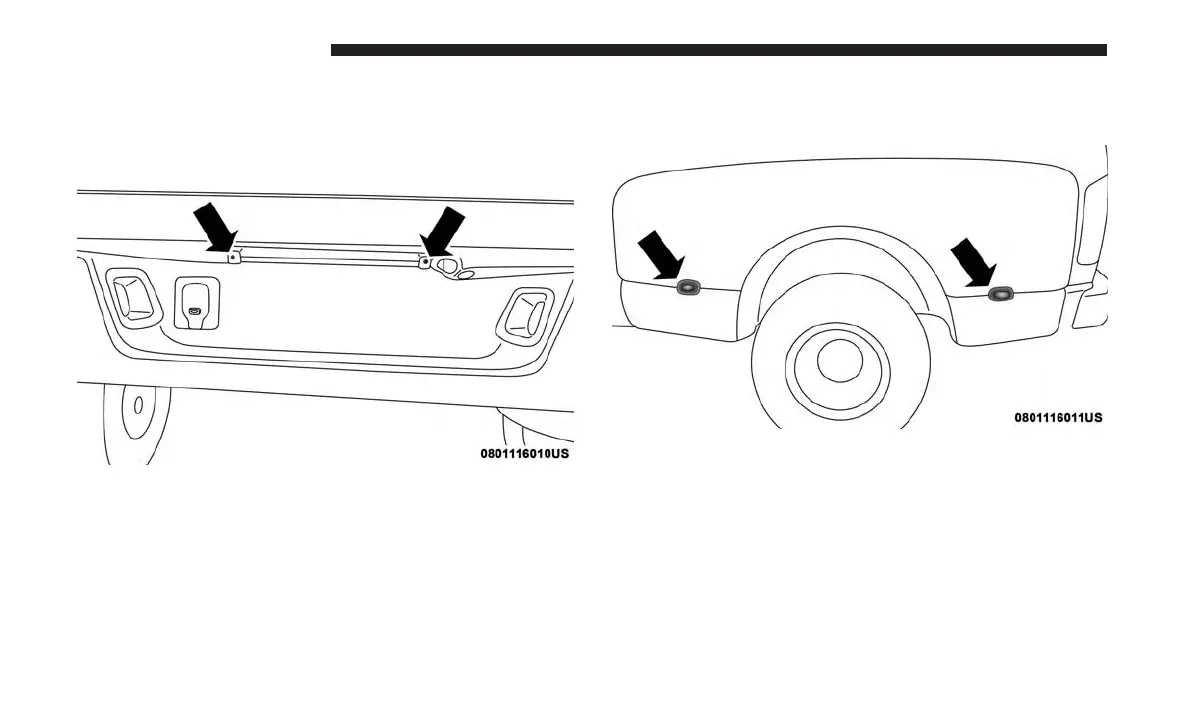

Screw Locations
Side Marker Lamp Locations
460 IN CASE OF EMERGENCY
