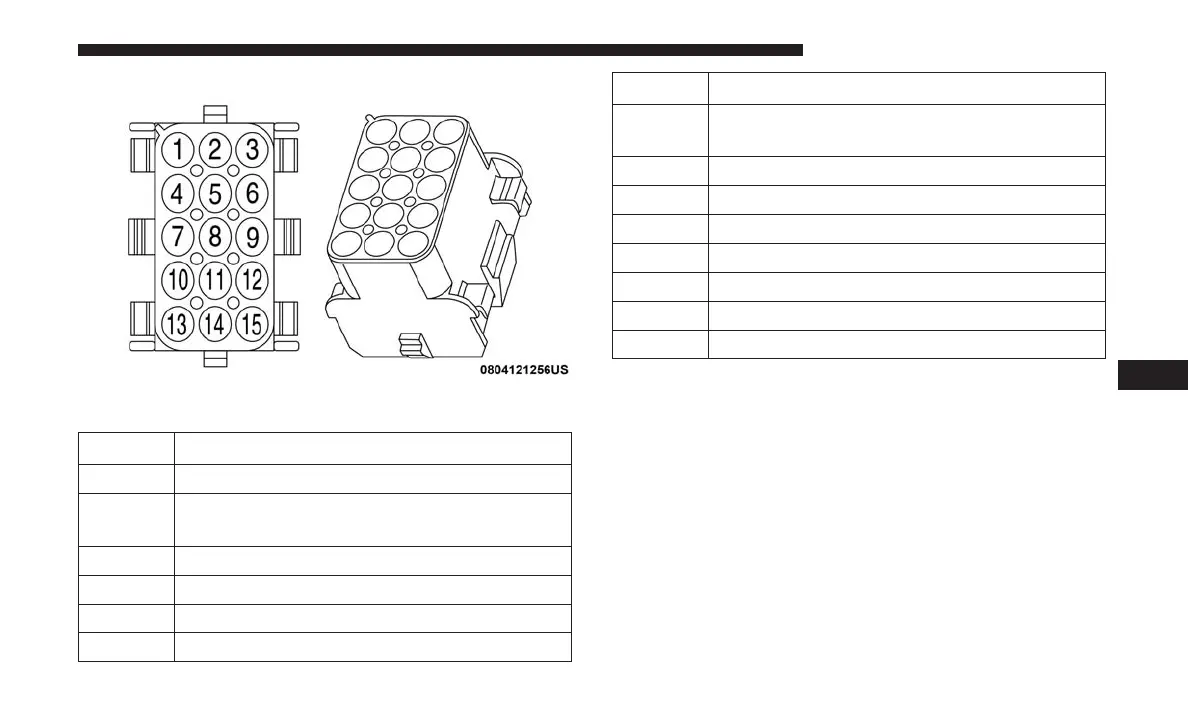

15 Way Vehicle Connector Functions and View
PIN Function
1 Not Connected
2 Alternator System Charging In Process
Signal
3 Vehicle Speed Repetition (VSO)
4 Not Connected
5 Not Connected
6 Not Connected
7 Additional Courtesy Light
8 Courtesy Lights Negative Control
(Dimmed)
9 Not Connected
10 Not Connected
11 Not Connected
12 Not Connected
13 Power Supply At Key On (+Ignition)
14 Not Connected
15 Not Connected
Connector Pin Numbers
8
SERVICING AND MAINTENANCE 259
