A - Dip switch to set microphone sensitivity.
Depressed: -66dBu to -38dBu
Pressed: -49dBu to -21dBu
B - Phantom power supply switch: pressed supply on power is 15v, 48v on request.
C - Female 3 pins XLR socket for Micro 1 input. Input is electrically balanced (ground 1, hot 2, cold 3).
D - RCA socket Line 2 right input.
E - RCA socket Line 2 left input.
F - RCA socket Line 1 right input.
G - RCA socket Line 1 left input

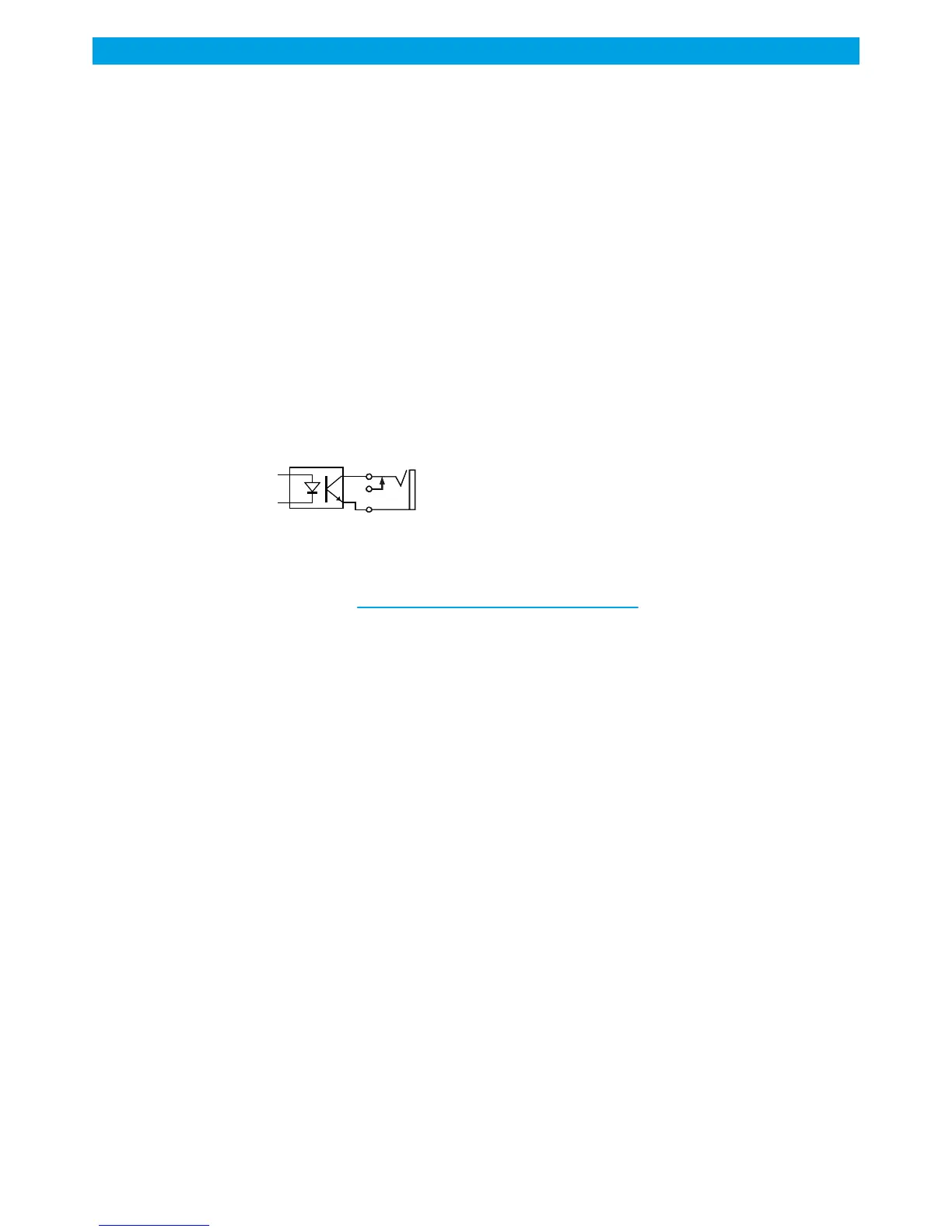

H - Jack START remote control. Internal circuit uses opto coupler.
Above description applies to :
Mic 2 / Line 3 and 4
Mic 3 / Line 5 and 6
Mic 4 / Line 7 and 8
Mic 5 / Line 9 and 10
Mic 6 / Line 11 and 12
Mic 7 / Line 13 and 14
Control uses two wires. From your controlled equipment, get a positive voltage and sent it ti the jack tip.
INPUT CHANNEL 1: MIC1 / LINES 1 & 2 - REAR PANEL
RAmi
RP500
11
