RAM RP500 - Annex: Wiring Diagrams; ON AIR Control Wiring; TEL150 Hybrid Wiring

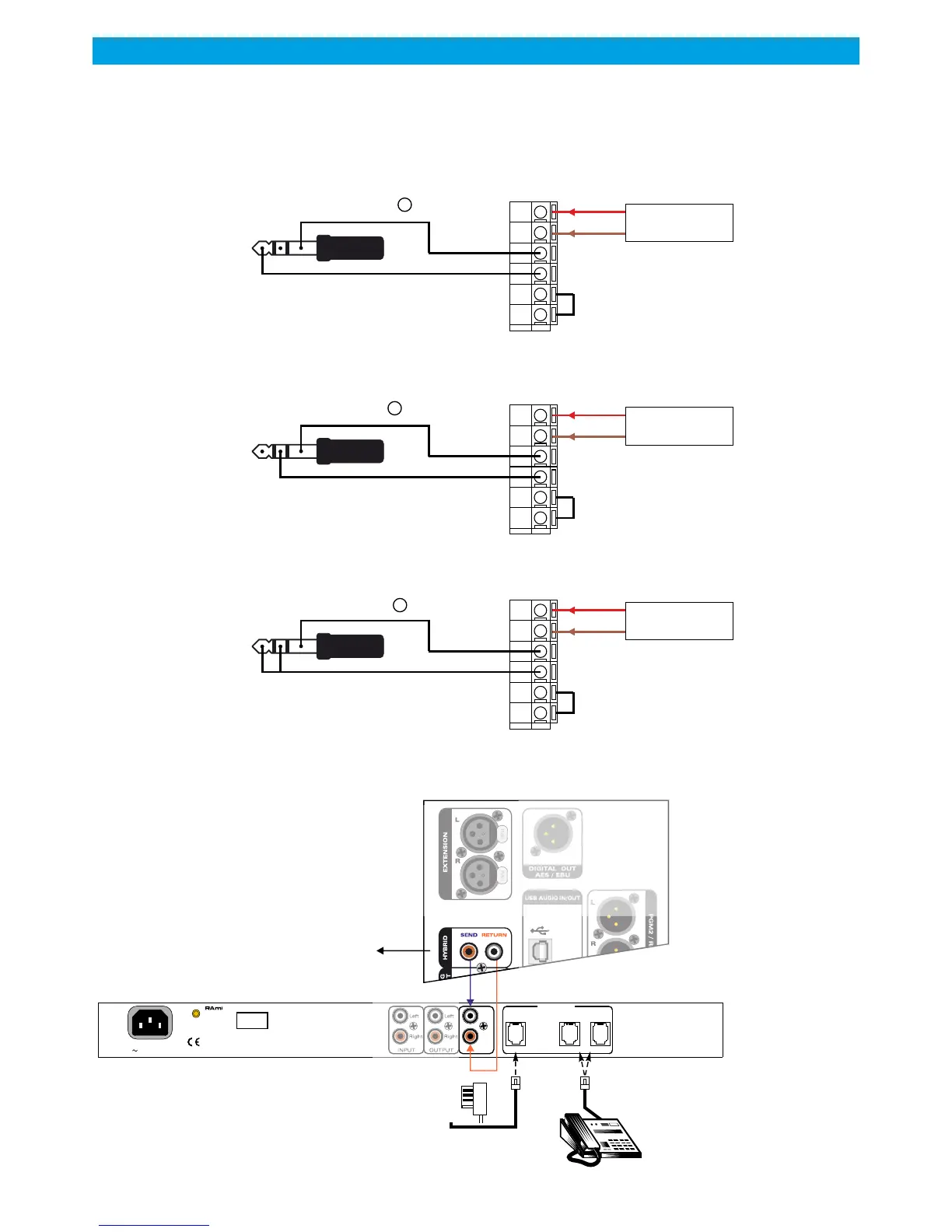

ANNEX: Wiring
A / Jack with ON AIR control wiring
B / TEL150 Hybrid wiring.
RGL500 Connector
RGL500 Connector
RGL500 Connector
+VCC
+VCC
+VCC
POWER SUPPLY
POWER SUPPLY
POWER SUPPLY
 ON AIR with MASTER MIC only.
 ON AIR with all microphones on input channels.
 ON AIR with MASTER MIC and all microphones
see RP500 manual, page 18 Y
Jack for ON AIR GPO connector
see RP500 manual, page 18 Y
see RP500 manual, page 18 Y
Jack for ON AIR GPO connector
Jack for ON AIR GPO connector
HYBRID
(socket D , page 16 )
Connect telephone line to the
connector pins 1 and 3. Order is of no
importance.
Attention, according to the telephone
set, the wiring can differ.
To avoid difficultiesTEL150 features 2
ways of wiring.
LINEMONOOUTPUT
OUT
RightRight
INLeftLeft
INPUT PHONE
TELEPHONE
Std A Std B
Serial
Nbr
Made in Europe (Fr)
T 160mA L
230V 50/60Hz 5W
Model TEL 150
TEL150
RP500 rear panel - output module
RAmi
RP500
23
