Installation
Page 3 of 9
Figure 7
Figure 4
4
5
6

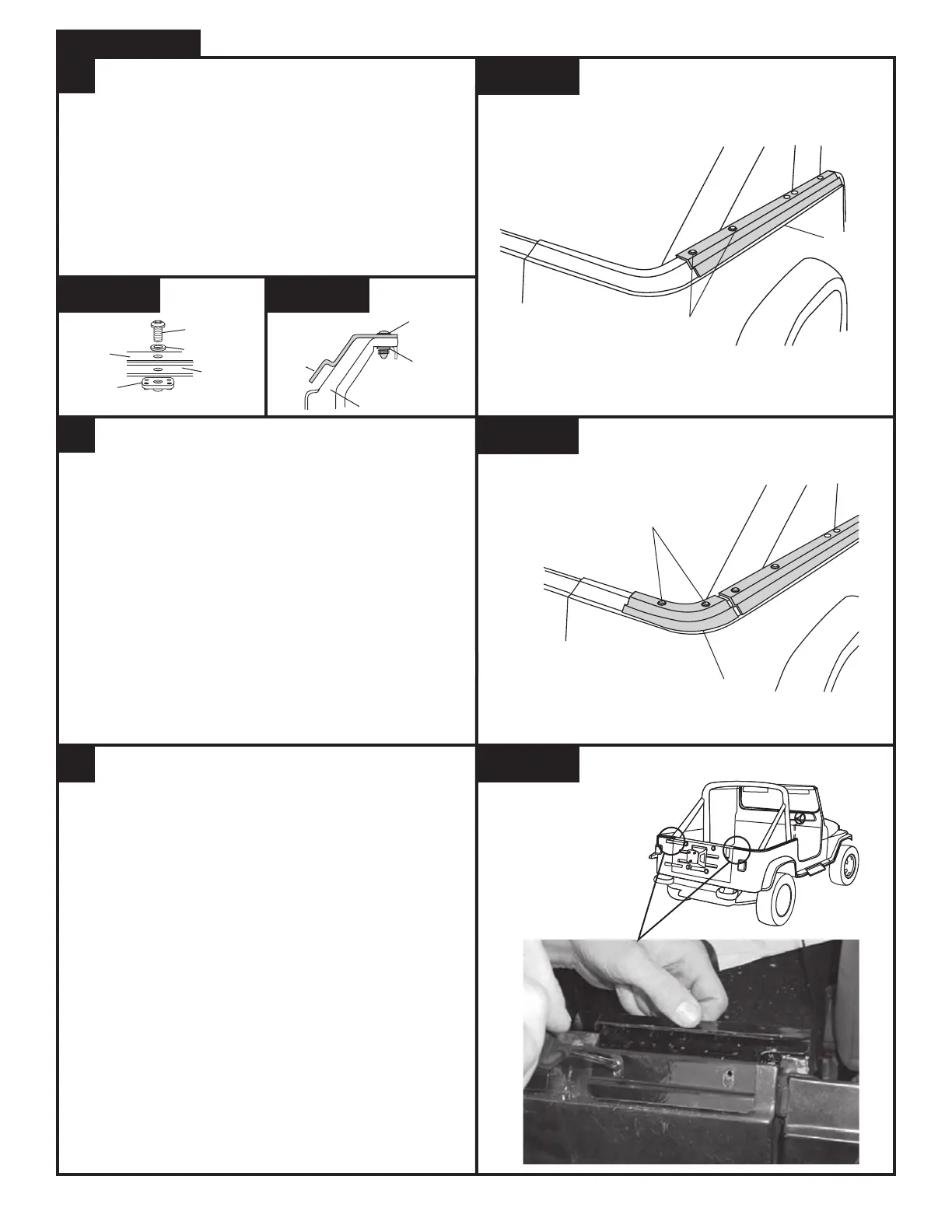

Locate Passenger Side Belt Rail, (4) – 5/16” Torx
Bolts, (4) – 5/16” Flat Washers, and (4) – 5/16”
Tapping Plates.
Position Side Belt Rail onto vehicle and secure it
using the hardware listed in this step. The sheet-
metal has pre-drilled holes from the factory that
will line up with Belt Rail. See Figure 4, 5 and 6
Repeat this step for opposite side.
Locate Passenger Corner Belt Rail, (2) – 5/16”
Torx Screws, (2) – 5/16” Flat Washers, and (2) –
Tapping Plates.
Position Corner Belt Rail onto vehicle and secure
it by using hardware listed in this step.
Note: There may be a slight gap between the
Corner and Side Belt Rail.
This is Normal.
See Figure 5, 6 and 7
Repeat this step for opposite side.
Figure 8
Locate Passenger Tailgate Bracket, (2) - #10-24 x
1/2” Phillips Machine Screws, (2) - #10 star lock
washers, (2) - #10 Flat Washers and (2) - #10-
24 Nylock Nuts. In some cases the holes on the
Tailgate Bracket will line up with existing holes. In
this case, use the existing holes as pilots to drill
3/16” holes on the vehicle.
Note: Carefully check under the drilling area to be
sure you do not drill into any concealed wiring.
Note: If you are replacing a hardtop, use the
Tailgate Bracket as a template to drill 3/16” holes.
Position Tailgate Bracket and secure it by using
the hardware listed in this step
See Figure 8
Repeat this step for opposite side.
Figure 5
Figure 6
Belt Rail
Tapping
Plate
Vehicle
Body
5/16” Torx
Head Bolt
5/16” Washer
5/16” Torx
Head Bolt and
Washer
Belt Rail
Tapping
Plate
Side Belt Rail Detail
Cross Section
Inside of
Vehicle
Body Panel
5/16” Torx
Head Bolts
with Washers
5/16” Torx
Head Bolts
with Washers
Side Belt
Rail
Front
Rear Corner
Belt Rail
To Next Page
