10

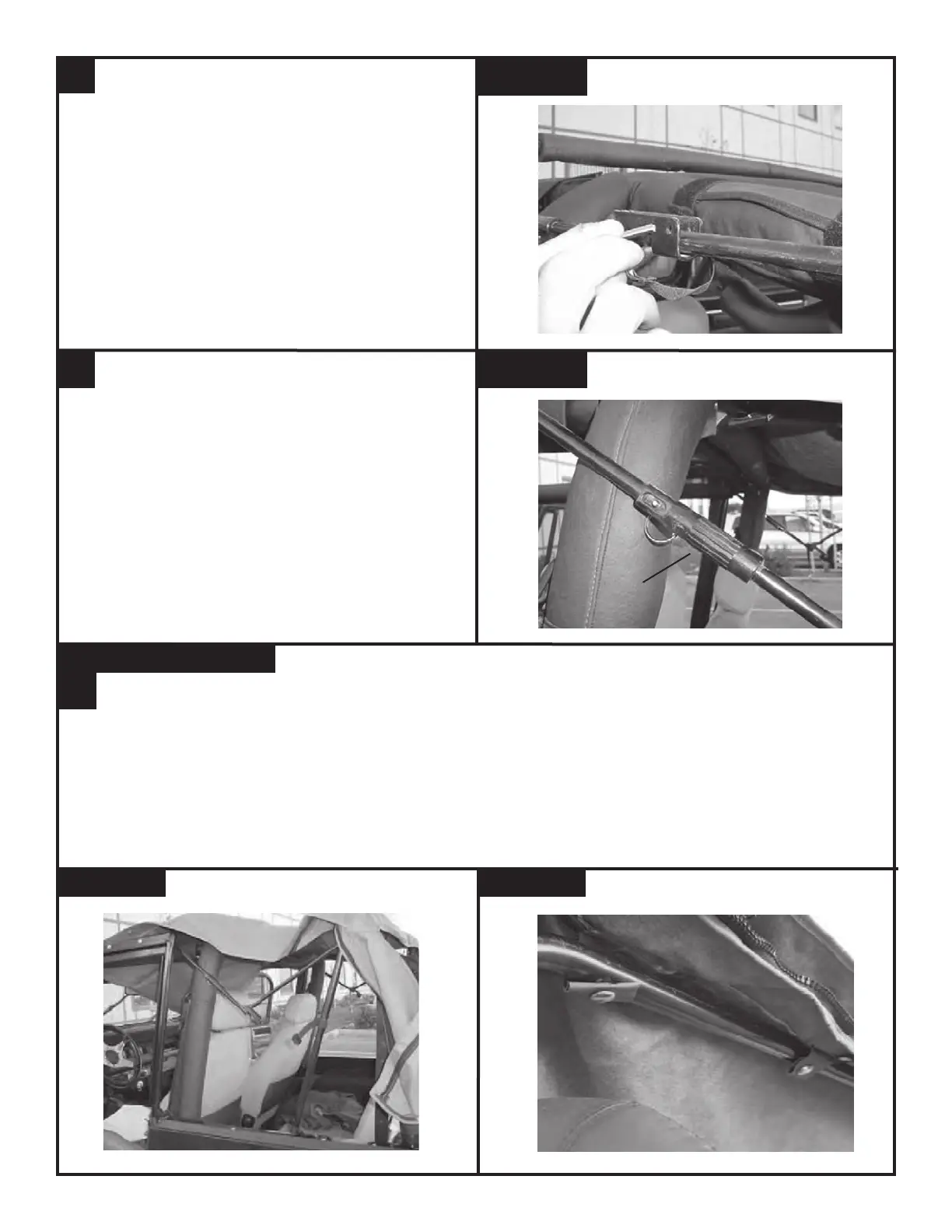

With the Bow Assembly in position, locate the
Adjustable Spreader Bar.
Lock it in the up/straight position. Secure it by
inserting the steel pin through the hole of the
spreader bar-straight pin portion facing inside the
vehicle
See Figure 14
Figure 14
11
To loosen or tighten your soft top, locate the
adjustable sleeve on the Spreader Bar. Remove pin
and twist to tighten or loosen the soft top. Reinsert
pin after adjustment is made.
Note: Ensure to adjust the spreader bar equally on
both sides of the vehicle.
The adjustable bar can be used to keep your soft
top fabric tight in hot weather.
See Figure 15
Figure 15
Adjustable
Sleeve
NOTE: Actual application may vary slightly from illustrations.
1
Figure 1
Fabric Installation
Lay the new main skin over the hardware.
See Figure 1
Attach the corresponding snaps to the middle and rear bows.
See Figure 2
Figure 2
