IV MAINTENANCE
BATTERY MAINTENANCE
NOTE: Check the battery hold down bracket for tightness. Do not over tighten. Remove any
acid corrosion from the battery terminals and cables with a baking soda and water solution.
Coat the terminals with a high temperature grease.
To access the battery, lift the floor
plate upwards and remove.

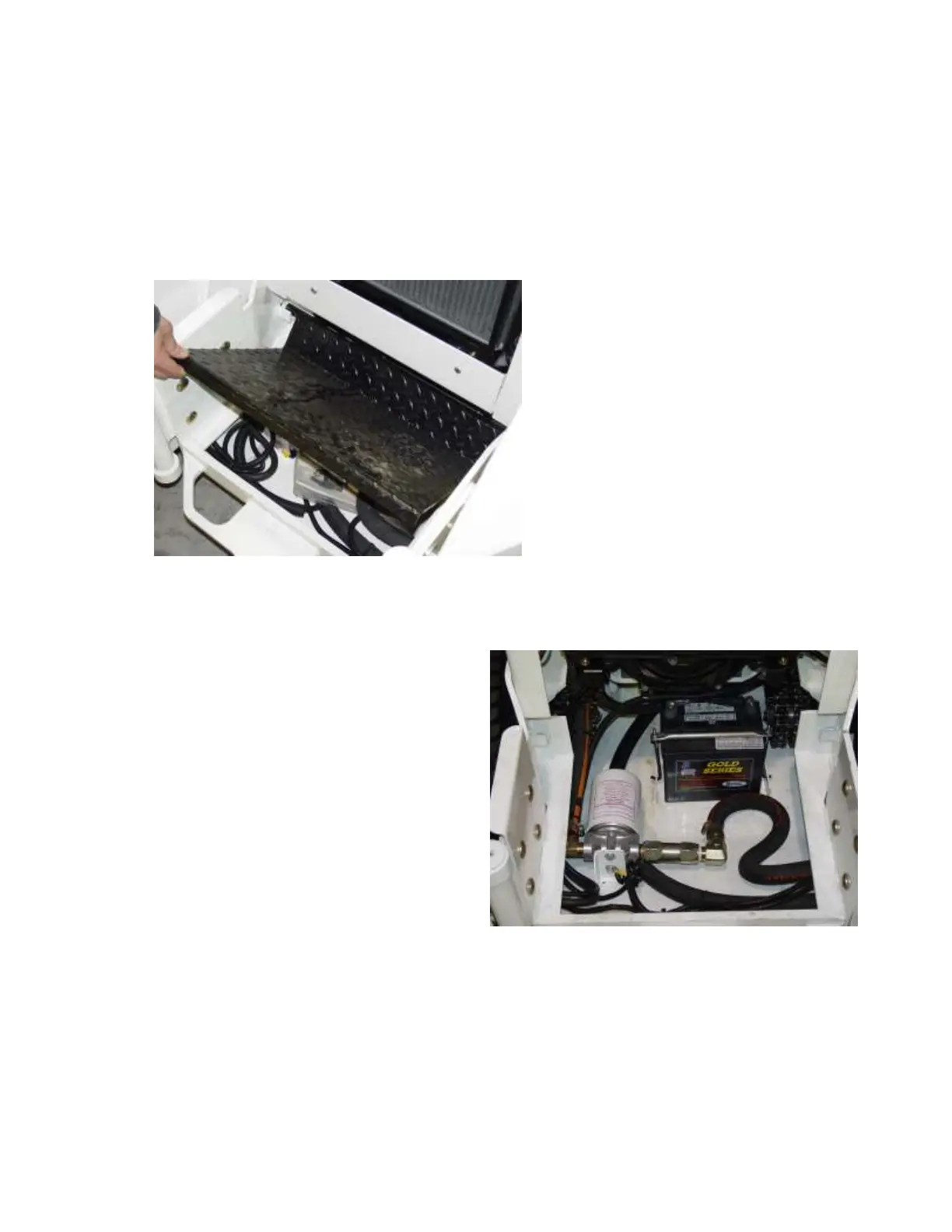

Figure 26: Foot Plate
The battery is located under the operator
platform and slightly forward.
The hydraulic oil filter is located to the
left of the battery.
Figure 27: Hydraulic Filter and Battery
