T3SS NOSE AND HOUSING ASSEMBLY
16

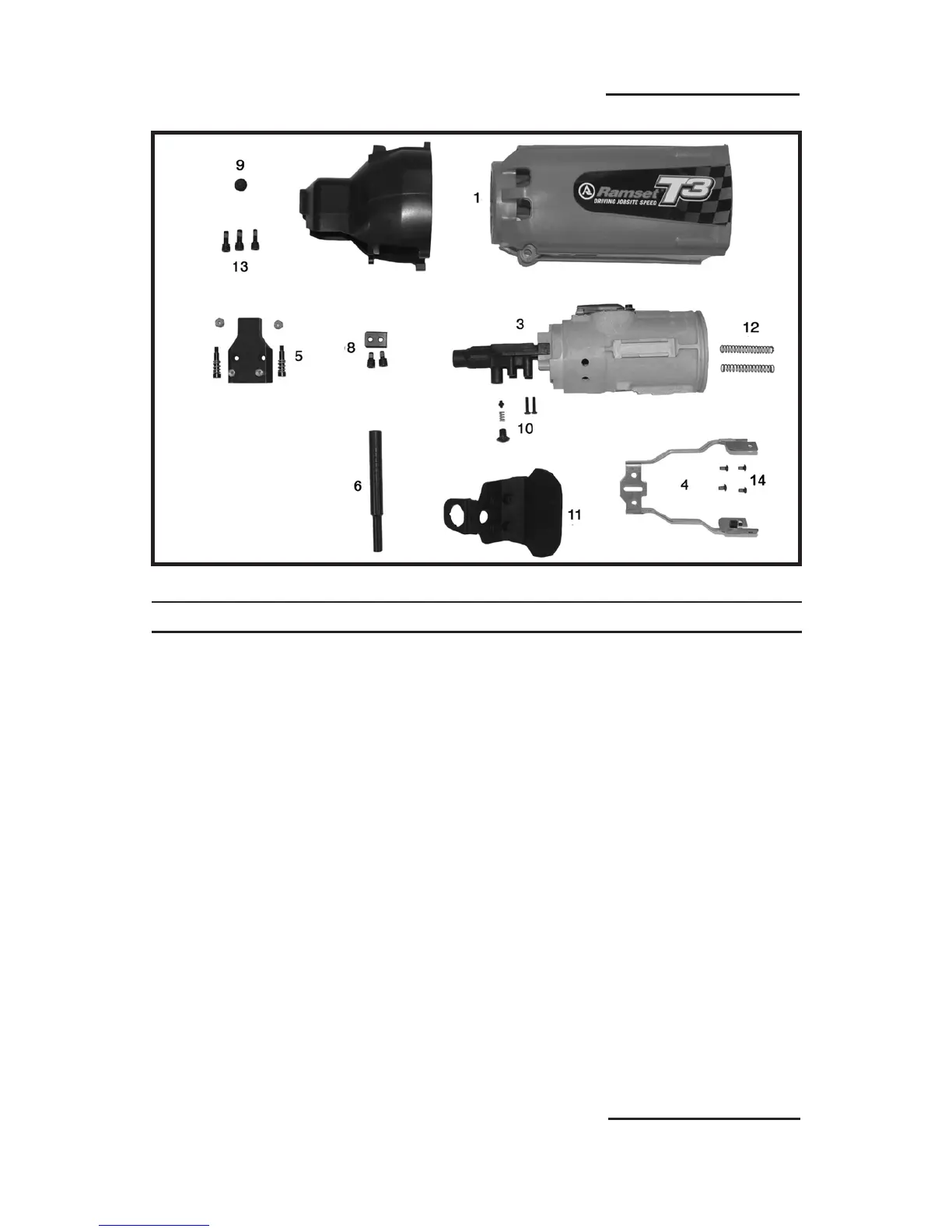

T3SS NOSE AND HOUSING ASSEMBLY
RAMSET T3SS NOSE AND HOUSING ASSEMBLY
KEY PART NUMBER DESCRIPTION
1 B0001 HOUSING
2 B0096 SHROUD
3 B0052T3SS NOSE/SLEEVE ASSEMBLY T3SS
4 B0217A CAGE ASSEMBLY, T3SS/T3SSMAG
5 B0175 SHEAR BLOCK PLATE KIT, T3SS
(USE WITH TOOLS BEFORE S/N 1407100277 OCT 07)
6 E150100 WORK CONTACT ELEMENT (WCE)
— M150200 MAGNETIC WORK CONTACT ELEMENT
8 B0047A GUIDE BLOCK ASSEMBLY
— B0171 SPACER, STAND-OFF NUT
9 B0179 SHROUD PLUG
10 B0218 WCE RETENTION KIT
(TOOLS WITH S/N 1407100278 OR LATER, OCT 07)
11 100008A AUXILIARY SHROUD T3SS
12 B0037A CAGE SPRINGS (QTY 2)
13 B0059A HOUSING SCREWS (PKG 3)
14 B0057 SCREW, CAGE TO COMBUSTION CHAMBER
4 REQUIRED - SOLD INDIVIDUALLY
— EM150302 SHOULDER SCREW FROM B0175 KIT (EA)
— 12388 SPRING FROM KIT B0175 (EA)
— B0163 NUT FROM KIT B0175
