T3 MAGAZINE NOSE ASSEMBLY
T3 MAGAZINE NOSE ASSEMBLY
17

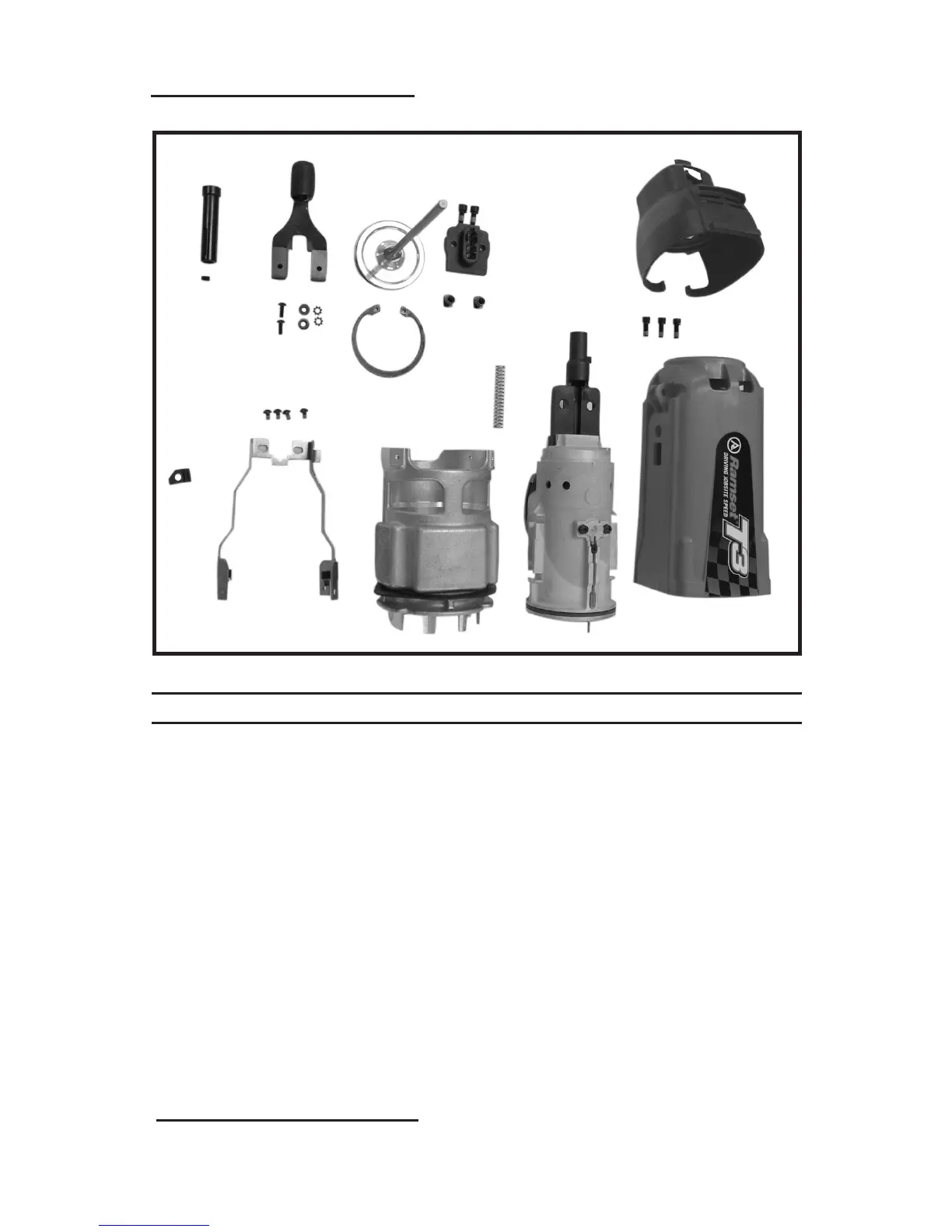

RAMSET T3 MAGAZINE NOSE ASSEMBLY
KEY PART NUMBER DESCRIPTION
1 B0001 HOUSING
2 B0199 SHROUD
3 B0052A NOSE / SLEEVE ASSEMBLY, T3MAG
4 B0217A CAGE ASSEMBLY WITH SCREWS, T3MAG
5 B0110A SHEAR BLOCK KIT, T3MAG
Shear Block, T-Nuts (2), Screws (2)
7 B0111A PIN GUIDE ASSEMBLY W/SET SCREW
8 B0122A ACTUATOR ASSEMBLY
8A B0128 SCREW, ACTUATOR TO CAGE
9 B0031A PISTON ASSEMBLY W/PISTON RINGS
10 B0068 PISTON STOP RING
11 B0037A CAGE SPRING (2)
12 B0178 COMBUSTON CHAMBER W/AIR DAM
13 B0209 HOUSING SCREWS & SECURITY STOP
14 B0188 SCREW, PIN GUIDE
15 B0057 SCREW. CAGE TO COMBUSTION CHAMBER
B0058 SCREW, M5-10
1
2
13
13
3
12
4
5
7
8
8
9
10
11
