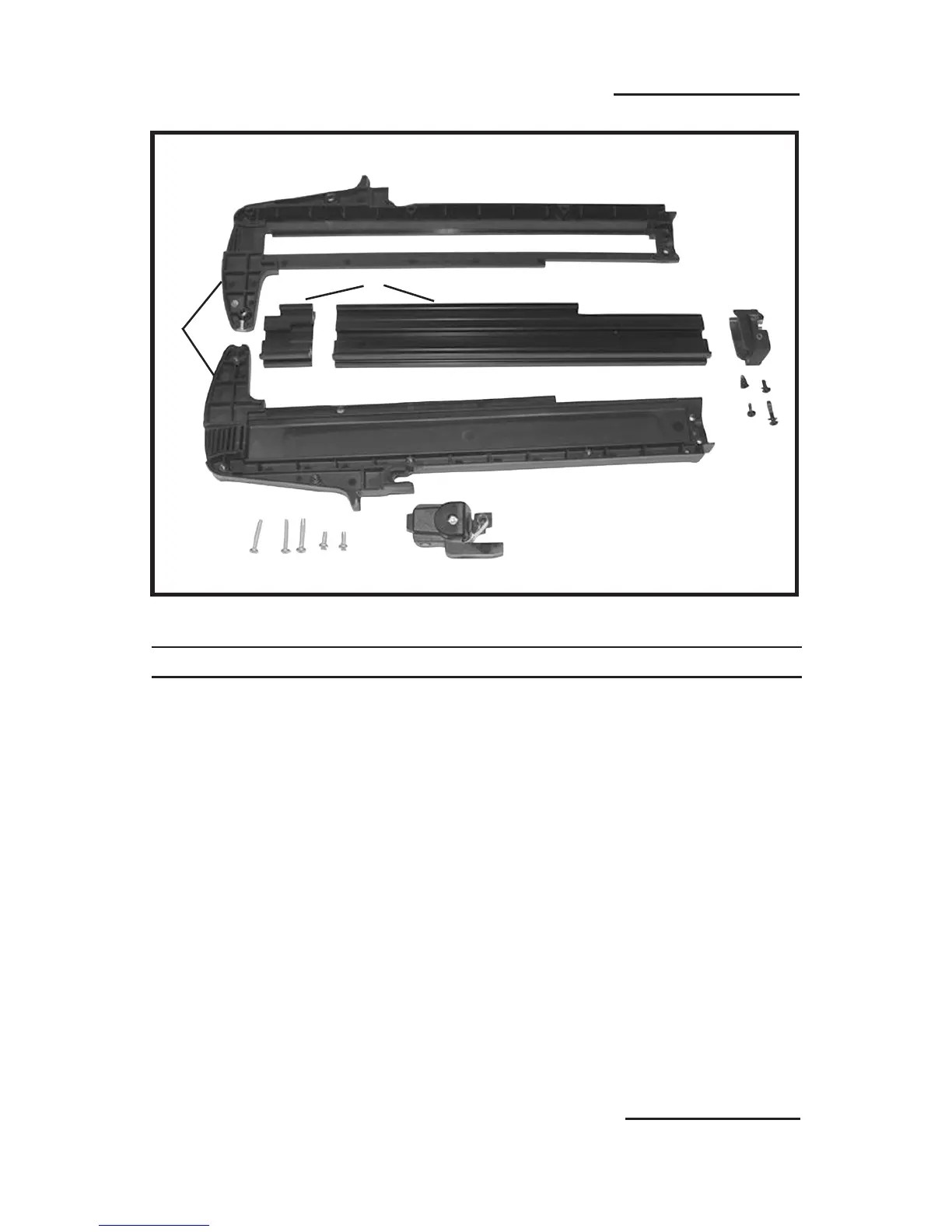

T3 MAGAZINE – MAGAZINE ASSEMBLY
18
T3 MAGAZINE – MAGAZINE ASSEMBLY
RAMSET T3 MAGAZINE – MAGAZINE ASSEMBLY
KEY PART NUMBER DESCRIPTION
1 B0203 MAGAZINE LEFT & RIGHT HALF
2 B0204 FRONT & REAR RAILS
3 B0205 CONNECTION BLOCK & SCREWS
4 B0206 CONNECTION BLOCK SCREWS ONLY
5 B0207 FOLLOWER ASSEMBLY W/CONSTANT
FORCE SPRING
6 B0208 MAGAZINE SCREWS
7 B0147 LOCKOUT BRACKET
1
2
3
4
7
5
6
