Ramteq DV SERIES - B Urner a Ssemblies

OperatOr’s Manual
RAMTEQ
®
14275 NORTHWEST FREEWAY  HOUSTON, TX 77040  PHONE: 713.983.6000  FAX: 713.983.64 05  300-00007-01 10/06

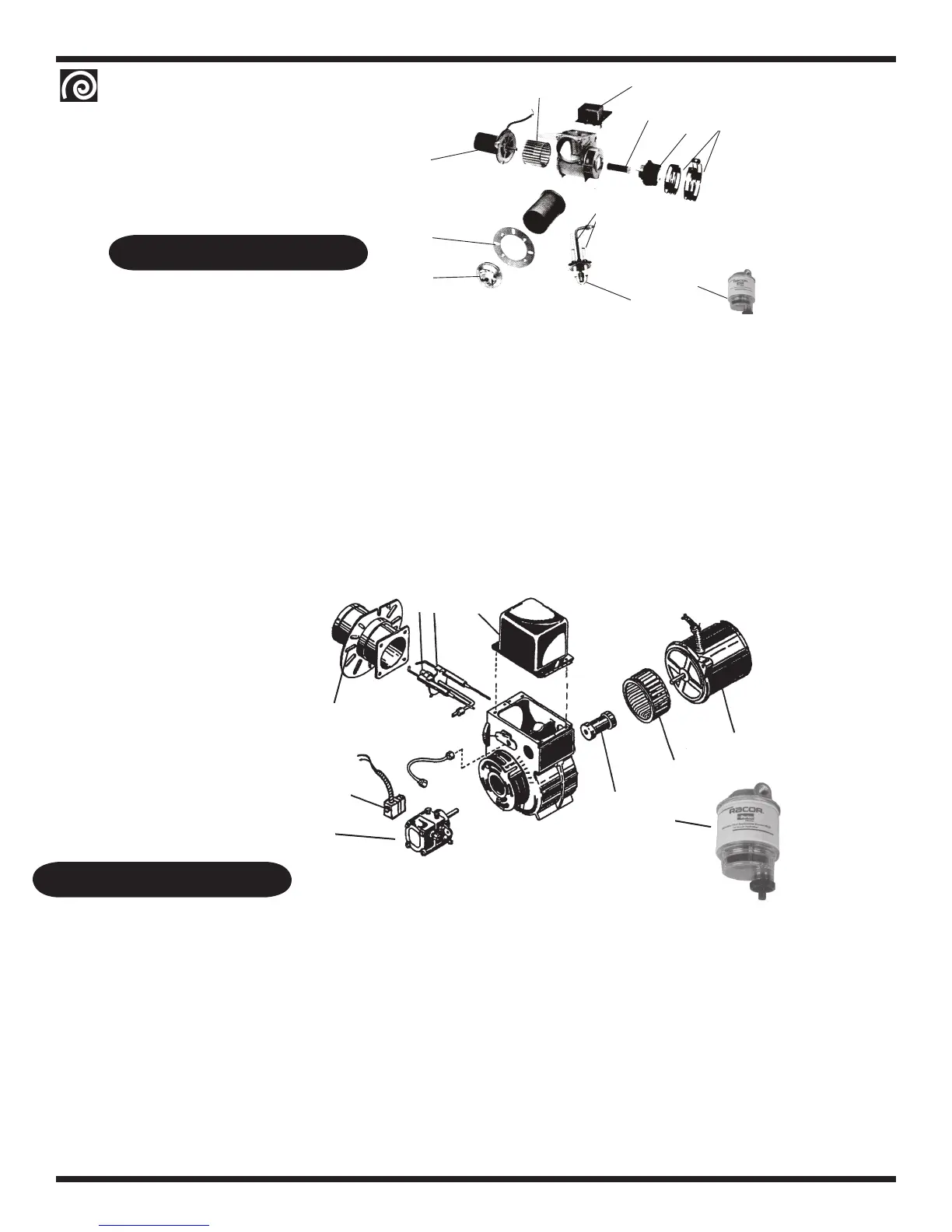

page 8
DV 12V Burner Assembly
1
2
3
4
5
6
7
9
8
10
11
Ref# Part # Description Qty
1 256-00001-02 Main Burner Gasket 1
2 253-00002-01 Fan Wheel 3.44” x 4.25” 1
3 254-00001-04 Motor, 12v DC 1
3a Motor, Flange 1
4 252-00001-04 Ignitor 1
5 253-00001-01 Coupling 1
6 251-00001-01 Fuel Pump Suntec 1
7 245-00006-16 Fuel Nozzle 2.25 80
º 1
8 258-00002-03 Electrodes 1pr
9 577-00003-01 Filter, Fuel Inline Racor 1
578-00001-01 Element, Fuel Filter, Racor 1
Burner Assembly Complete
250-00006-01 MSR-H-12 Wayne 12 Volt Burner
Ref.# Part # Description Qty
1a-1 252-00002-01 Fuel Pump Solenoid (NLH150,NLH200, NLH230) 1
1a-2 252-00002-01 Fuel Pump Solenoid (NLH300, NLH500) 1
2 256-00001-01 Main Burner Gasket 1
3 245-00006-11 Nozzle, Fuel 1.35/125psi (NLH150, NLH200, NLH230) 1
3b 245-00006-12 Nozzle, Fuel 1.65/140psi (NLH300) 1
3c 245-00006-12 Nozzle, Fuel 1.50/125psi (NLH500) 1
4 258-00002-01 Electrode Pair (RH & LH) 1
5 252-00001-06 Transformer 115v (NLH150, NLH200, NLH230) 1
5a 252-00001-07 Transformer 230v (NLH300, NLH500) 1
6 253-00001-01 Coupling 1
7 253-00002-01 Fan Wheel 3.44" X 4.25" 1
8 254-00001-01 Motor 115v/60/1 (NLH150, NLH200, NLH230) 1
8a 254-00001-02 Motor 208/230v/60/1 (NLH300, NLH500) 1
9 577-00002-01 Filter, Fuel Inline 1
10 557-00001-01 Clamp, Hose 2
11 280-00003-01 Hose, Inlet/Outlet Fuel Line 1
Burner Assembly Complete
250-00001-01 Wayne Burner Vertical 115v 1
250-00008-01 Wayne Burner Vertical 230v 1
6
7
8
1
1a
2
3
4
5
DV 115V Burner Assembly
9
