OperatOr’s Manual

RAMTEQ

14275 NORTHWEST FREEWAY  HOUSTON, TX 77040  PHONE: 713.983.6000  FAX: 713.983.64 05  300-00007-01 10/06

page 9

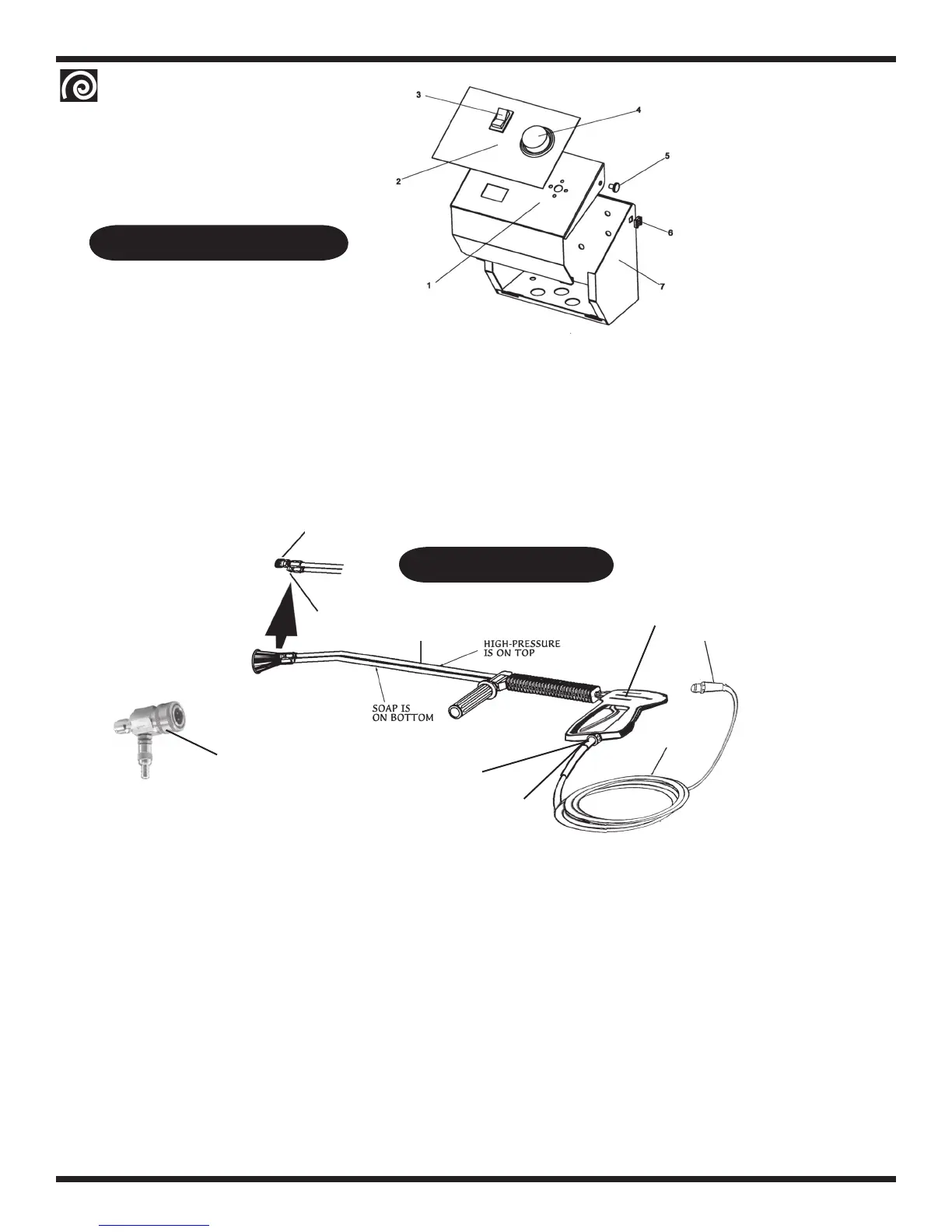

DV Control Box Assembly

Ref.# Part # Description

Qty

1 180-00027-01 Control Box Panel 1

2 305-00006-01 Label, Control Box Small 1

3 450-00001-01 Pump/Burner Switch On/Off 1

4 573-00001-01 Thermostat Assembly 1

5 505-00001-01 1/4" X 20 Thumb Screw 2

6 508-00002-01 Tinnerman 2

7 180-00150-01 Control Box 1

Hose, Wand & Gun

Ref# Part# Discription Qty

1. 270-00005-01 Nozzle, Water, #5.5, 0° Quick Connect (16-21 HP) 1

1a. 270-00005-02 Nozzle, Water, #5.5, 15° Quick Connect (16-21 HP) 1

1b. 270-00005-03 Nozzle, Water, #5.5, 25° Quick Connect (16-21 HP) 1

1c. 270-00005-04 Nozzle, Water, #5.5, 40° Quick Connect (16-21 HP) 1

1d 270-00004-01 Nozzle, Water, #5.0, 0° Quick Connect (20-25 HP) 1

1e. 270-00004-02 Nozzle, Water, #5.0, 15° Quick Connect (20-25 HP) 1

1f. 270-00004-03 Nozzle, Water, #5.0, 25° Quick Connect (20-25 HP) 1

1g. 270-00004-04 Nozzle, Water, #5.0, 40° Quick Connect (20-25 HP) 1

1h. 270-00002-01 Nozzle, Water, #4.0, 0° Quick Connect (10 HP) 1

1f. 270-00002-02 Nozzle, Water, #4.0, 15° Quick Connect (10 HP) 1

1g. 270-00002-03 Nozzle, Water, #4.0, 25° Quick Connect (10 HP) 1

1h. 270-00002-04 Nozzle, Water, #4.0, 40° Quick Connect (10 HP) 1

2. 554-00006-02 Quick Coupler Socket, 1/4” Male 1

3. 265-00002-01 Dual Wand, Insulated 1

4. 275-00001-01 Gun 1

5. 552-00004-03 Quick Coupler Plug, 3/8” 1

6. 284-00001-01 Hose Assembly, 50’, 3000PSI @ 250°F (10-16 HP) 1

6a. 284-00002-01 Hose Assembly, 50’, 5000PSI @ 250°F (18-25 HP) 1

7. 270-00038-01 Nozzle, Soap 1

8. 552-00003-03 Quick Coupler Plug, 3/8 nptm (not shown) 1

9. 554-00007-03 Quick Coupler Socket, 3/8 nptf (not shown) 1

10. 020-00005-01 Downstream Injector Kit (hose not shown) 1
