Randall UnIOn lOc k -StItch
Timing
Since 1858
Technical Support
1-800-327-9420
14

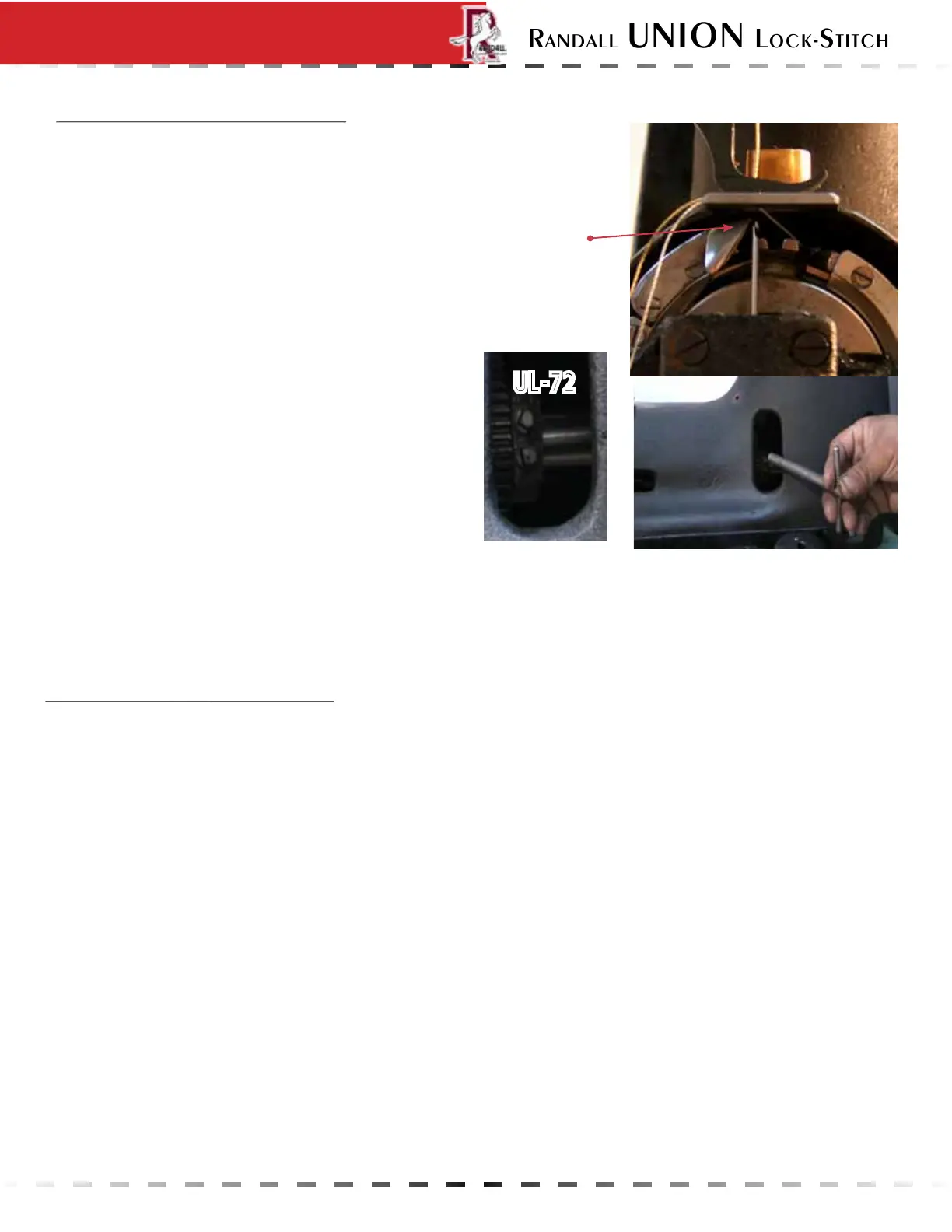

Shuttle Timing - FINe AdjUSTMeNT
The thread should release off the needle about halfway
on the shuttle hook. If the needle holds the thread too
long or too short, then the shuttle needs to be delayed or
advanced.
• On the lower right hand corner of the machine, in
a cut out in the casting, you will see a gear (UL-72)
with 2 screws on it. The shuttle gear shaft has a at
spot under the adjustment screws. Loosening one
screw and tightening the other causes the gear to shift
positions on the shaft, thus affecting the shuttle point
(UL-276).
• To advance the shuttle point, loosen the bottom screw
and tighten the top screw
• To delay the shuttle point, loosen the top screw and
tighten the bottom screw
• The shuttle point should be approxmatly 1/8” (3mm)
from the needle when the needle is on the way down
and level with the hook point. At this position, the hook
is about to enter the loop.
• When the Take-Up UL-135 is at its highest position, the
point of the needle should be about 1/16” below the
plate.
• Time the shuttle point so it just clears the descending
needle. Turn the ywheel back and forth with the
needle point close to the shuttle point to make certain
the needle clears the shuttle point without striking in
either direction.
• NOTE: After timing the shuttle point, it may be nessary
to change the ne adjustment of the needle
UL-276
UL-72
Needle Timing - FINe AdjUSTMeNT
This adjustment should be made AFTER timing the shuttle
point
• Locate the timing gear on the lower, far right cut out of
the casting.
• To raise the the needle, loosen the top screw and
tighten the bottom screw.
• To lower the the needle, loosen the bottom screw and
tighten the top screw.
• When the take up roll is at its highest point, the barb
of the needle should be 1/4” below the surface of the
throat plate.
