Randell PT-W-L Series User Manual

9 OM-PT-W-L SERIES PREP TABLES
Parts List

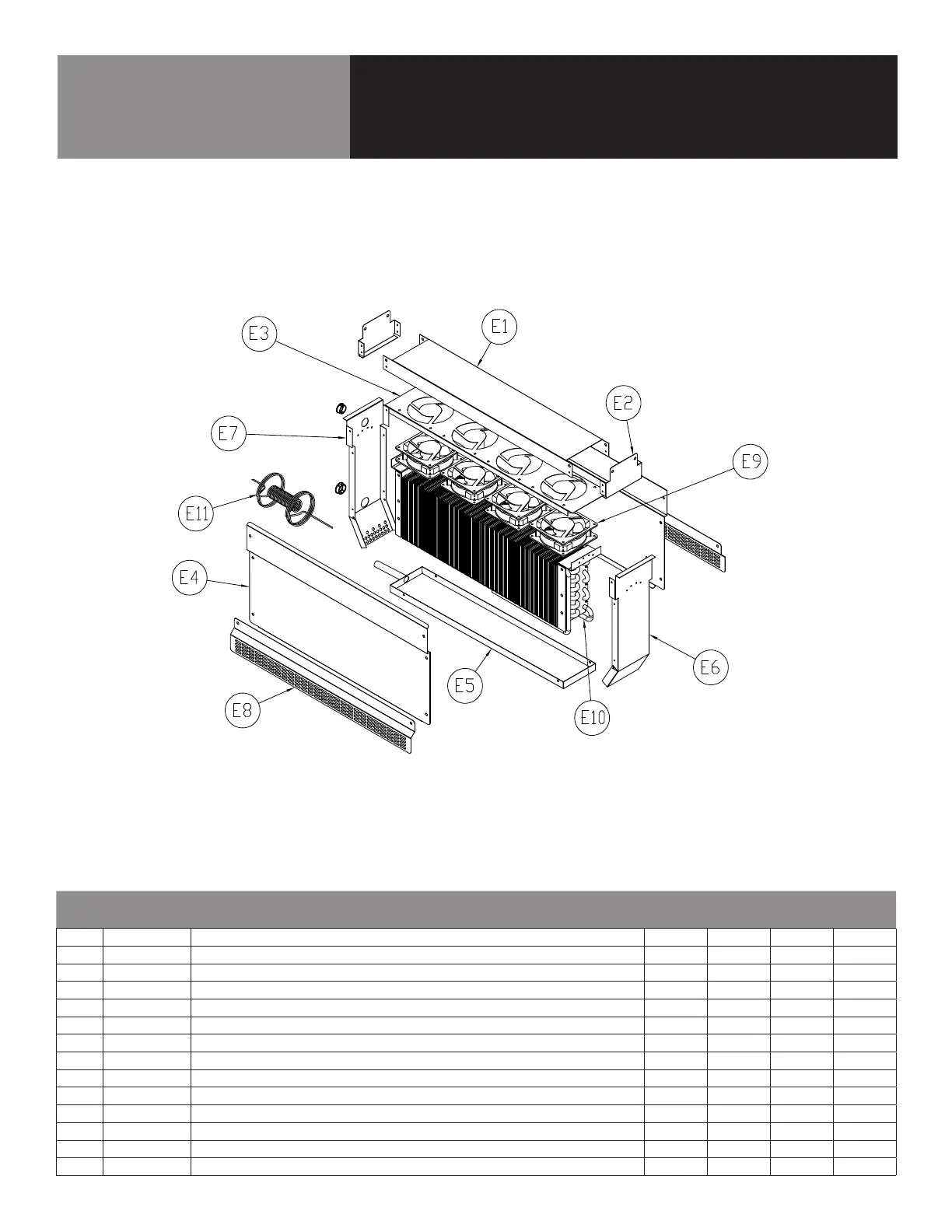

EVAPORATOR COIL
ITEM SERVICE PART DESCRIPTION
PT48-
18W-L
PT60-
24W-L
PT72-
30W-L
PT84-
36W-L
E1 RP GRD2101 EVAP TOP SUPPORT CHANNEL - T07-2140 X X X X
E2 RP GRD2102 EVAP TOP MOUNTING BRACKETS - T07-2142 X X X X
E3 RP SHD2103 EVAP FAN SHROUD, FOUR FAN, T07-2143 -- X X X
E3 RP SHD2104 EVAP FAN SHROUD, SINGLE FAN, T07-2057 X -- -- --
E4 RP CVR2102 EVAP HOUSING COVER, T07-2116 X X X X
E5 RP DRP2102 EVAP HOUSING DRAIN PAN, T07-2121 X X X X
E6 RP FRT2102 EVAP HOUSING FRONT, T07-2120 X X X X
E7 RP BCK2105 EVAP HOUSING REAR, T07-2123 X X X X
E8 RP GRD2103 GUARD, COIL DRAIN PAN, T07-2115 X X X X
E9 RF FAN1401 FAN, AXIAL 119MM X 38MM X X X X
E10 RF COI125 EVAPORATOR COIL X X X X
E11 RP CAP2104 CAP TUBE, T07-2159 X X X X
E11 RF CNT2104 QTIP68-90F-120, 120” BLUE THERMISTOR 10K OHM Q-CURVE BETA 3435 (NOT SHOWN) X X X X
E11 RF CNT2103 QTIP68B-90F-120, 120” BLACK THERMISTOR 10K OHM Q-CURVE BETA 3435 (NOT SHOWN) X X X X
