5 System Components
The system consists of various parts.
●
Two panels that contain the measuring electronics. The first panel (= primary
panel) scans the front of a person. The second panel (= secondary panel) scans
the back of a person. The primary panel controls the secondary panel, therefore
both panels must be connected to each other.
The primary panel shows the silhouette of a person. Otherwise both panels are the
same.
●
A floorplate that provides a stable and even surface for the scanner.
●
A touchscreen monitor to control the scanner. The touchscreen monitor is connec-
ted to the primary panel.
The images show the components of HW 3.50. The components of HW 3.30 are the
same, except for the connectors which are at a different location on the panel.
The R&S LPS is the same as a R&S QPS HW 3.50 but with 30 antenna clusters
instead of 32 in each panel.

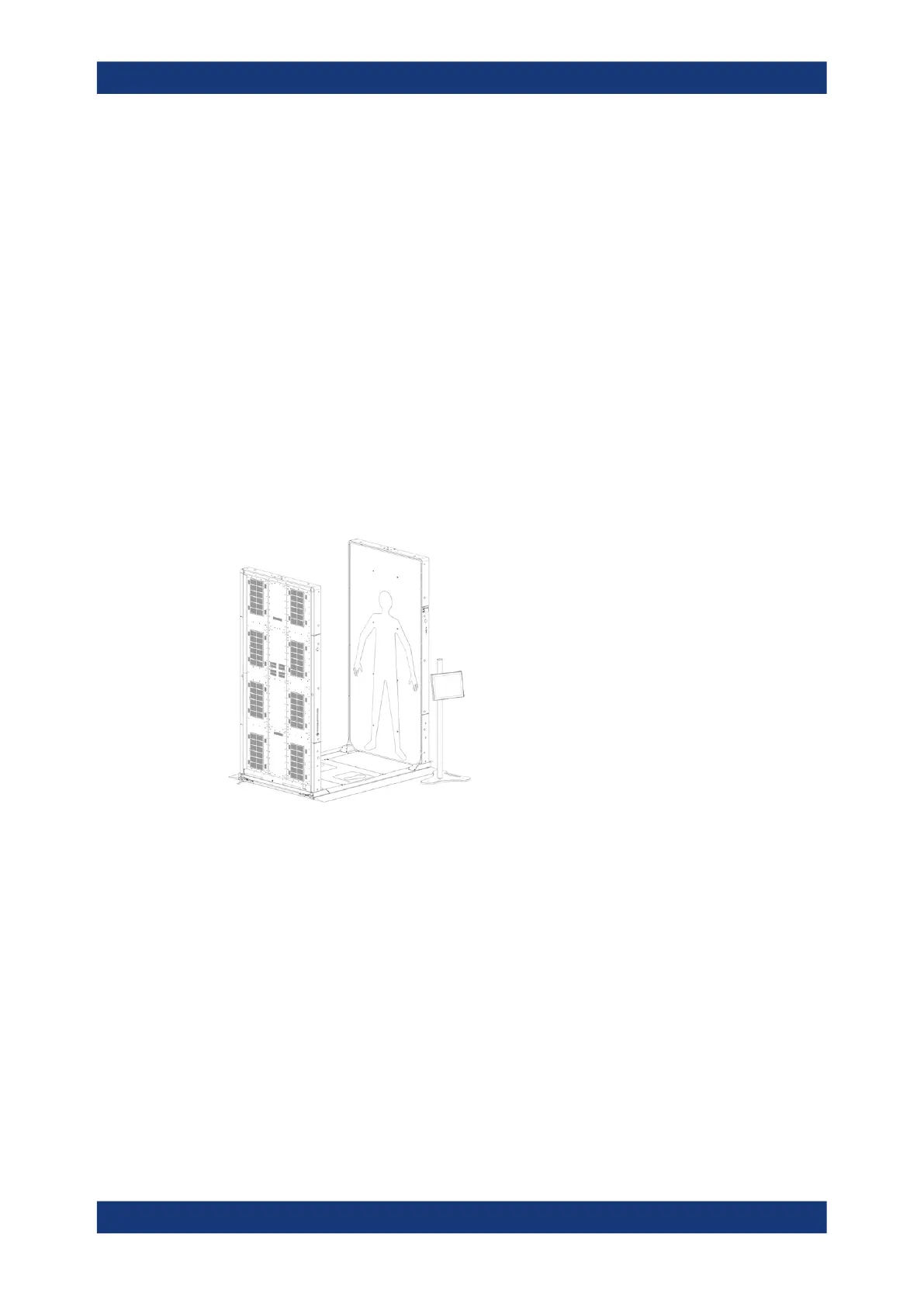

Figure 5-1: Complete system
