6

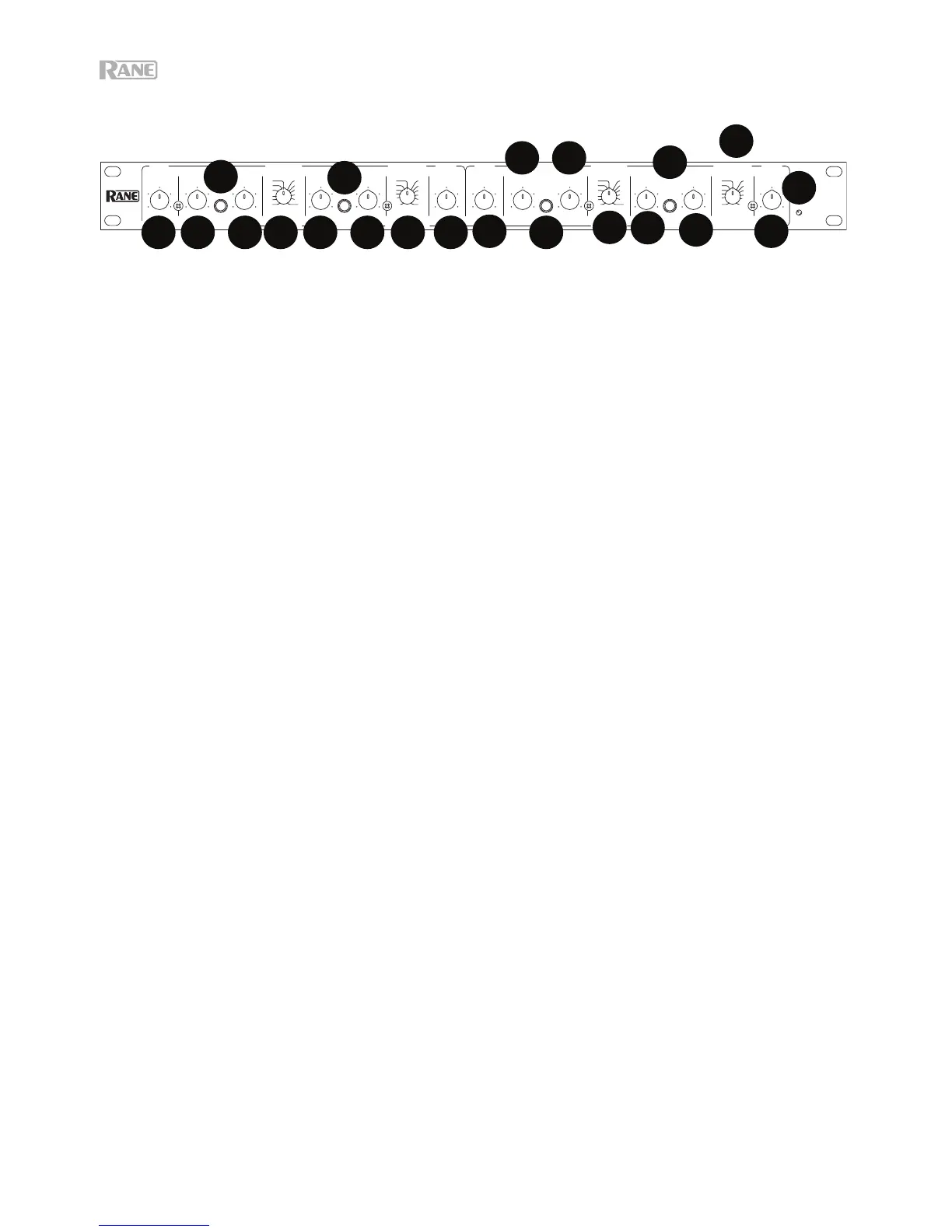

FRONT PANEL: STEREO 3-WAY CONFIGURATION
Observe the labels screened above the controls for stereo operation.
1. Channel 1 Master Level Control: Sets the overall level of Channel 1 without altering the relative settings of
the Low/Mid/High frequency outputs. Unity gain for all level controls is at “7”.
2. Channel 2 Master Level Control: Sets the overall level of Channel 2 without altering the relative settings of
the Low/Mid/High outputs.
3. Low Level Control: Sets the level of signal going to the Low frequency output only in this channel.
4. Low Mute Switch: When pressed to the in position, all signal is removed from the Low frequency output.
5. Low Delay Control: Adds from 0 to 2 ms of time delay to the Low frequency output. This allows a low
frequency driver to be electronically phase-aligned with a mid frequency driver whose diaphragm is situated
behind the low frequency diaphragm.
6. Low / Mid Crossover Frequency Selector: This selector sets the crossover frequency between the Low and
Mid outputs.
7. Mid Level Control: Sets the level of signal going to the Mid output in this channel only.
8. Mid Mute Switch: Removes all signal from the Mid Frequency output when pressed to the in position.
9. Mid Delay Control: Adds from 0 to 2 ms of time delay to this Channel’s Mid output.
10. Mid / High Crossover Frequency Selector: Sets the frequency between the Mid and High outputs in this
channel.
11. High Level Control: Sets the level of signal going to the High output only.
12. Power Indicator: If the power cable is connected and this yellow LED is lit, then the unit ready to operate.
MONO 4W OR 5W: INACTIVE 4W: INACTIVE4W: INACTIVE
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
100
2
4
8
6
MAXMIN
2
4
8
6
MAXMIN
2
4
8
6
MAXMIN
2
4
8
6
MAXMIN
2
4
8
6
100
80 900
850
150
200
240
750
600
400
190
250
7. 0 k
5.8k
550
475
350
700
2.0k
2.8k
4.5k
1.0 k
190
250
7. 0 k
5.8k
550
475
350
700
2.0k
2.8k
4.5k
1.0 k
1k70
4W: MID / HIGH
2W: INACTIVE 2W: INACTIVE 2W: LOW / HIGH 2W: LOW / HIGH2W: INACTIVE2W: INACTIVE 2W: LOW2W: LOW
100
80 900
850
150
200
240
750
600
400
1k70
MUTE
LEVEL LEVEL LEVEL LEVEL
MASTER
LEVEL
MASTER
LEVEL LEVEL LEVEL
MUTE
FREQUENCY
DELAY DELAY DELAY DELAY
FREQUENCY FREQUENCY
MUTE MUTE
AC 23S
ACTIVE
CROSSOVER
CH 2CH 1
FREQUENCY
LOW MID LOW MIDHIGH HIGH
MIDMONO MASTER SUBWOOFER SUB / LOW HIGHLOW LOW / MID
MID / HIGHLOW / MID MID / HIGHLOW / MID
5W: HIGH-MID / HIGH5W: HIGH-MID5W: MID / HIGH-MID
POWER
