DISASSEMBLY PROCEDURES

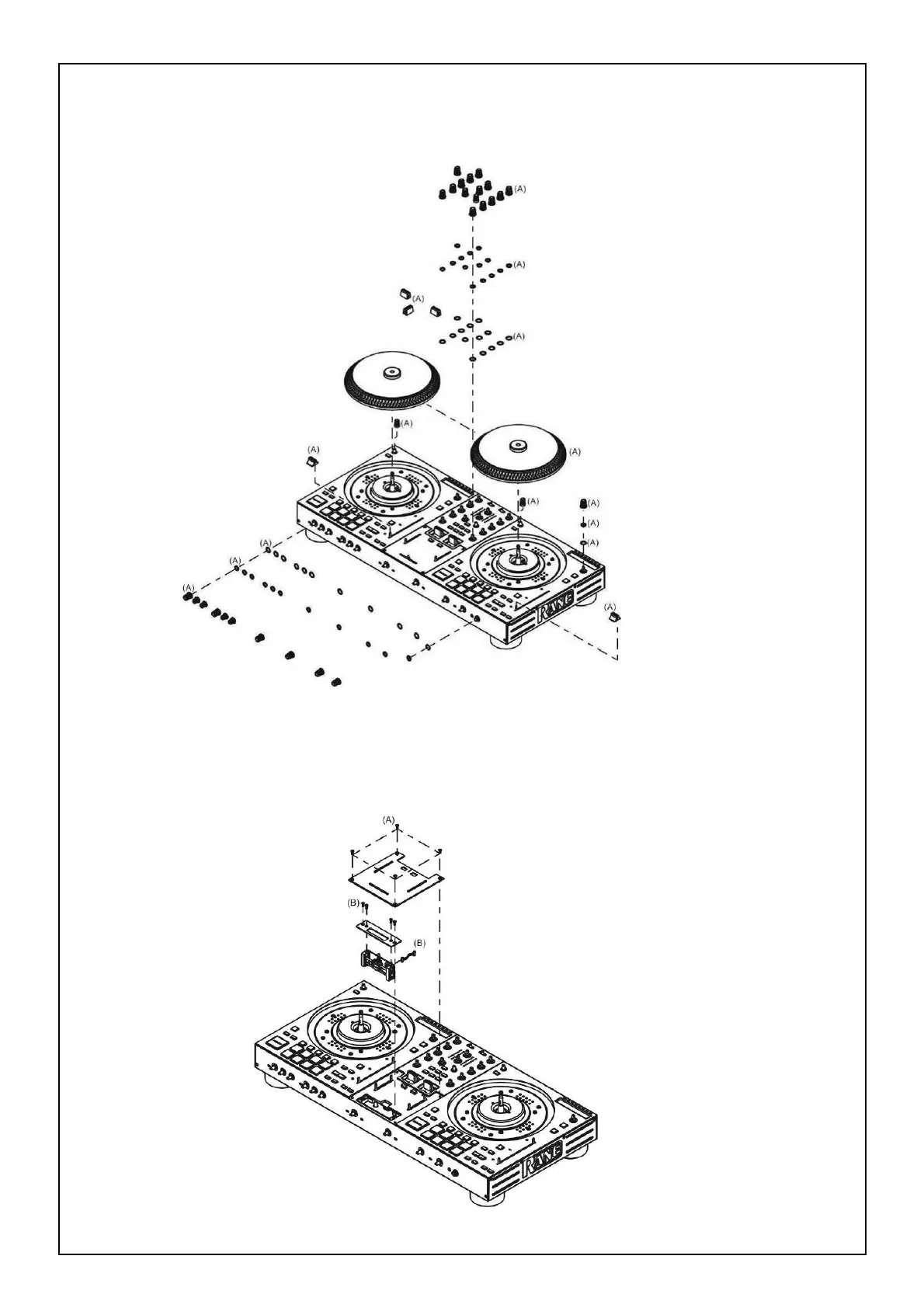

1. REMOVAL OF TOP CABINET. (Fig.1)
(A) REMOVE THE 28 PCS KONB AND 2PCS ALUMI PLATTER AND 5PCS FADER CAP AND 26 PCS
HEXAGON NUT AND 26 PCS
WASHER BEFORE REMOVAL OF TOP CABINET.
Fig.1
2.REMOVAL OF THE CROSS FADER . (Fig.2)
(A) REMOVE THE 4 PCS SCREWS BEFORE REMOVAL OF FIXED PLATE.
(B) REMOVE THE 4 PCS SCREWS AND 1PCS CONNECTOR BEFORE REMOVAL OF CROSS FADER .
Fig.2
