Rane ONE - Removal of Front PCB Assembly and Bottom Chassis; Removal of Main PCB Assembly and DC Fan

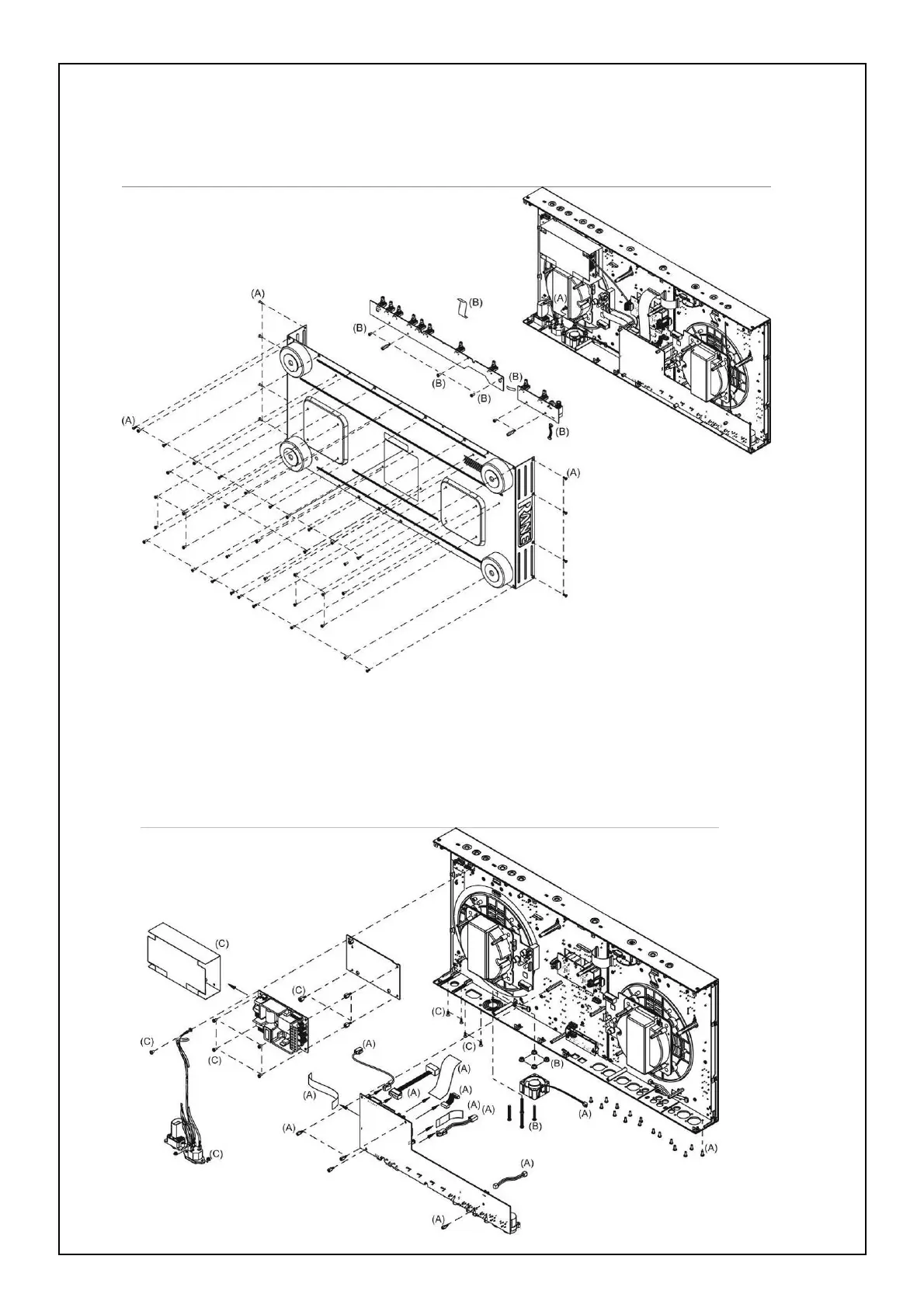

3.REMOVAL OF THE FRONT PCB ASSEMBLY(SMT/DIP) AND RIHGT FRONT PCB DIP
ASSEMBLY AND BOTTOM CHASSIS. (Fig.3)
(A) REMOVE THE 44 PCS SCREWS BEFORE REMOVAL OF BOTTOM CHASSIS.
(B)
REMOVE THE 4 PCS SCREWS AND 2 PCS COPPER AND 3 PCS CONNECTOR BEFORE REMOVAL OF FRONT
PCB(SMT/DIP) AND RIHGT FRONT PCB ASSEMBLY.
Fig.3
4.REMOVAL OF THE MAIN PCB ASSEMBLY(SMT/DIP)AND OPEN FRAME TYPE 28V/5.36A
AND DC FAN. (Fig.4)
(A) REMOVE THE 16 PCS SCREWS AND 9 PCS CONNECTOR AND 4 PCS COPPER BEFORE REMOVAL OF
MAIN PCB ASSEMBLY,(SMT/DIP).
(B) REMOVE THE 4 PCS SCREWS AND 4 PCS FLANGE SCREW NUT BEFORE REMOVAL OF DC FAN.
(C) REMOVE THE 9 PCS SCREWS AND 3 PCS COPPER AND 2 PCS NUT AND 1 PC
NAME PLATE BEFORE
REMOVAL OF OPEN FRAME TYPE 28V/5.36A.
Fig.4
