5.REMOVAL OF THE DD MOTOR AND START/STOP PCB DIP ASSEMBLY AND TOGGLE
SWITCH PCB DIP ASSEMBLY AND RIGHT PCB ASSEMBLY(SMT/DIP) AND LEFT PCB
ASSEMBLY(DIP) AND RIHGT FRONT PCB DIP ASSEMBLY AND FSR PCB
ASSEMBLY(SMT). (Fig.5)
(A) REMOVE THE 8 PCS SCREWS AND 6 PCS WASHER AND 2 PCS WASHER EXTERNAL BEFORE
REMOVAL OF
DD MOTOR.
(B) REMOVE THE 12 PCS SCREWS AND 4 PCS CONNECTOR BEFORE REMOVAL OF START/STOP PCB
DIP AND
TOGGLE SWITCH PCB DIP ASSEMBLY.
(C) REMOVE THE 60 PCS SCREWS AND 4 PCS CONNECTOR AND 8 PCS COPPER BEFORE REMOVAL OF
RIGHT PCB ASSEMBLY(SMT/DIP) AND
LEFT PCB ASSEMBLY(DIP) AND RIHGT FRONT PCB DIP
ASSEMBLY.
(D) REMOVE THE 2 PC CONNECTOR BEFORE REMOVAL OF FSR PCB ASSEMBLY(SMT).

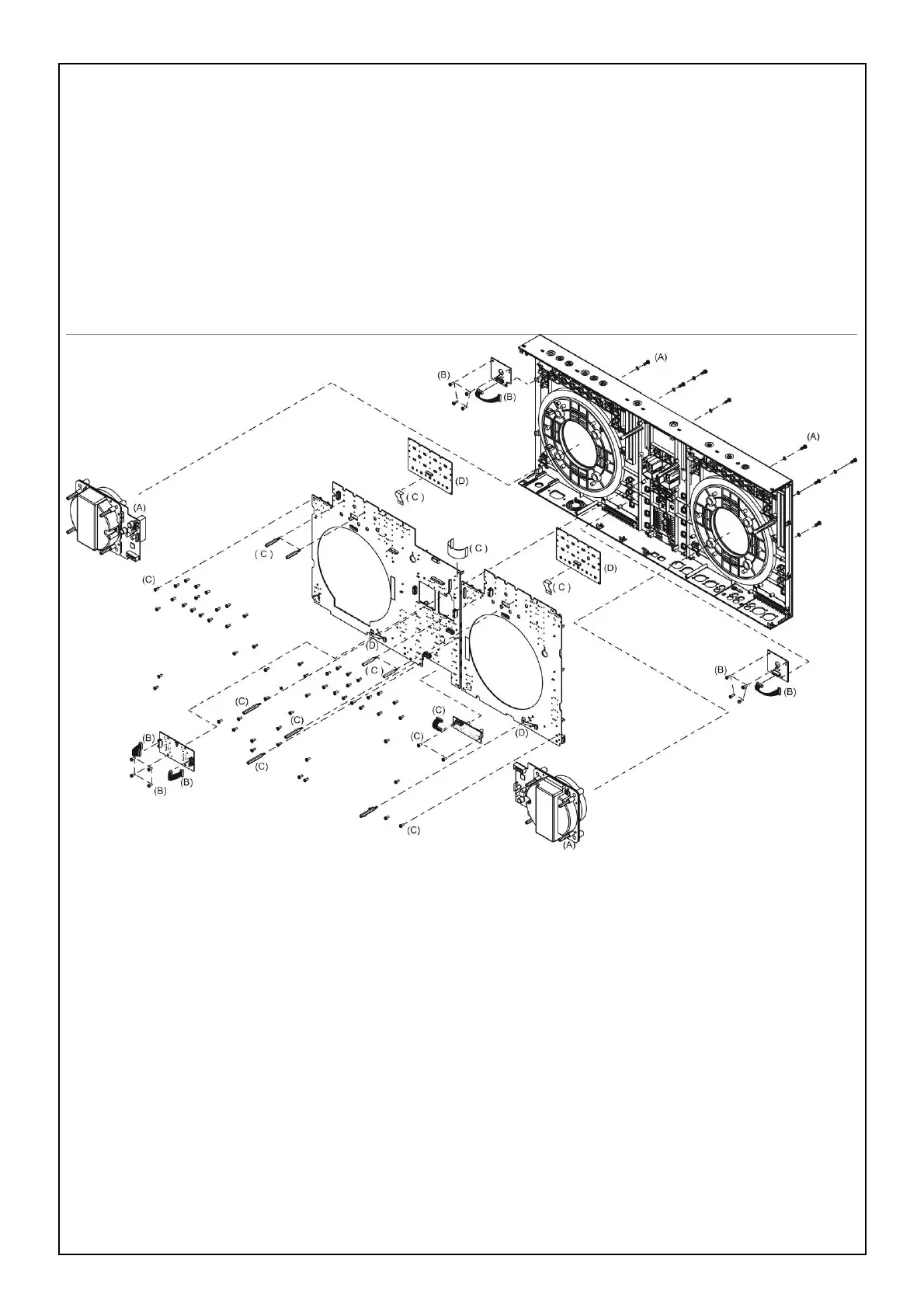

Fig.5
