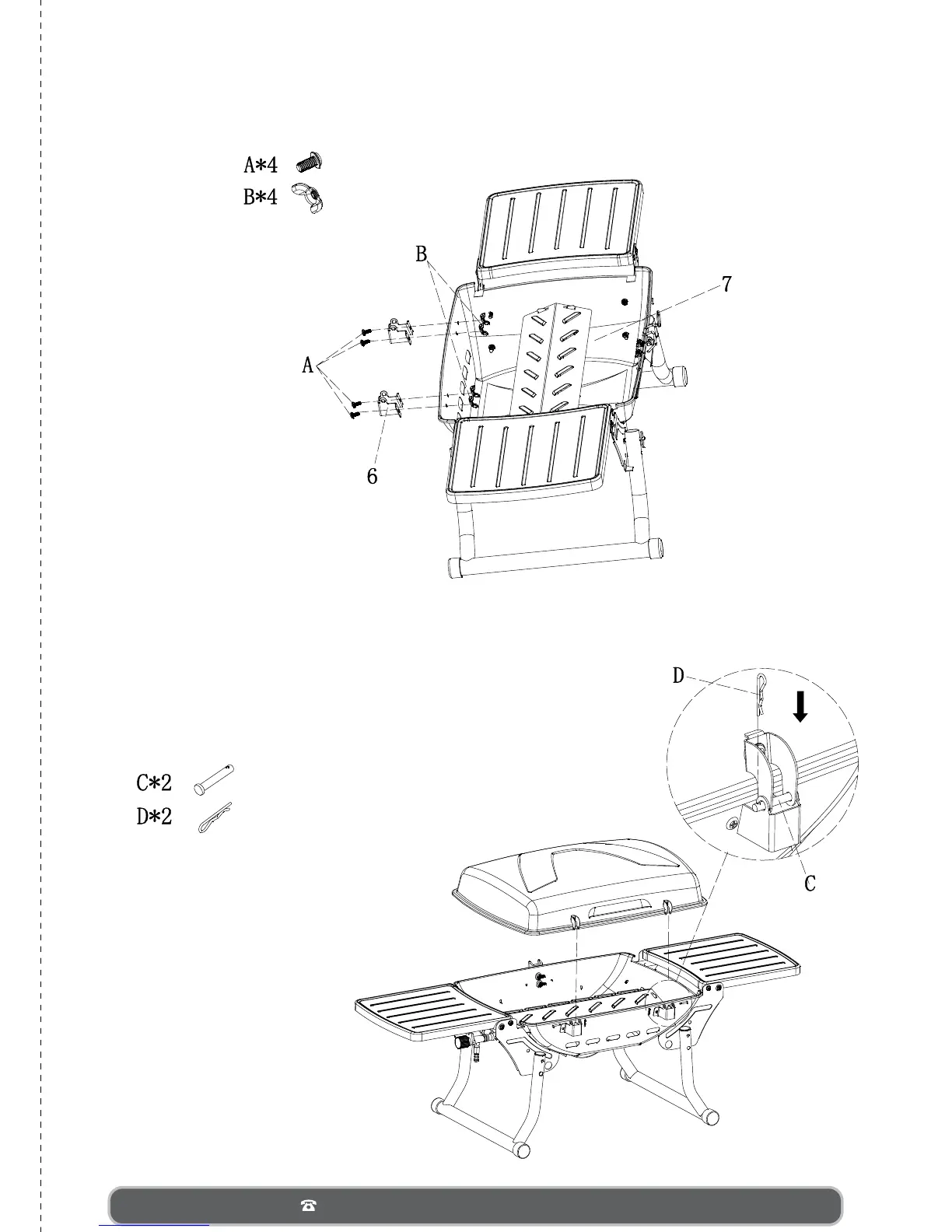

STEP 2ATTACHBOTTOMHINGE
— Attach bottom hinge to the Body using 4 sets of screw(A), and 2 wing nuts (B).
— InserttheHeatshield(7)overtheburner.
STEP 3ATTACHLID
— Insert the top hinge into the bottom hinge.
 Note:Iftophingedoesnottthebottomhinge,gentlysqueezetophingetabtogether.
— Secure with pin (C) and cotter pin (D).
C*2
D*2
C
D
B
A
A*4
B*4
6
7
