ELECTRICAL FEEDER CABLE CONNECTION

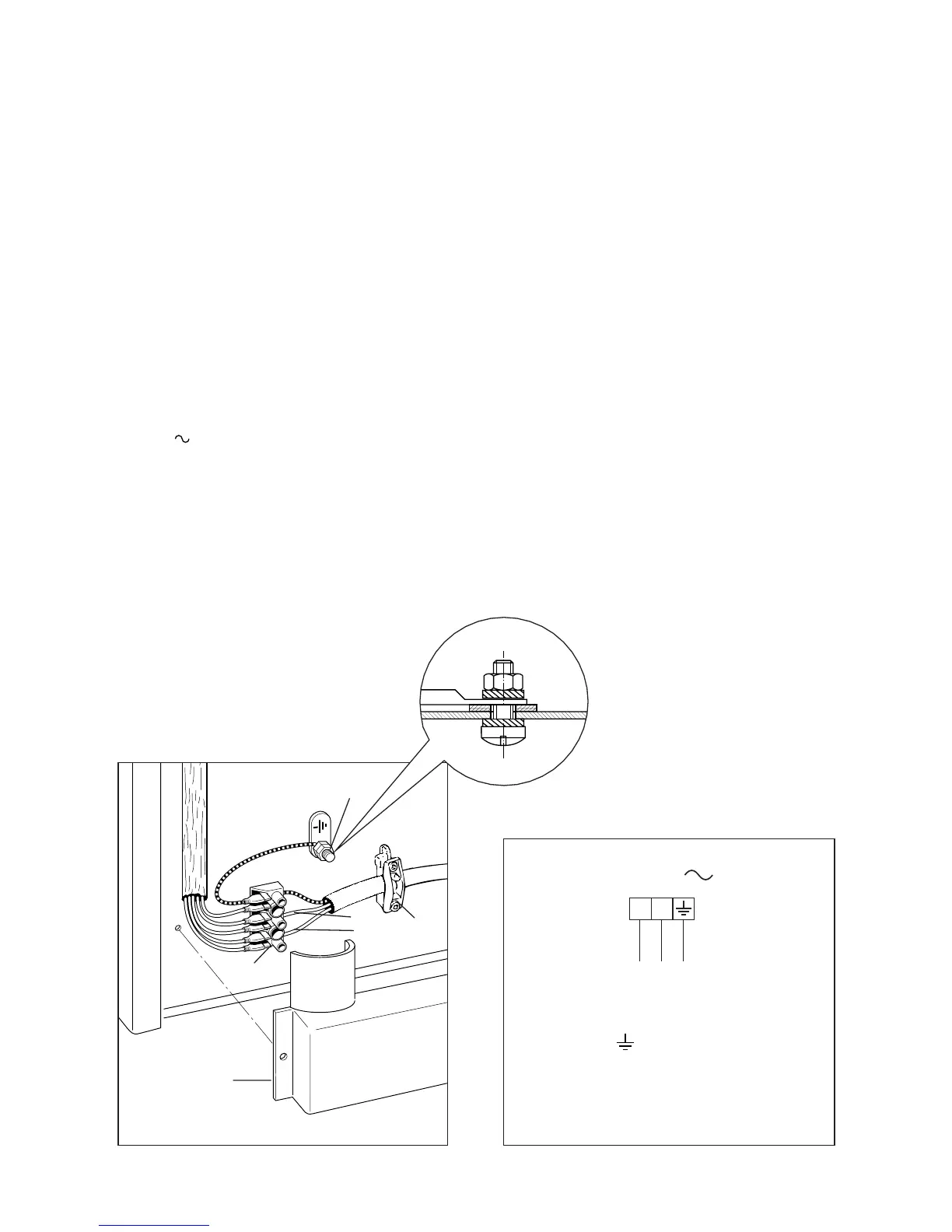

To connect the feeder cable to the cooker it is necessary to:
– Remove the screw that hold shield “A” behind the cooker (fig. 11.1).
– Insert the feeder cable of the suitable section (as described in the next chapter) into
the cable clamp “D”.
– Connect the phase and earth cables to the terminal block “B” according to the dia-
gram in figure 11.2.
– Pull the feeder cable and block it with cable clamp “D”.
– Re-mount shield “A”.
