rangeiot OrangeIOT RZ - Install Exterior Assembly; Install Interior Assembly; Detect Left;Right Hand Door Installation

3

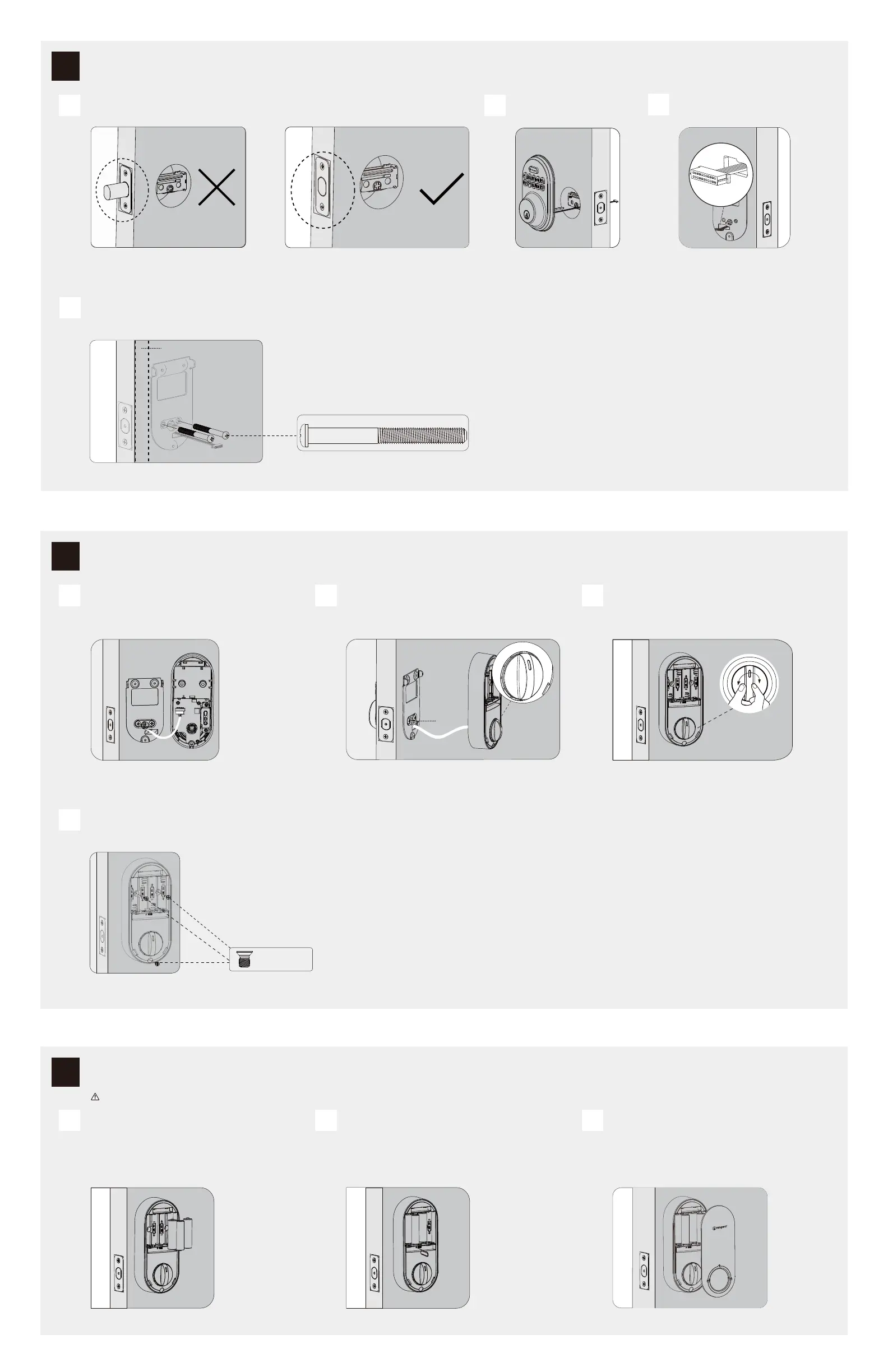

Install exterior assembly
A
Send the cable through the bottom
horizontal slot in the mounting plate.
C
Secure the mounting plate with the supplied screws.
D
IMPORTANT: Before installation, make sure the latch
is fully retracted (in the unlocked position) .
Route the cable below the latch
B
2 / 6
4
Install interior assembly
Connect the cable and ensure tight cable connection.
A
Secure the interior assembly
with the supplied screws.
D
Rotate the turnpiece in vertical position and the torque
blade in horizontal position, make sure the latch is
still fully retracted (in the unlocked position).
B
Test operation using backup key and thumbpiece
for smooth rotation.If turnpiece doesn’t rotate,
repeat step 4B, making sure the turnpiece in vertical
position, and touque blade in horizontal position.
C
5
Detect left/ right hand door installation
While the door is OPEN and UNLOCK, load 3 AA batteries
into the interior assembly. For best results, use new,
non-rechargeable Alkaline batteries only.
Press and hold the Reset button on the interior assembly
using a pen or a paper clip.
Reset the lock to teach the lock the orientation of the door.
A
Load the last battery and keep holding the reset button
for 3 seconds, until you hear the sound of “beep”. The
latch bolt will extend to learn the orientation of the door.
B
Re-install battery cover.
C
J
K
IMPORTANT:This step is required and crucial for the lock to operate properly.
Actual Size
Actual Size
Keep Parallel to door edge.
Horizontal
