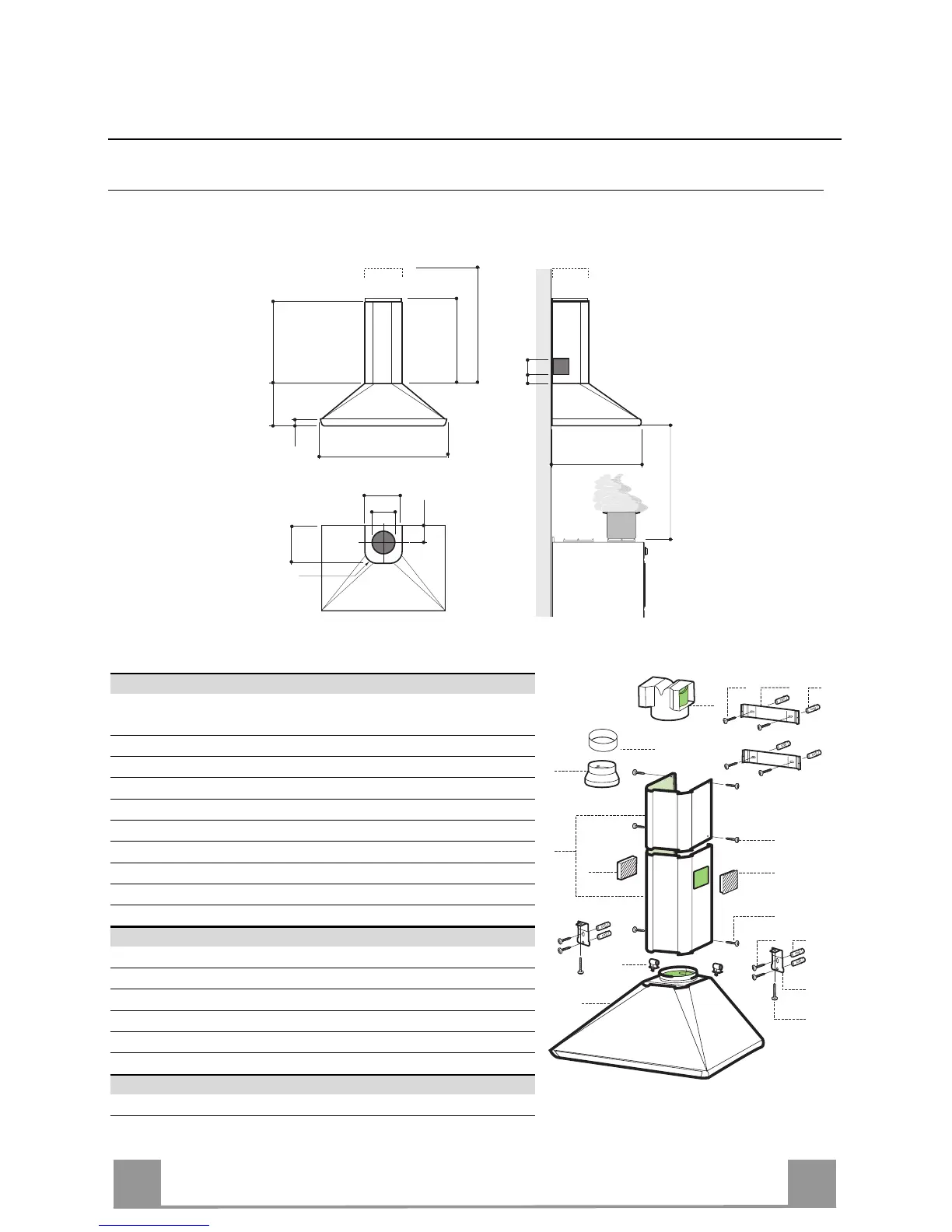

CHARACTERISTICS
Dimensions
650 min.
200
100
ø150
698 - 898
190
240
30
9055
r 58
492
360
min 560
max 760
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2 1 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
8a 1 Right Air Outlet Grill
8b 1 Left Air Outlet Grill
9 1 Reducer Flange ø 150-120 mm
10 1 Adapting ring ø 120-125 mm
15 1 Air Outlet Connection
17 2 Lower Chimney Fixing Bush
Ref. Q.ty Installation Components
7.1 2 Hood Body Fixing Brackets
7.2.1 2 Upper Chimney Section Fixing Brackets
11 8 Wall Plugs
12a 8 Screws 4.2 x 44,4
12c 6 Screws 2.9 x 9.5
12d 2 Screws M4 x 25
Q.ty Documentation
1 Instruction Manual
11
17
9
12e
1
7.1
7.2.1
12a 11
12a
12e
12d
2.1
2.2
2
8b
8a
15
10
