EN
4
4

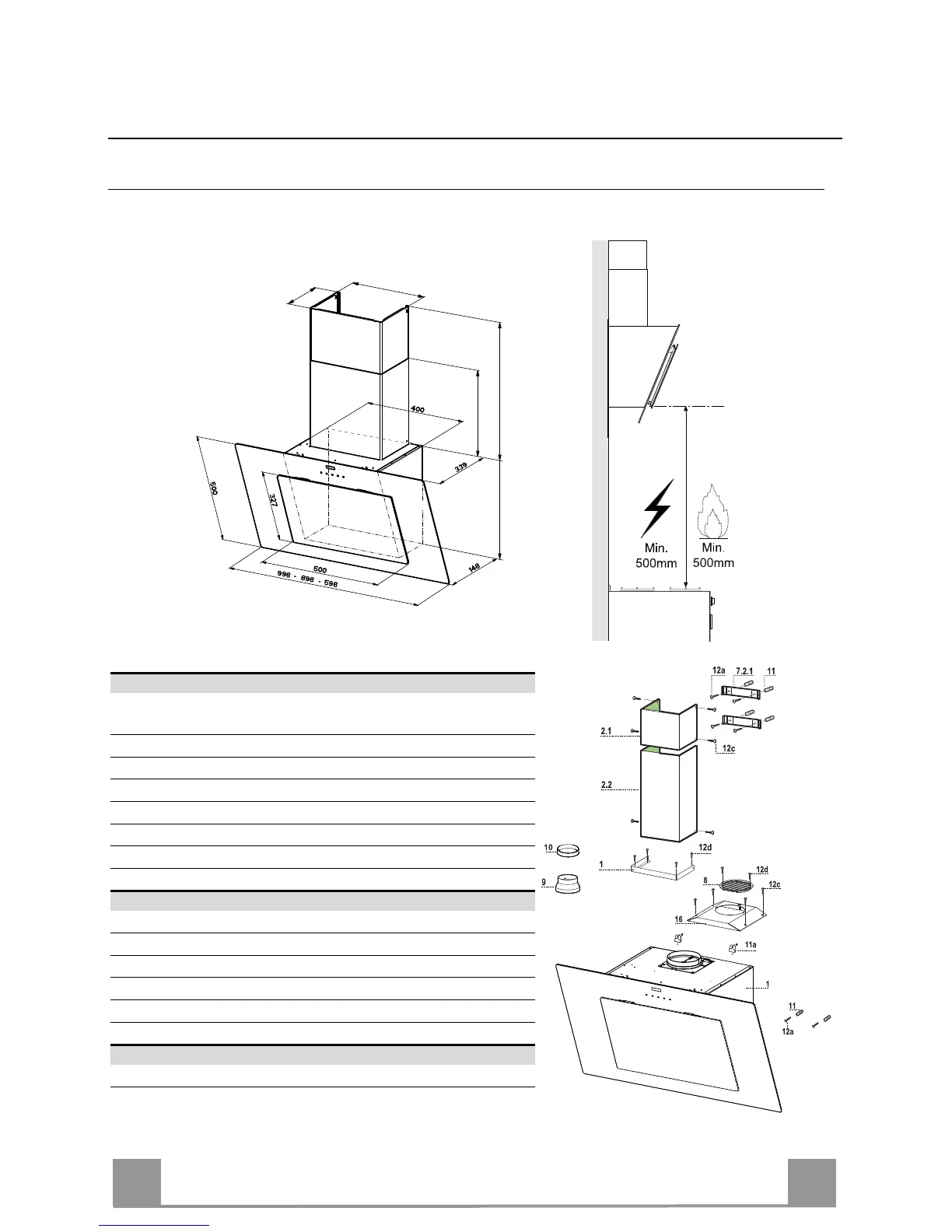

CHARACTERISTICS
Dimensions
330
380
Min. 330 - Max. 640
300
200
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2.1 1 Upper Section
2.2 1 Lower Section
8 1 Directional Air Outlet grille
9 1 Reducer Flange ø 150 – 120 mm
10 1 Adapting ring ø 120-125 mm
15 1 Angle iron
16 1 Filter cover
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
11 6 Wall Plugs
11a 2 Wall Plugs SB 12/10
12a 6 Screws 4,2 x 44,4
12c 10 Screws 2,9 x 6,5
12d 6 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
5
