Rangemaster OPLHD60 - Fitting the Hood Body; Air Exhaust Connections

EN
6
6

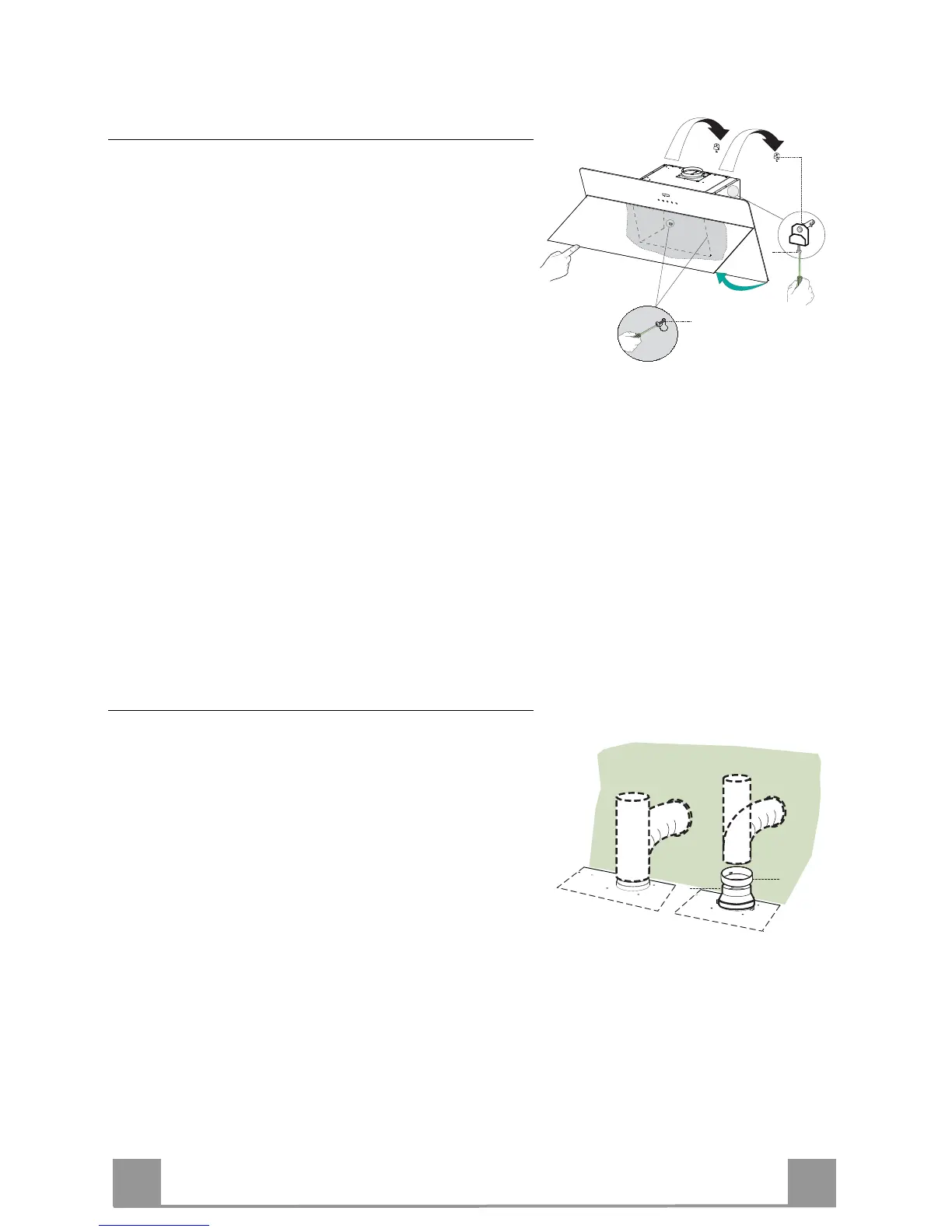

Fitting the hood body
• Open the doors/the door (See section Open Panels).
• Remove the Metal grease filters using the handles
provided.
• Adjust the two screws Vr, in the brackets 11a, so that
they are at the start of their travel.
• Hook the hood body to the two brackets 11a.
• From the inside of the hood body, turn screws Vr to
level the hood body itself.
• Fasten the safety screw 12a.
• Close the doors/the door again.
12a
Vr
11a
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid pipe ø 150
or 125 mm, the choice of which is left to the installer.
• To install a ø 125 mm air exhaust connection, insert
the reducer flange 9 on the hood body air outlet and
the adapting ring ø120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Remove any activated charcoal filters.
9
ø 125
10
ø 150
