CARE AND CLEANING
Door alignment
The door should be parallel to the sides and top of the
refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the hinge
adapter brackets to the door and adjusting the door side to
side. Use a 5/32” hex key for this procedure. (See Figure 7
below).

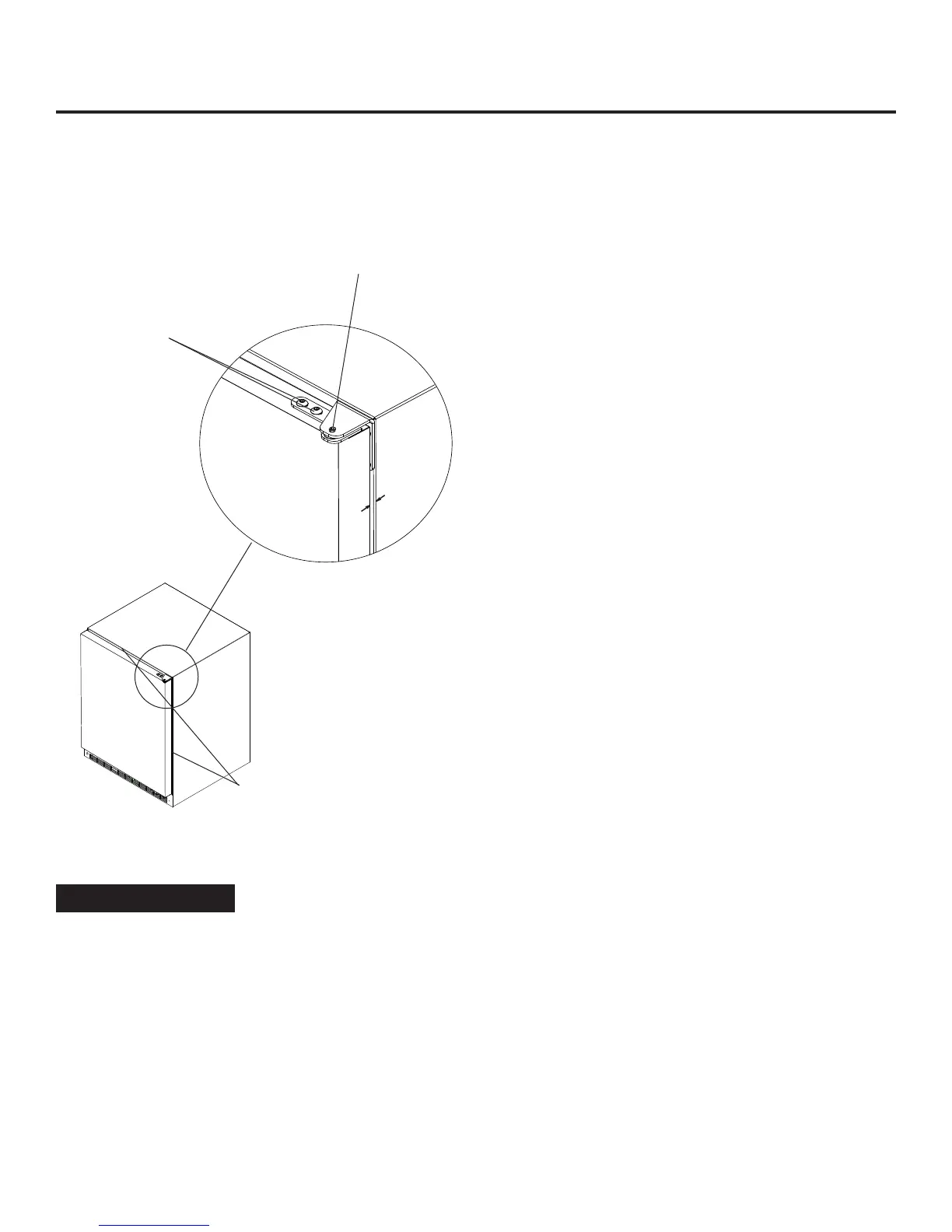

Figure 7
Hinge adapter screws,
loosen these to adjust
door, on the top and bot-
tom of the door.
Remove the top
hinge pin to re-
move the door.
Door must be
parallel to top
and sides of
refrigerator.
NOTE: For door closer to work properly it is necessary to
maintain a minimum space of 7.1mm between door and
cabinet flange as shown. This space can be adjusted by
adjusting the top and bottom hinge adapters.
NOTE
7.1mm
minimum
