3 Delivery format
In separate elements, insulation jacket packed in card-
board box.
3.1 Accessories
 Control panel SP 100
 Control panel SP 2.2 for operation of F 310 with two-
stage burner.
 Rapidomatic
®
Z2.3SM or rapidomatic
®
Z3.3SM
for installation in control panel SP 2.2.
 Longitudinal insulation fasteners for reduction of struc-
ture-borne noise transmission.
Type F 310 /9 /10 /11 /12 /13 /14 /15 /16
Nominal heating capacity from/to kW 285-338 339-390 391-444 445-498 499-539 540-600 601-654 655-708
Nominal heating load from/to kW 307-369 366-425 421-484 478-542 537-598 582-665 647-714 707-775
Nominal efficiency 80/60 % 91,6 91,5 91,7 91,9 91,8 91,5 91,6 91,2
Heating gas-side resistance mbar 1,4 1,9 2,4 3,4 4,0 4,5 4,8 5,0
Required supply pressure mbar 0
Water supply-side resistance
when T
v
-T
r
= 10 K mbar 56 72 88 108 136 168 200 228
when T
v
-T
r
= 20 K mbar 14 18 22 27 34 42 50 57
Flue temperature with 80/60 from/to °C 160-186 160-183 160-187 160-193
Exhaust flow measurement with EL
heating oil and 13% CO
2
from/to kg/h 468-564 558-650 642-739 729-827 819-896 888-1001 987-1090 1079-1183
Exhaust flow measurement with
natural gas and 10% CO
2
from/to kg/h 470-565 561-651 645-741 732-830 822-899 891-1005 991-1094 1083-1187
Permitted max. excess pressure bar 5,5
Max. advance temperature °C85
Boiler gas content m³ 0,48 0,53 0,58 0,63 0,68 0,73 0,78 0,83
Water content l 159 176 193 210 227 244 261 278
Flue connection Ø mm 300
Combustion chamber depth mm 1320 1470 1620 1770 1920 2070 2220 2370
Advance/back-flow connection DN 100
Weight kg 1145 1250 1355 1460 1565 1670 1775 1880
Operational loss % 0,24 0,22 0,21 0,20 0,19 0,18 0,18 0,17
CE product ID No. CE-0063AT3421
Construction type-approval No. 08-226-161

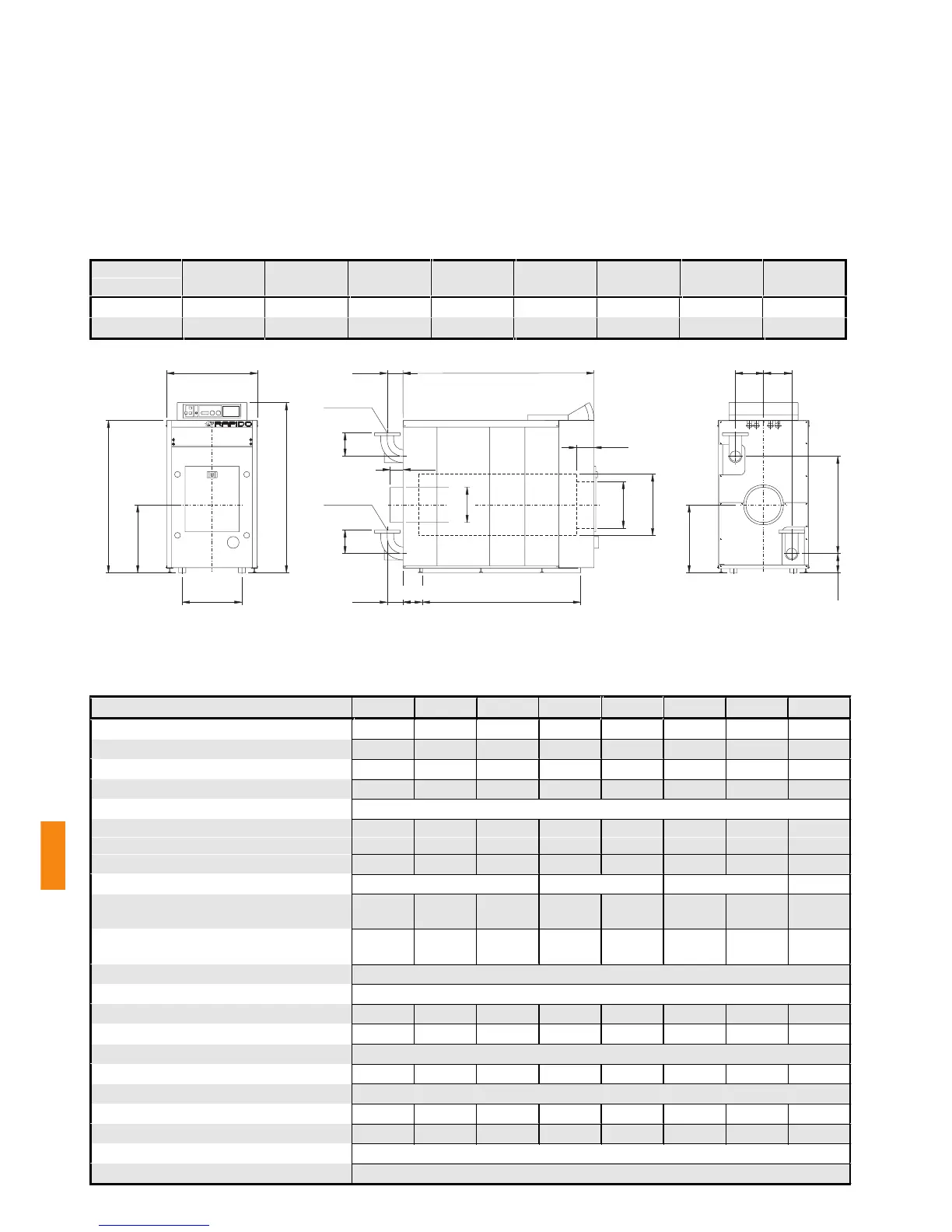

4 Dimensions
240240
Ø 400
150
200
200
165 830
580
T1135
110
T
130
Di=ø100
Di=ø 100
510
775
580
1300
1452
Ø 525
165
Ø 300
Measurements
mm
F 310/9 F 310/10 F 310/11 F 310/12 F 310/13 F 310/14 F 310/15 F 310/16
T 1630 1780 1930 2080 2230 2380 2530 2680
T1 1350 1500 1650 1800 1950 2100 2250 2400
Front view Side view from left Rear view
5 Technical data
