RAS MULTIBEND 9000 - Page 26

RE CEIVI
NG.
INSPECTION,
TRANSPP.B-T,
-
-.
i
i EAi"i
i{
d'
I iu's-r[t-LATI
o
t t A
N
D c o
lvt
M I
s
s
I
o
N
I N G
RAS

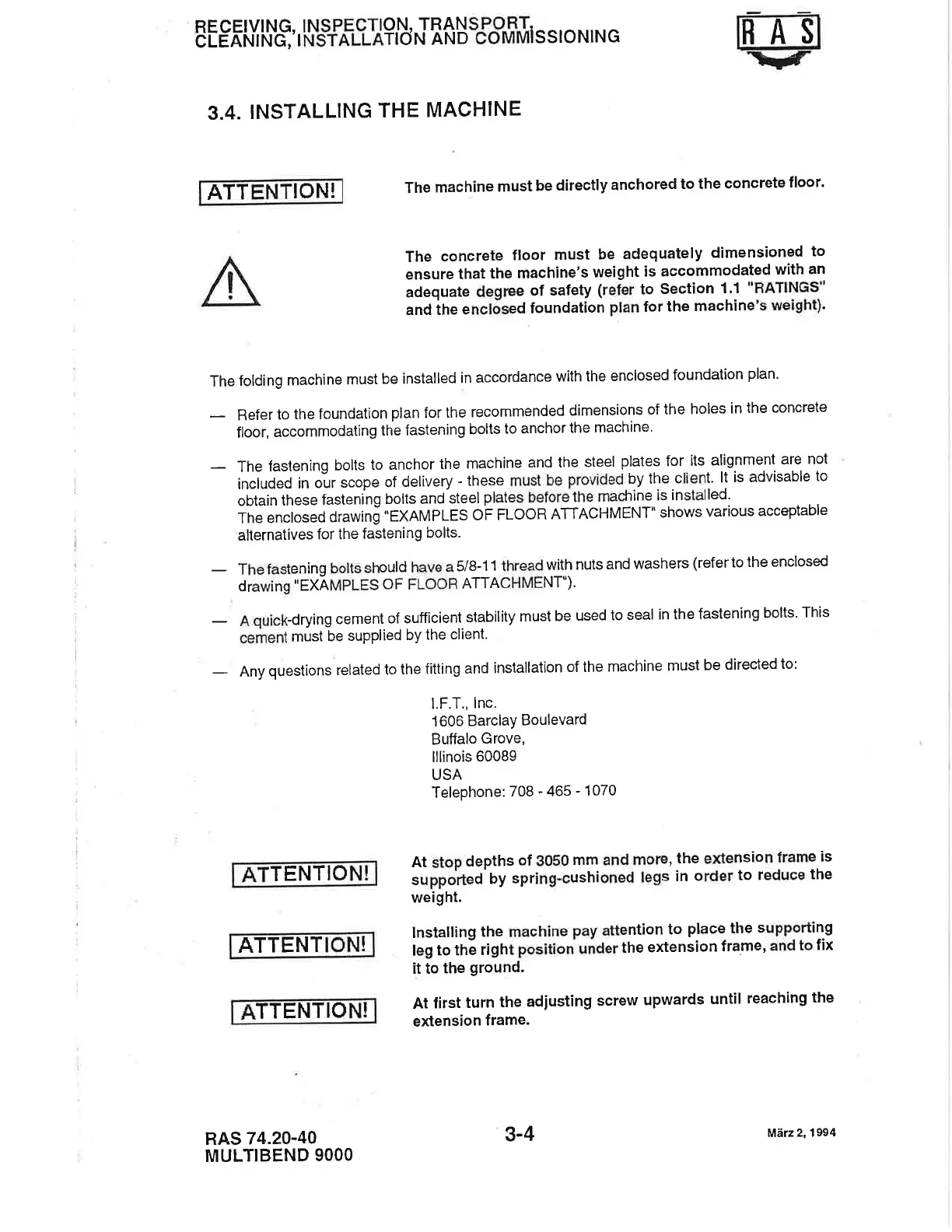

3.4.
INSTALLING
THE
MACHINE
ATT
toN!
The
machine
must
be
directly
anchored
to the
concrete
floor'
The
concrete
floor
must
be
adequately
dimensioned
to
ensure
that
the
machine's
weight
is
accommodated
with
an
adequate
degree
of safety
(refer
to
Section
1.1
"RATINGS"
and
ihe
enctJsed
foundation
plan
for
the
machine's
weight)'
The
folding
machine
must
be
installed
in
accordance
with
the
enclosed
foundation
plan.
-
Refer
to
the foundation
plan
for
the
recommended
dimensions
of
the holes
in the
concrete
floor,
accommodating
tl-re fastening
bolts
to anchor
the
machine.
-
The
fastening
bolfs
to
anchor
the
machine
and
the
steel
plates
for
its
alignment
are
not
included
in
our
scope
of
delivery
-
these
must
be
provided.by
the
client.
lt is
advisable
to
obtain
these
fastening
bolts
and
steel
plates
before
the
machine
is installed.
The
enclosed
drawini
"EXAMPLES
Or
rloon
ATTACHMENT"
shows
various
acceptable
alternatives
for the
fastening
bolts'
-
The
fastening
bolts
should
have
a
5/8-1
1
thread
with
nuts
and washers
(refer to the
enclosed
drawing'EXAMPLES
OF
FLOOR
AfiACHMENT").
-
A
quick-drying cement
of
sufficient
stability
must
be
used
to seal
in the
fastening
bolts.
This
cement
must
be
supplied
by the
client'
-
Any
questions
related
to
the
fitting
and
inslallation
of the
machine
must
be
directed
to:
l.F,T.,
lnc.
1606
BarclaY
Boulevard
Buffalo
Grove,
lllinois
60089
USA
TelePhone:
708
-
465
-
1070
TENTIO
ATTENT
I
TTENTIO
I
RAS
74.20-40
MULTIBEND
9OOO
At
stop
depths
of
3050
mm
and
more,
the
extension
frame
is
supported-by
spring-cushioned
legs
in
order
to
reduce
the
weight.
lnstalling
the
machine
pay
attention
to
place the
supporting
leg
to th6
right
position under
the
extension
frame,
and
to fix
it to
the
ground.
At
lirst
turn
the
adjusting
screw
upwards
until
reaching
the
extension
frame.
3-4
Miirz
2, 1994
