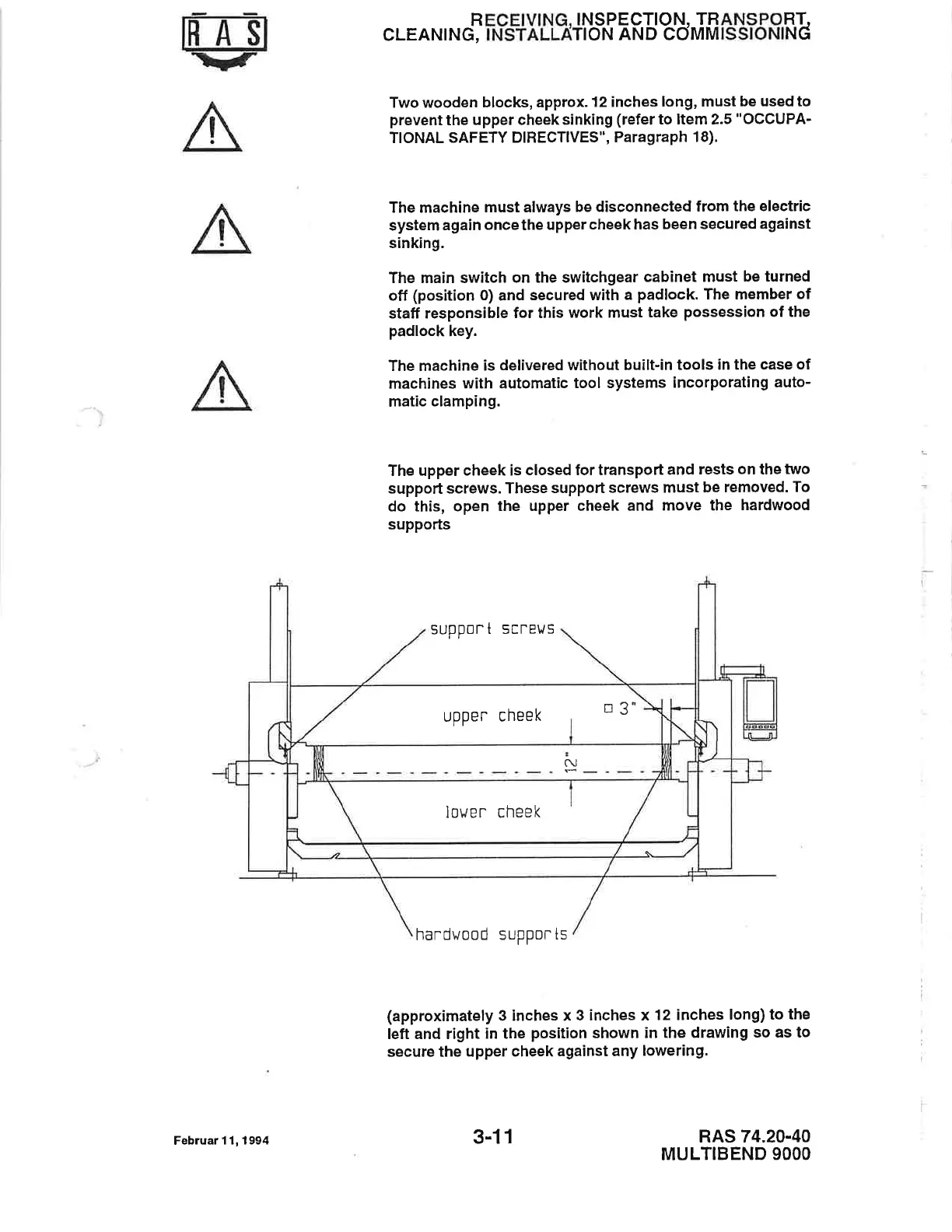

RAS MULTIBEND 9000 - Page 33

RECEIVING.
INSPECTION. TRANSPORT,
CLEANING,
INSTALLATION
AND COMMISSIONING
Two wooden
blocks, approx.
12 inches
long, must be
used to
prevent
the
upper cheek
sinking
(refer to ltem 2.5
"OCCUPA-
TIONAL SAFETY
DIRECTIVES",
Paragraph
18).
The machine
must always
be disconnected
from
the electric
system
again
once
the
upper
cheek has been
secured against
sinking.
The
main switch
on the switchgear
cabinet must be
turned
off
(position
0) and
secured with a
padlock.
The member
of
statf responsible
for this
work must take
possession
of the
padlock
key.
The machine
is delivered
without
built-in tools
in the
case of
machines with
automatic
tool systems
incorporating
auto-
matic
clamping.
The upper
cheek is
closed for transpod
and
rests on the
two
support
screws. These
suppott
screws must
be removed.
To
do
this,
open
the upper
cheek and move
the hardwood
supports
support
screws
hardwood
supports
(approximately
3 inches x
3 inches x
12 inches
long) to
the
left and right
in the
position
shown in the
drawing
so as to
secure the upper
cheek
against any
lowering.
RAS 74.20-40
MULTIBEND 9OOO
tr3"
uppen
cheek
lower cheek
C\
Februar
11,1994
3-11
