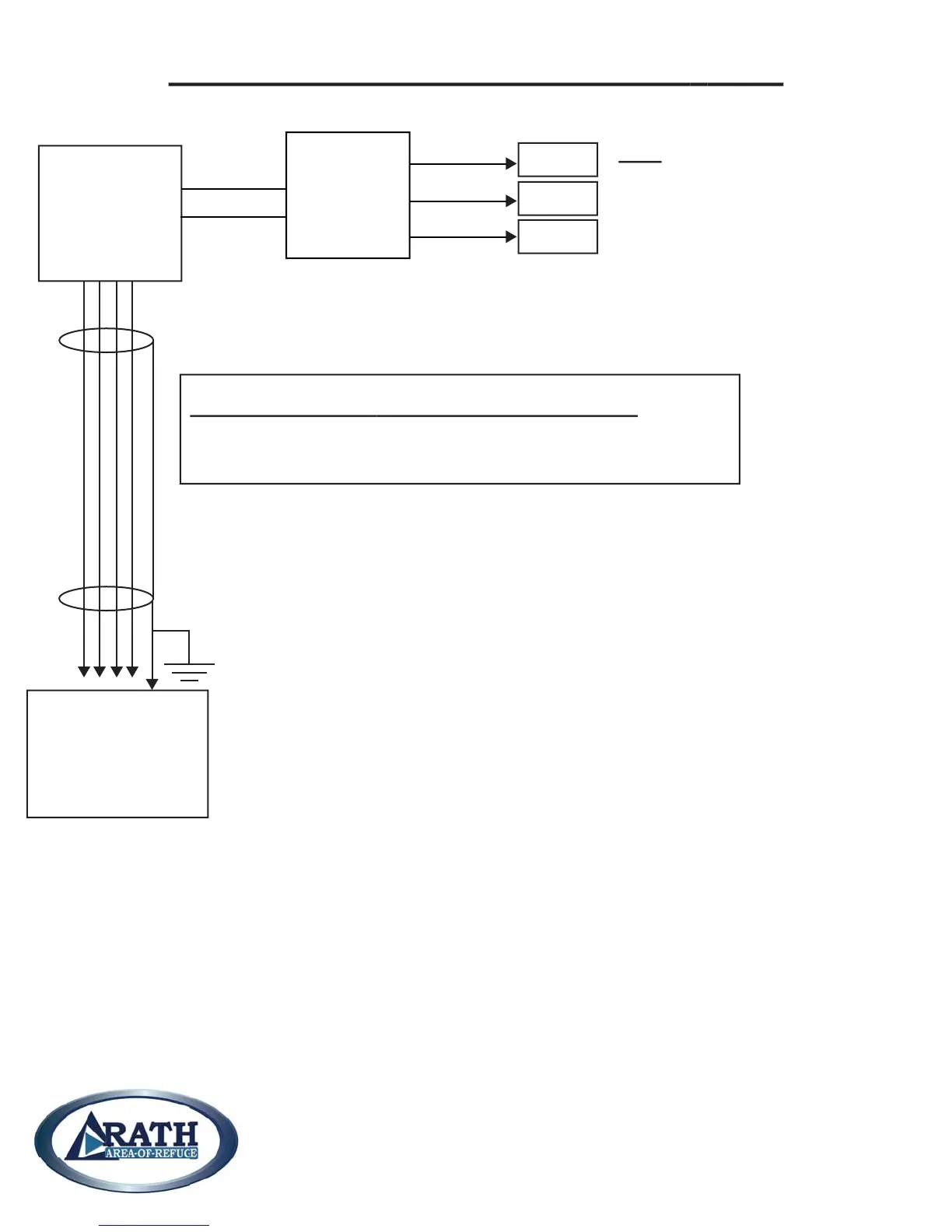

Power Supply to Call Box Wiring Diagram

2100-_____

Call Box

24 Volt

Power Supply

120 vac

0 vac

Ground

2500-_____

SmartRescue

Base Station

pg. 3

Note: A three prong plug is included

with the Power Supply

Conduit with electrical can also be

attached to the Power Supply

Wiring requirements for Power Supply to Call Box

1) Minimum requirement is: 18 awg, 1 pair wire
