Rath Refuge Command Center User Manual

Card Wiring for 12-36 Zone System
A. On back of unit, remove two screws in top left and right and slide cover off unit to expose internal cards.
B. On top of each card there is a table indicating what each port on that card is.
1. SLT is the port used for connecting Emergency Phones
2. DKP is the port used for connecting Base Station phone(s)
3. TWT is the port used for outside telco line
C. The first card installed will always be:
1. Port 1: (S01-S04) Connection for 4 Emergency Phones
2. Port 2: (S05-S06) Connection for 2 Telco Lines
3. Port 3: (S07-S08) Connection for 2 Base Station Phones

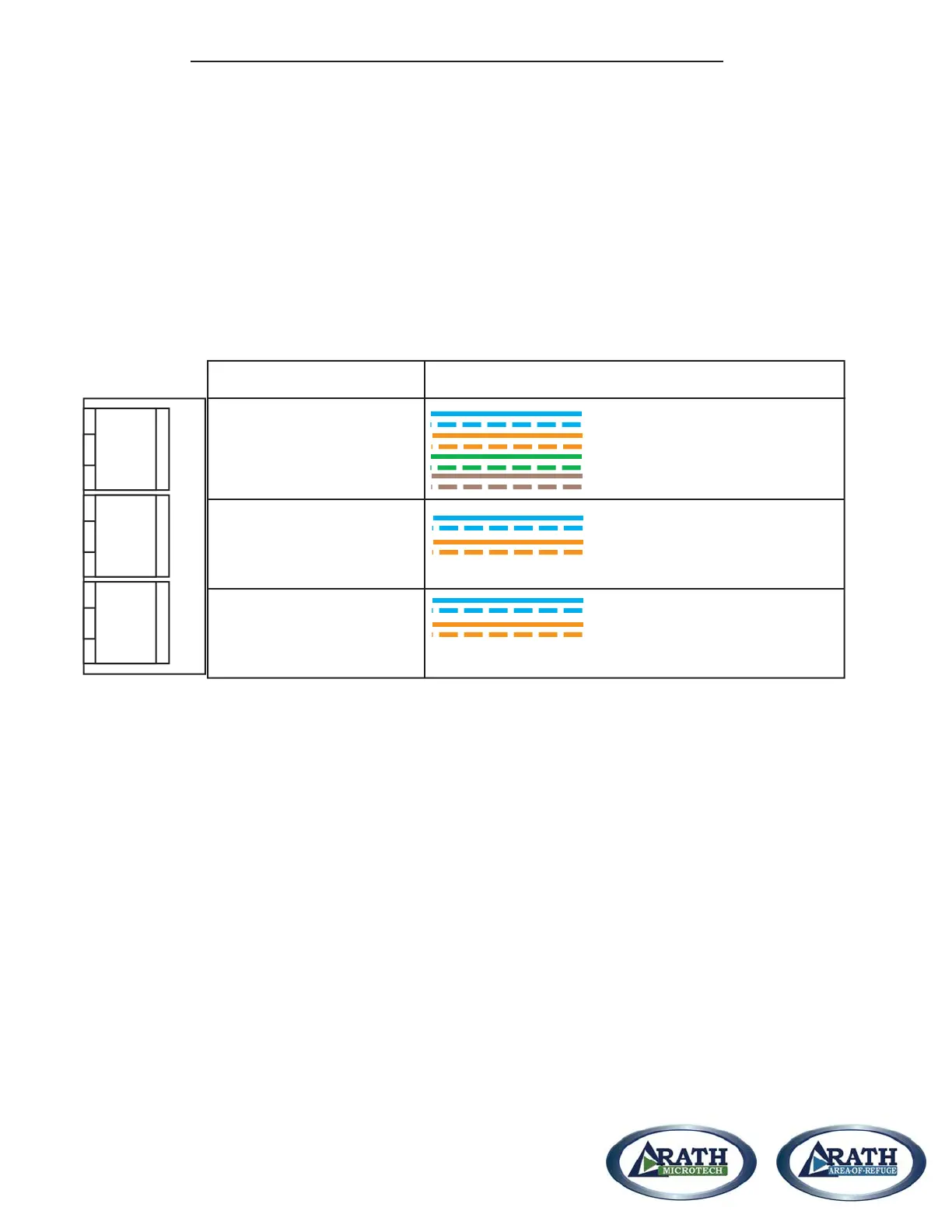

D. Plug RJ45 of wiring harness into appropriate port (See wiring diagram below)
Color
Extension Number
S01-S04
S05-S06
S07-S08
Blue - (Blue & White)
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
2001
2002
2003
2004
Blue - (Blue & White)
Orange - (Orange & White)
TELCO LINE 1
TELCO LINE 2
Blue - (Blue & White)
Orange - (Orange & White)
AOR COMMAND CENTER
SECONDARY AOR
COMMAND CENTER
(Optional)
(Connect to Red and Green of Phone Cord)
(Connect to Red and Green of Phone Cord)
(Connect to Red and Green of Phone Cord)
(Connect to Red and Green of Phone Cord)
www.rathmicrotech.com
www.area-of-refuge.com
pg. 6
For additional extensions on SLT ports follow scheme below:
2005: Blue, Blue-White
2006: Orange, Orange-White
2007: Green, Green-White
2008: Brown, Brown-White
2009: Blue, Blue-White
2010: Orange, Orange-White
2011: Blue, Blue-White
2012: Orange-Orange, White
2013: Blue, Blue-White
2014: Orange, Orange-White
2015: Green, Green-White
2016: Brown, Brown-White
2017: Blue, Blue-White
2018: Orange, Orange-White
2019: Blue, Blue-White
2020: Orange, Orange-White
2021: Blue, Blue-White
2022: Orange, Orange-White
2023: Green, Green-White
2024: Brown, Brown-White
2025: Blue, Blue-White
2026: Orange, Orange-White
2027: Blue, Blue-White
2028: Orange, Orange-White
2029: Blue, Blue-White
2030: Orange, Orange-White
2031: Green, Green-White
2032: Brown, Brown-White
2033: Blue, Blue-White
2034: Orange, Orange-White
2035: Blue, Blue-White
2036: Orange, Orange-White
*Refer to top of cards to see what type of port and how many extentions are off of them
