Installation
General Information
There are two critical components when installing a Sofia Insert Wood Pellet Fire: 1) Ensuring the wall cavity is
the necessary size and 2) ensuring relevant clearances to combustibles are adhered to both inside and outside
the cavity. Depending on the circumstances, you may also have to consider the use of a hearth, and the
installation of the support frame. The Sofia is typically installed into a masonry Cavity.

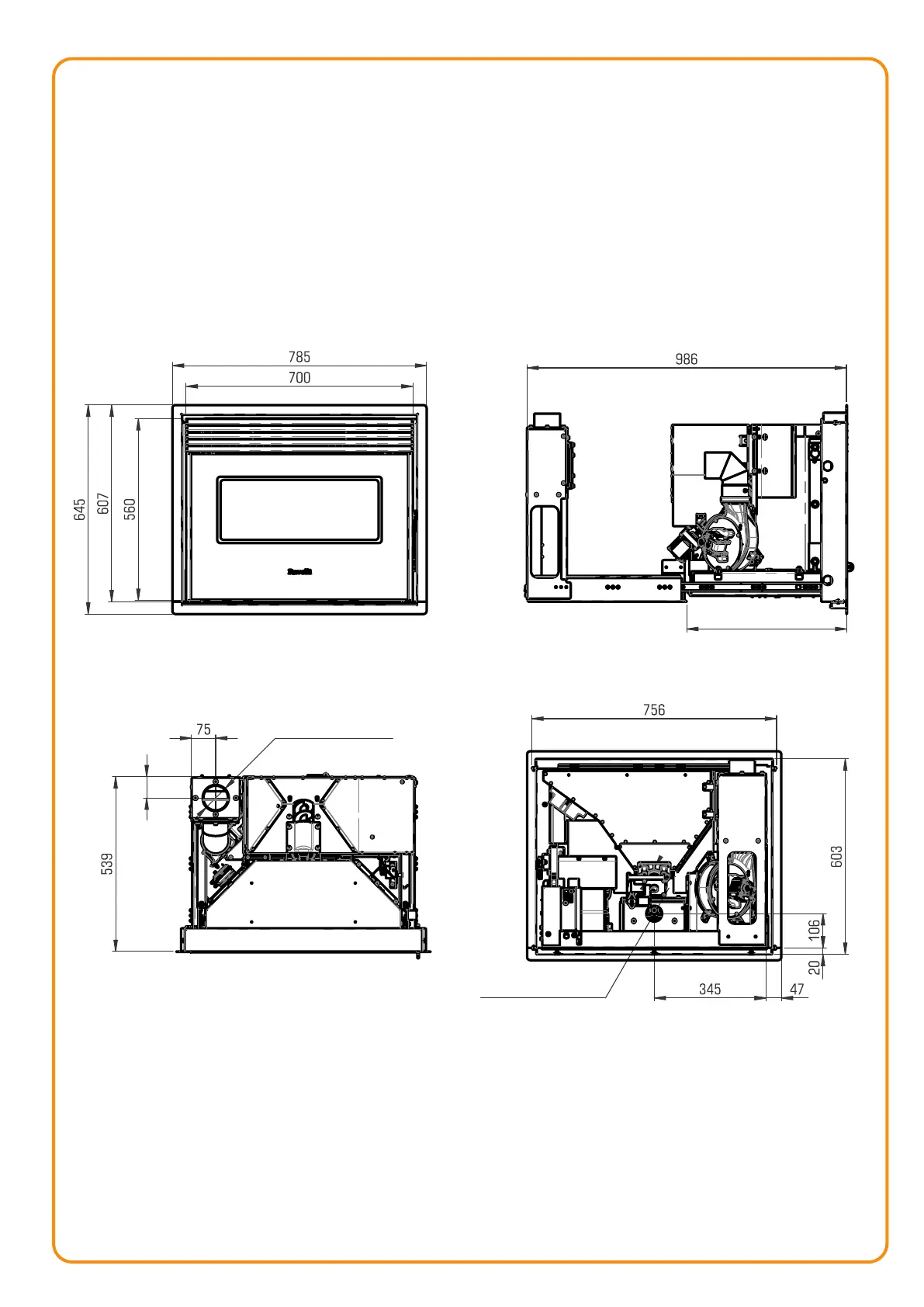

Dimensions – Sofia Insert & Built-In Heater
Refer to Safety Test ARS 22/3116 & 22/3112R1 for all clearances to combustible.
