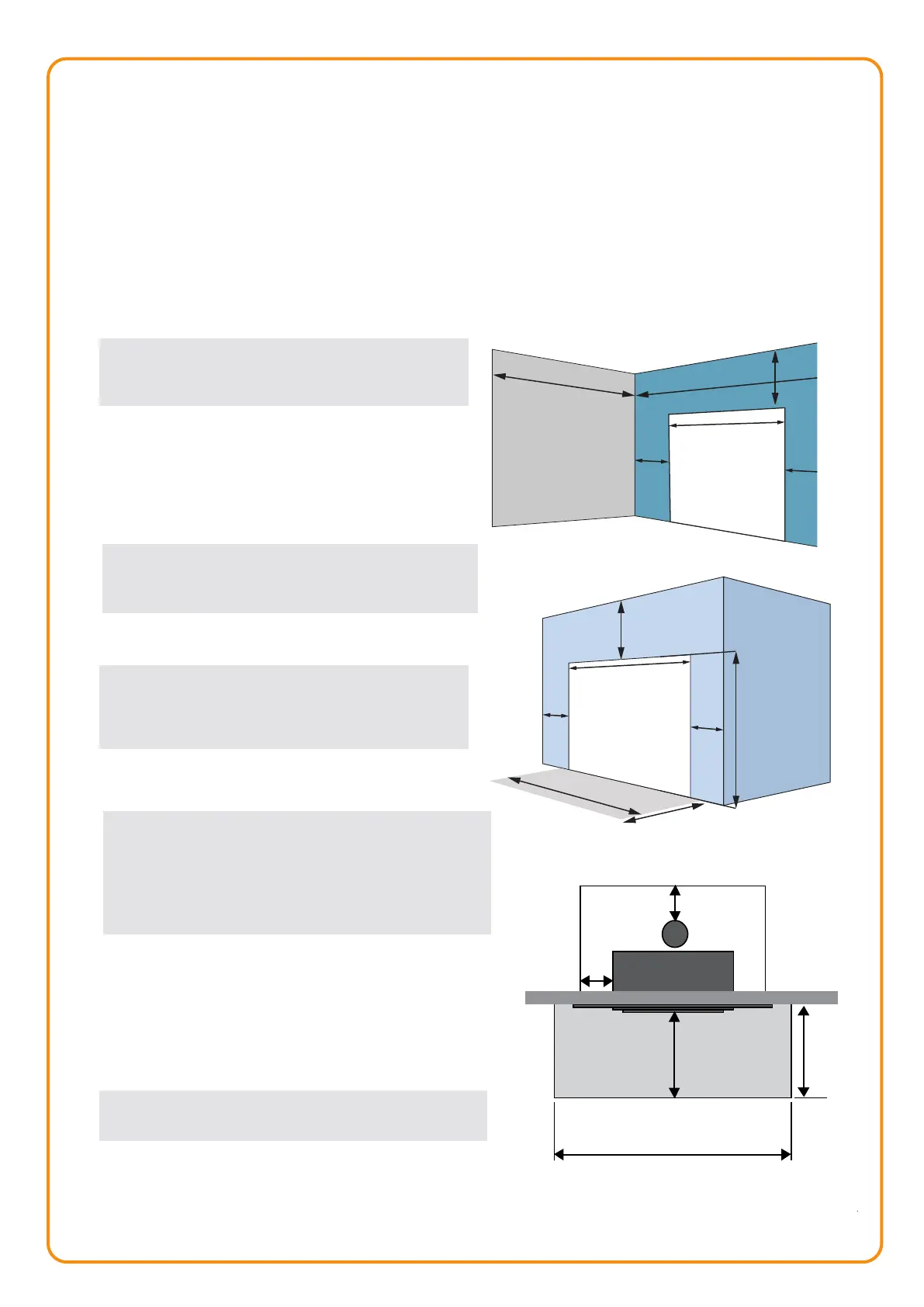

Installing into an existing cavity New-
Cavity Clearances to Combustibles
Masonry or Build
(F): from top of opening (inside) 275mm (min)
(G): from side of opening (outside)105mm (min)
(H): from top of opening (outside) 230mm (min)
(I): from side of opening (inside) 150mm (min)
As the Sofia Insert Wood Pellet Fire is typically installed
into a m asonry cavity, it can still be installed into a
compliant cavity that will house the fi re and the frame.
The front facia of the enclosure must be made of a
fireproof rated board (above 80°C) such as (but not
limited to) Promina, Micore, Supalux or Eterpan, and
this must
(A) Width: 1060mm (min)
(B) Depth: 5 75mm (min)*
*
Includes 100mm clearance from rear of fl ue spigot ,box
.swo l l a r o f a mm001 l l aw ssenkc i h t
dna
If this measurement is
less than 500mm, a custom surround will be required.
Ensure that extra depth required at ‘B’ is also added to the
hearth measurement “K”.
B
A
D
I
I
F
G
O
E
D
G
H
N
Wall Opening
(D) Width:
760 mm
(E) Height:
625mm
Additional Clearances to Combustibles
(K): from exhaust spigot to cavity wall 100mm
(L): from side of
fi re to cavity wall
150mm
(M): hearth depth from front of glass
150mm
N( ): hearth width
950mm
O( ): hearth depth morf llaw
195mm
WALL WALL WALL WALL WALL WALL WALL WALL
N
K
L
M
O
Built-in fi re clearances don’t apply in a non-combustible cavity. The
above clearance to combustibles on the flue are only applicable
within the fire cavity. Clearance outside this, eg at a ceiling/wall
thimble reverts to 25mm as per ARS fl ue test 05/1185.
If installing a fl oating hearth, ensure sufficient clearance is left below
the file to allow for installation of the chosen surround,
Surround Dimensions
Retro Surround
950mm (w) x 680mm (h) x 46mm (d)
extend to a minimum of 320mm above the top of the fi.re
Within the cavity, there must be a minimum of 320mm
clearance to combustibles above the fire, and a
minimum 600mm ga p between the top of the fire and
the ceiling of the cavity. The cavity also requires a
minimum of 2 x100cm
2
ventilation. (not required for
masonry cavity)
(Masonry - 740mm)
(Masonry - 600mm)
(Masonry - 510mm)
